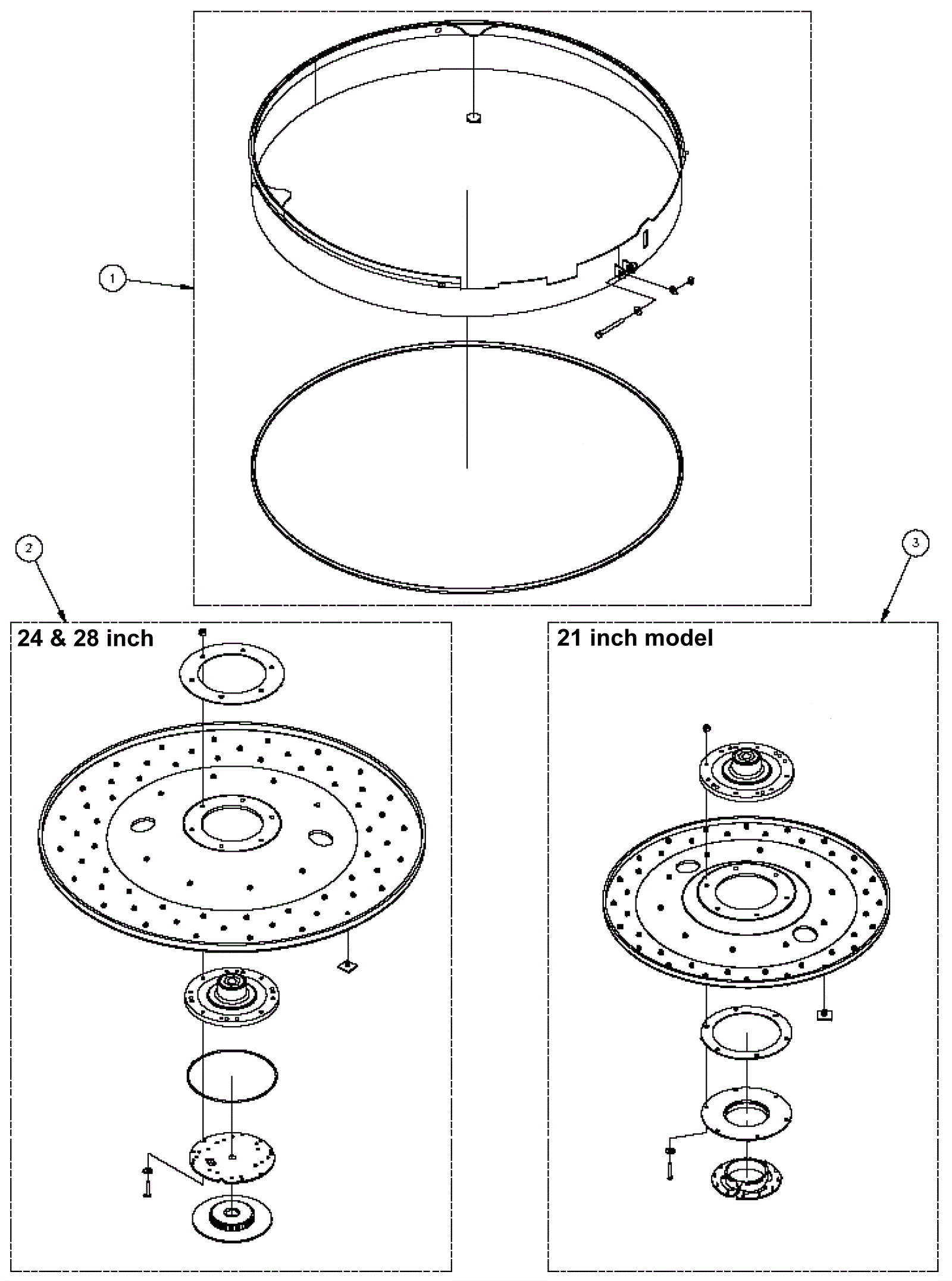

PE420BU Skirt and Pad Driver Assembly

#PartDescriptionPriceReqNotesAvailability
1a 154-0717 28 inch steel skirt assembly $164.54 1 (28 inch vac model) (includes 1d-g and 1h) ships same day
1b 154-0709 24 inch steel skirt assembly $329.05 1 (24 inch vac model) (includes 1d-1g and 1i) usually ships 4-15 days
1c 154-0710 21 inch steel skirt assembly $310.45 1 (21 inch vac model) (includes 1d-1g and 1j) usually ships 1-5 days
1d 154-0718 Felt dot $1.91 2 usually ships 4-15 days
1e 154-0781 Bolt 1/4-20 x 2 1/2 inch hex head tap $1.84 1 usually ships 4-15 days
1f 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
1g 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
1h 154-0466 Skirt edging (bottom) (sold by the foot) $9.61 9 ft (28 inch) ships same day
1i 154-0466 Skirt edging (bottom) (sold by the foot) $9.61 8 ft (24 inch) ships same day
1j 154-0466 Skirt edging (bottom) (sold by the foot) $9.61 7 ft (21 inch) ships same day
2a 154-0306 28 inch pad driver assembly $669.48 1 (28 inch) (includes 2c, 2e, 2f and 2h-2m) usually ships 4-15 days
2b 154-0534 24 inch pad driver assembly $566.26 1 (24 inch) (includes 2d, 2e, 2g and 2h-2m) usually ships 4-15 days
2c 154-0126 28 inch pad driver with studs $387.49 1 (28 inch) usually ships 4-15 days
2d 154-0557 24 inch pad driver with studs $284.76 1 (24 inch) usually ships 4-15 days
2e 154-0128 Flexi-disc $183.83 1 usually ships 4-15 days
2f 154-0127 Velcro stud $1.84 68 (28 inch) ships same day
2g 154-0127 Velcro stud $1.84 76 (24 inch) ships same day
2h 154-0312 Spacer ring for Center-Lok II $16.59 1 usually ships 4-15 days
2i 991-2201 Center-Lok II pad holder - right hand thread (black) $28.62 1 ships same day
2j 999-0124 Screw 1/4-20 x 1 1/4 button head socket cap plain finish $0.99 6 ships same day
2l 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
2m 154-0408 Pad holder stress relief ring $38.51 1 usually ships 4-15 days
2n 991-2202 Big mouth pad holder set (blue) $17.75 1 (NON-OEM) ships same day
2o 991-8577 Pad retainer $19.76 1 (NON-OEM) ships same day
3a 154-0729 21 inch pad driver assembly $507.08 1 (21 inch) (includes 3b-3i) ships same day
3b 154-0134 21 inch pad driver with studs $320.23 1 (21 inch) usually ships 4-15 days
3c 154-0128 Flexi-disc $183.83 1 usually ships 4-15 days
3d 154-0408 Pad holder stress relief ring $38.51 1 usually ships 4-15 days
3e 991-2206 Center-Lok 3 pad holder $35.50 1 ships same day
3f 999-0124 Screw 1/4-20 x 1 1/4 button head socket cap plain finish $0.99 6 ships same day
3g 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
3h 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 6 ships same day
3i 154-0127 Velcro stud $1.84 50 ships same day
