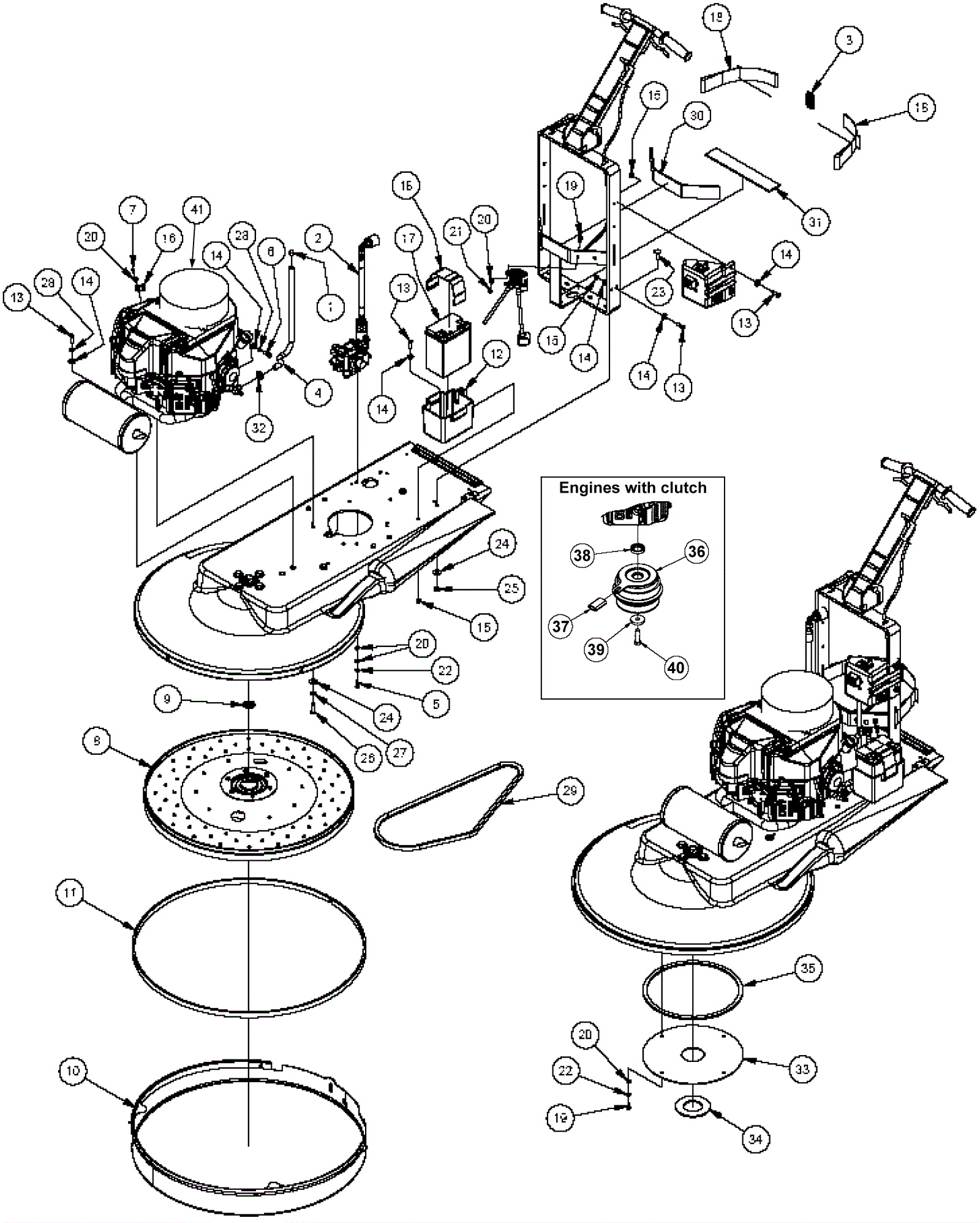

PE420BU Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-0038 Oil drain cap $2.29 1 usually ships 4-15 days
2 154-2347 Regulator assembly $718.48 1 ships same day
3 154-2330 Strap slide $6.04 1 ships same day
4 154-0037 Tubing 1/2 x 5/8 (clear) (sold by the foot) $2.33 1 ft usually ships 3-15 days
5 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 2 ships same day
6 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 1 ships same day
7 999-1449 Screw #10 x 1/2 truss head phillips stainless steel $0.99 1 usually ships 11-24 days
8a 154-0306 28 inch pad driver assembly $661.86 1 usually ships 4-15 days
8b 154-0534 24 inch pad driver assembly $559.80 1 usually ships 4-15 days
8c 154-0729 21 inch pad driver assembly $501.30 1 ships same day
9 154-0938 Spacer $41.02 1 usually ships 4-15 days
10a 154-0717 28 inch steel skirt assembly $153.30 1 ships same day
10b 154-0709 24 inch steel skirt assembly $325.30 1 usually ships 4-15 days
10c 154-0710 21 inch steel skirt assembly $306.91 1 usually ships 1-5 days
11a 154-0515 Felt for improved skirt design (sold by the foot) $5.06 9 ft (28 inch vac model) usually ships 4-15 days
11b 154-0515 Felt for improved skirt design (sold by the foot) $5.06 8 ft (24 inch vac model) usually ships 4-15 days
11c 154-0515 Felt for improved skirt design (sold by the foot) $5.06 7 ft (21 inch vac model) usually ships 4-15 days
12 154-1047 Battery tray $79.62 1 ships same day
13 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 5 ships same day
14 999-0024 Washer 5/16 flat stainless steel $1.34 7 ships same day
15 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
16 154-0110 Clamp $5.61 1 usually ships 1-5 days
17 162-0007 12V 12Ah sealed battery $124.80 1 ships same day
18 154-1039 Tank strap $41.71 3 ships same day
19 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 6 ships same day
20 999-0016 Washer 1/4 flat plain finish $0.99 10 ships same day
21 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
22 154-0600 Lock washer $2.29 6 usually ships 4-15 days
23 999-0232 Screw 3/8-16 x 1 1/4 carriage head grade 5 zinc $0.99 3 ships same day
24 999-0032 Washer 3/8 USS flat plain finish $2.42 7 ships same day
25 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 3 ships same day
26 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
27 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
28 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
29a 991-0021 BX56 belt $49.97 1 (28 inch) ships same day
29b 154-1070 BX49 belt $40.05 1 (24 inch) usually ships 1-5 days
29c 991-0001 BX46 belt $45.03 1 (21 inch) ships same day
29d 991-8541 BX-57 belt $23.10 1 (28 inch) (after SN 78741) usually ships 3-5 days
30 992-0001 Velcro loop (sold by the inch) $0.75 15 in usually ships 4-15 days
31 992-0001 Velcro loop (sold by the inch) $0.75 12 in usually ships 4-15 days
32 154-0036 Plastic hose clamp $6.27 2 usually ships 4-15 days
33 154-0398 Pulley cover $88.54 1 usually ships 4-15 days
34 154-0400 Spindle seal $18.61 1 usually ships 4-15 days
35 154-0401 Foam seal $13.86 1 usually ships 4-15 days
36 154-0008 Electric clutch assembly $361.20 1 (models with clutch) usually ships 4-15 days
37 154-0015 Neoprene tubing (sold by the inch) $41.97 1 (models with clutch) usually ships 4-15 days
38 154-2350 Upper clutch spacer $30.06 1 (models with clutch) usually ships 1-5 days
39 154-0016 Bottom clutch spacer $19.64 1 (models with clutch) ships same day
40 999-0208 Bolt 7/16-20 x 1 1/2 hex head grade 5 zinc plated $0.99 1 (models with clutch) ships same day
41a 154-3442 Dust bonnet $60.60 1 usually ships 4-15 days
41b 991-9014 Kawasaki dust bonnet $20.87 1 ships same day
N/S 154-3567 Clutch wiring harness $49.39 (models with clutch) usually ships 4-15 days
