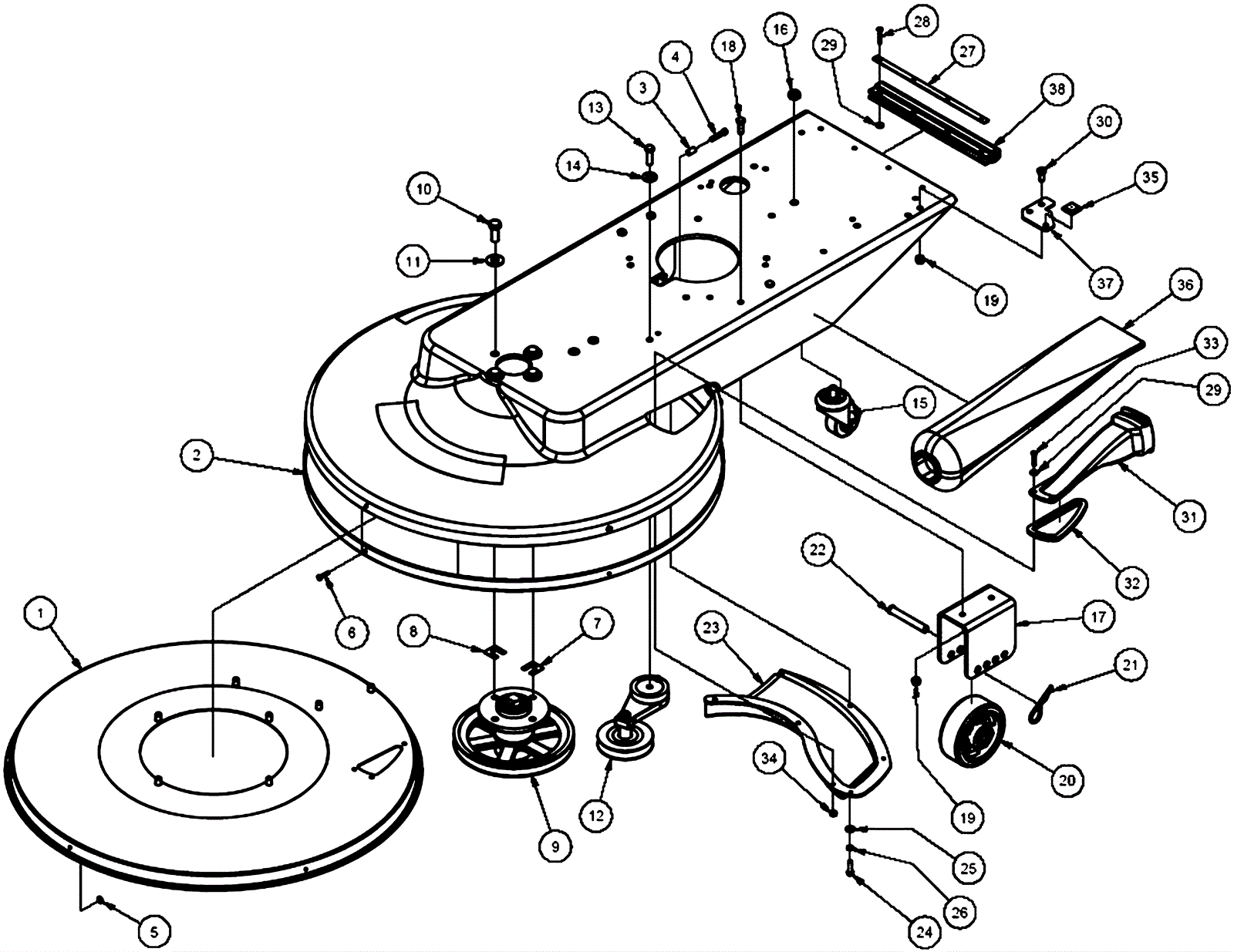

PE420BU Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1a 154-2339 21 inch shroud liner $302.41 1 usually ships 1-5 days
1b 154-0386 24 inch shroud liner $371.28 1 usually ships 1-5 days
1c 154-0374 28 inch shroud liner $279.46 1 usually ships 1-5 days
2a 992-0002 Velcro hook (sold by the inch) $7.84 74 in (21 inch) ships same day
2b 992-0002 Velcro hook (sold by the inch) $7.84 85 in (24 inch) ships same day
2c 992-0002 Velcro hook (sold by the inch) $7.84 98 in (28 inch) ships same day
3 154-0719 Steel bushing $21.74 1 usually ships 4-15 days
4 154-0720 Screw 1/4-20 x 1 1/4 socket head with loctite $4.07 1 usually ships 4-15 days
5 999-0998 Washer #10 flat stainless steel $0.99 5 ships same day
6 154-2340 Pop rivet $2.29 5 usually ships 1-5 days
7 154-2324 1/32 inch shim $1.03 1 ships same day
8 154-2325 1/16 inch shim $1.15 1 ships same day
9a 154-0671 Spindle with 6 3/4 inch pulley $363.44 1 (21 inch) usually ships 4-15 days
9b 154-0394 Spindle with 7 1/4 inch pulley $386.41 1 (24 inch) usually ships 4-15 days
9c 154-0123 RETRO KIT - Spindle w/ 9.25 inch pulley & belt $447.32 1 (28 inch) (before SN 78741) ships same day
9d 154-3526 Spindle with 9.25 inch pulley $402.07 1 (28 inch) (after SN 78741) usually ships 4-15 days
10 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 4 ships same day
11 999-0033 Washer 7/16 SAE flat $0.99 4 ships same day
12a 154-0024 Idler belt tensioner with v-groove pulley $161.56 1 (OEM) ships same day
12b 991-8595 4 inch idler pulley $45.95 1 (NON-OEM) (pulley only) ships same day
13 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.25 1 ships same day
14 999-0032 Washer 3/8 USS flat plain finish $2.42 1 ships same day
15 154-1055 Caster wheel $75.16 1 usually ships 4-15 days
16 999-0050 Nut 1/2-13 hex jam plain finish $0.99 1 ships same day
17 154-2341 Wheel bracket $98.23 2 usually ships 4-15 days
18 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
19 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 6 ships same day
20a 154-1045 Wheel $74.54 2 usually ships 4-15 days
20b 991-8578 Wheel with ball bearing 5 x 2 inch $28.19 2 usually ships 5-16 days
21 997-2515 Cotter pin $0.99 2 ships same day
22 154-0754 Clevis pin $14.00 2 usually ships 4-15 days
23a 154-0404 21 inch vacuum scoop $91.45 1 usually ships 1-5 days
23b 154-0712 24 inch vacuum scoop $90.92 1 usually ships 1-5 days
23c 154-0373 28 inch vacuum scoop $124.16 1 usually ships 4-15 days
24 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 3 ships same day
25 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
26 154-0600 Lock washer $2.29 3 usually ships 4-15 days
27 154-2342 Bumper strap $25.59 1 usually ships 1-5 days
28 154-2343 Pop rivet $4.07 4 usually ships 1-5 days
29 999-0998 Washer #10 flat stainless steel $0.99 7 ships same day
30 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 2 ships same day
31 154-0371 Dust tube $177.18 1 ships same day
32 154-0403 Dust tube seal $11.84 1 ships same day
33 999-1230 Screw 10-24 x 1 hex head stainless steel $3.25 3 usually ships 1-5 days
34 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 3 ships same day
35 154-0127 Velcro stud $2.29 1 ships same day
36a 154-0388 Vacuum bag $68.10 1 (For units with a plastic tube.) ships same day
36b 154-3693 12 inch dust bag $60.58 1 (For units with a metal tube.) usually ships 4-15 days
36c 154-3693 12 inch dust bag $60.58 1 (For units at WalMart.) usually ships 4-15 days
37 154-2344 Support bracket $61.07 1 usually ships 1-5 days
38 154-2345 12 inch bumper $29.81 1 usually ships 1-5 days
N/S 154-5162 Grommet $14.74 1 usually ships 4-15 days
