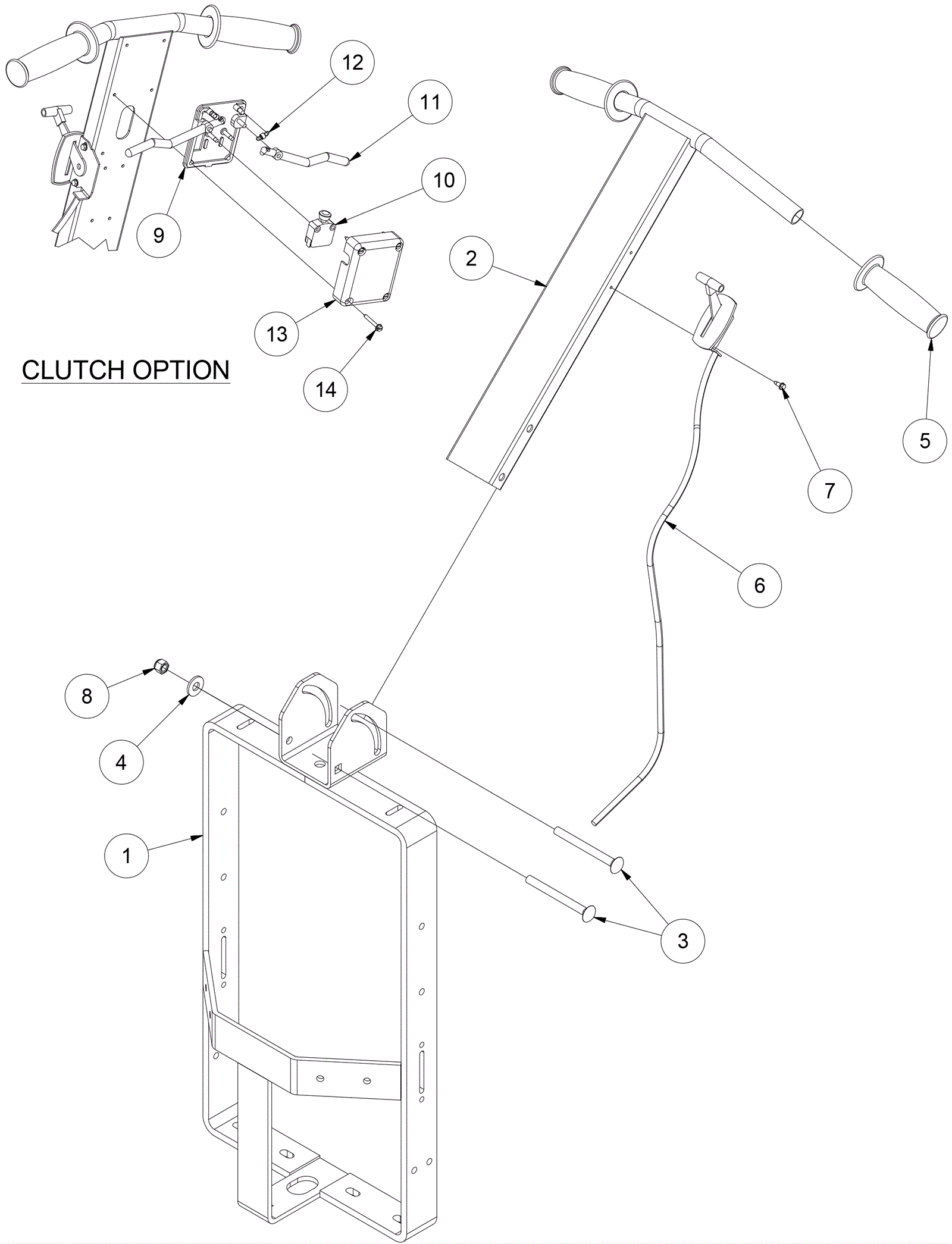

Handle Assembly

#PartDescription ReqNotesAvailability
1 154-2327 Bottom handle weldment 1
2 154-2328 Top handle weldment 1
3 999-0242 Screw 3/8-16 x 4 carriage head grade 5 zinc 2
4 999-0032 Washer 3/8 USS flat plain finish 2
5a 154-2329 Handle grip 2
5b 991-8571 Handle grip 2 (NON-OEM)
6a 154-1043 Throttle cable 1
6b 991-9254 THROTTLE CABLE (RIGHT) 1 (NON-OEM)
7 999-0576 Screw 8-18 x 1/2 pan head phillips self-drilling ss 2
8 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
9 154-0054 Switch box base 1 (with optional clutch)
10 154-2346 16amp micro switch assembly 1 (with optional clutch)
11 154-0055 Switch box lever 2 (with optional clutch)
12 154-0056 Switch box spring 2 (with optional clutch)
13 154-0060 Switch box cover 1 (with optional clutch)
14 999-0233 Screw 8 x 1 1/4 hex washer head slotted zinc plated 4 (with optional clutch)
