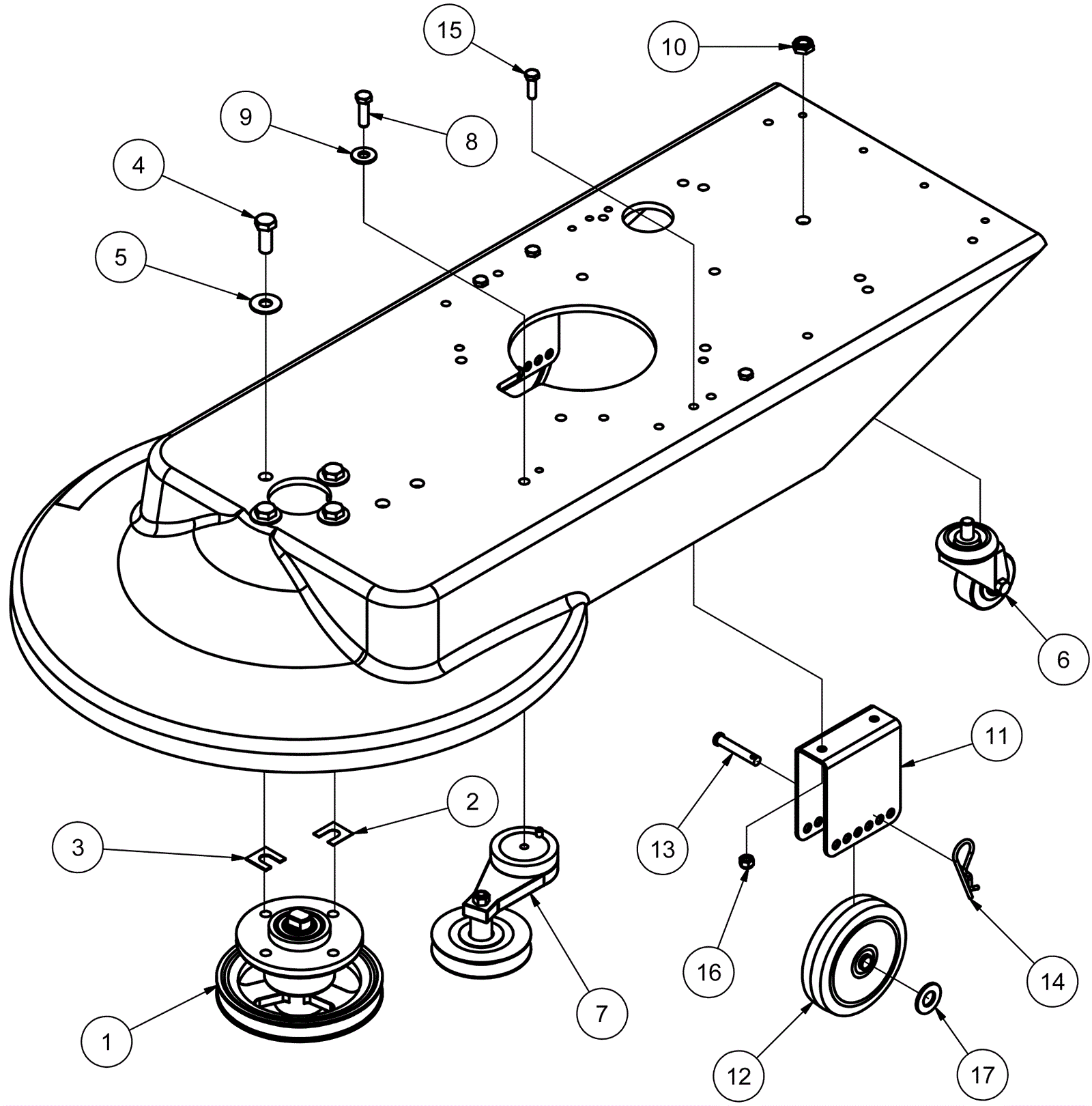

PE400BU Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1a 154-0671 Spindle with 6 3/4 inch pulley $363.44 1 (21 inch) usually ships 4-15 days
1b 154-3526 Spindle with 9.25 inch pulley $402.07 1 (28 inch) usually ships 4-15 days
2 154-2324 1/32 inch shim $1.03 1 ships same day
3 154-2325 1/16 inch shim $1.15 1 ships same day
4 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 4 ships same day
5 999-0033 Washer 7/16 SAE flat $0.99 4 ships same day
6 154-1055 Caster wheel $75.16 1 usually ships 4-15 days
7a 154-0024 Idler belt tensioner with v-groove pulley $161.56 1 (OEM) ships same day
7b 991-8595 4 inch idler pulley $45.95 1 (NON-OEM) (pulley only) ships same day
8 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.25 1 ships same day
9 999-0032 Washer 3/8 USS flat plain finish $2.42 1 ships same day
10 999-0050 Nut 1/2-13 hex jam plain finish $0.99 1 ships same day
11a 154-2341 Wheel bracket $98.23 2 usually ships 4-15 days
11b 154-2326 One piece wheel bracket $61.82 2 ships same day
12a 154-1053 5 inch wheel $34.97 2 ships same day
12b 991-9255 WHEEL, 5 inch, PERFORMA, FLAT TREAD, GREY $40.40 2 (NON-OEM) usually ships 5-16 days
13 154-0285 Clevis pin $5.89 2 usually ships 4-15 days
14 997-2515 Cotter pin $0.99 2 ships same day
15 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
16 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
17 154-3568 Washer $2.29 4 usually ships 4-15 days
