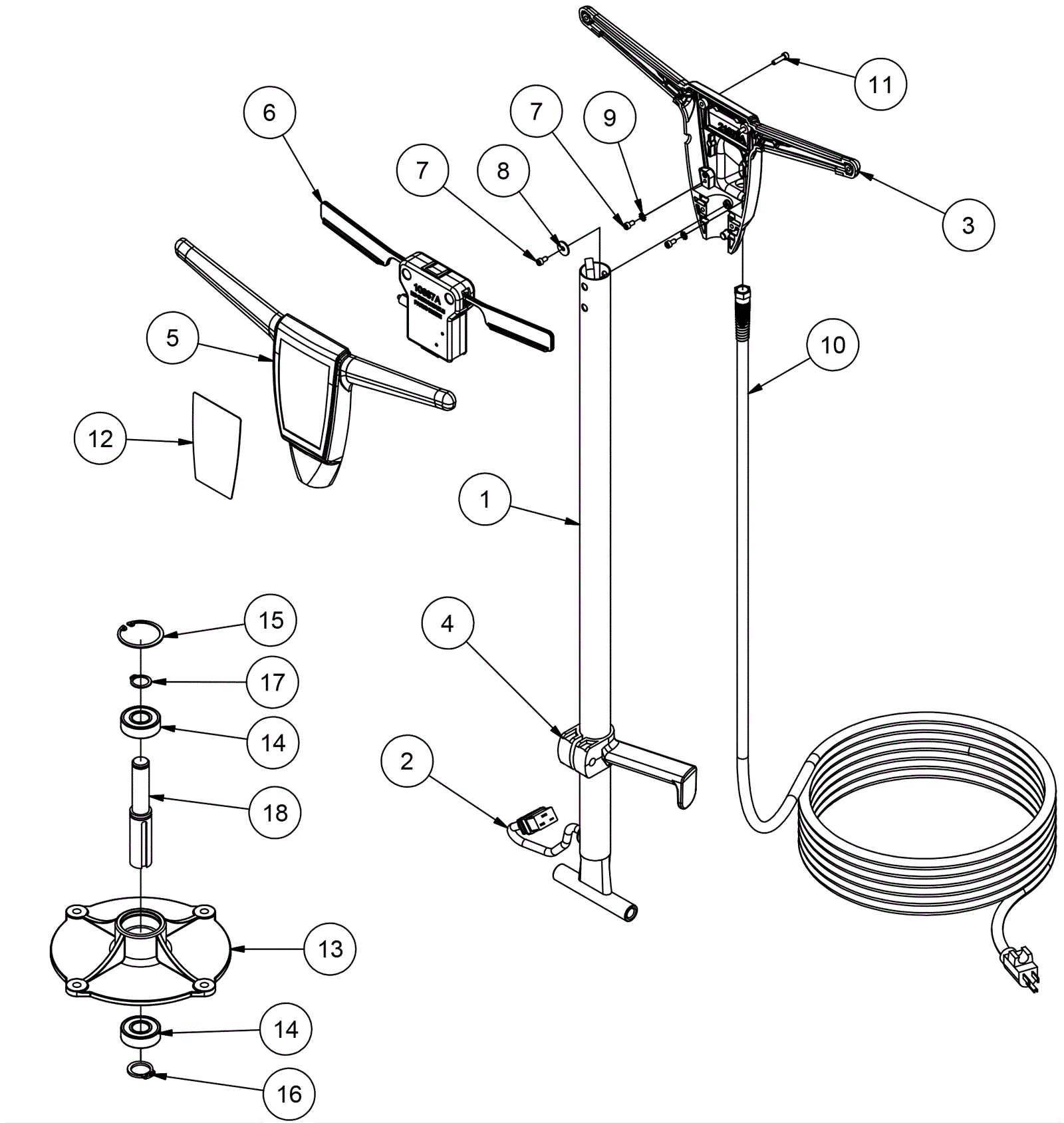

225BU Handle Assembly

#PartDescriptionPriceReqNotesAvailability
2a 163-0203 Interconnect cord $30.25 1 usually ships 4-15 days
2b 154-5193 Interconnect export cord $19.72 1 usually ships 4-15 days
3 270-0145 Rear handle $133.97 1 usually ships 16-41 days
4 170-1517 Handle clamp $77.49 1 ships same day
5 270-0143 Front handle $86.93 1 ships same day
6 270-0077 Switch assembly $116.67 1 ships same day
7 999-1276 Screw 10-32 x 3/8 hex head stainless steel $0.99 3 ships same day
8 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
9 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
10a 154-5173 50 foot power cord $204.02 1 usually ships 4-15 days
10b 991-5005 14/3 replacement power cord 50 foot (yellow) $86.81 1 (NON-OEM) ships same day
10c 991-5001 14/3 extension cord 50 foot (yellow) $82.58 1 (NON-OEM) ships same day
11 999-1275 Screw 10-32 x 3/4 hex head stainless steel $1.23 6 ships same day
12 154-1703 Handle decal $11.73 1 usually ships 4-15 days
13 154-2798 Front spindle bearing housing $75.92 1 usually ships 4-15 days
14 270-0808 Bearing $9.79 2 usually ships 4-15 days
15 154-2799 Internal retaining ring $2.98 1 usually ships 4-15 days
16 154-0243 Retaining ring $1.67 1 usually ships 1-5 days
17 154-3906 Retaining ring $1.18 1 usually ships 4-15 days
18 154-2800 Front spindle shaft $69.64 1 usually ships 4-15 days
N/S 154-5191 Pigtail $169.27 1 (2000 rpm model) usually ships 4-15 days
N/S 154-5192 Power cord $132.21 1 (2000 rpm model) usually ships 4-15 days
