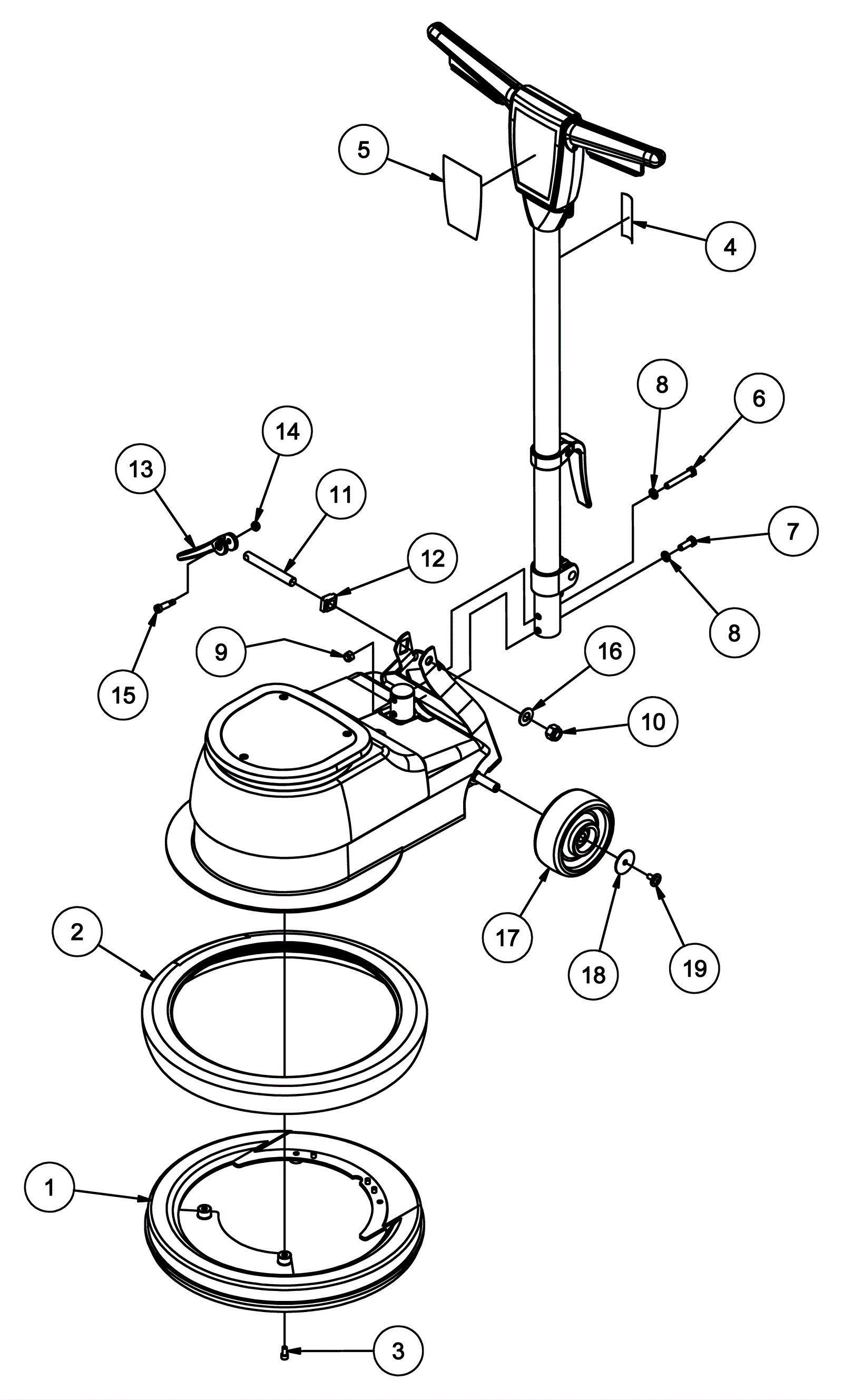

Main Assembly

#PartDescription ReqNotesAvailability
1 170-5657 FM1700 brush shield 1
2 154-3995 Brush bumper 1
3 170-4512 Socket set 1/4 x 20 x 1/2 4
4 154-3996 Prop 65 decal 1
5 154-3997 Handle decal 1
6 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated 1
7 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated 1
8 154-3957 Washer 5/16 inch lock 2
9 154-3956 Nut 5/16 inch lock 1
10 154-3998 Nut 1/2 inch lock 1
11 170-5586 Cam lock bolt 1
12 170-6224 Guide handle lock 1
13 170-5557 Cam locking handle 1
14 170-0465 Nut 1/4-20 ESNA heavy jam 1
15 154-4000 Bolt 5/16 x 3/4 shoulder 1
16 170-5602 Washer 1
17 154-4001 Wheel 5 x 2 inch 2
18 154-4002 Retainer washer 2
19 154-4003 36V battery charger 2
