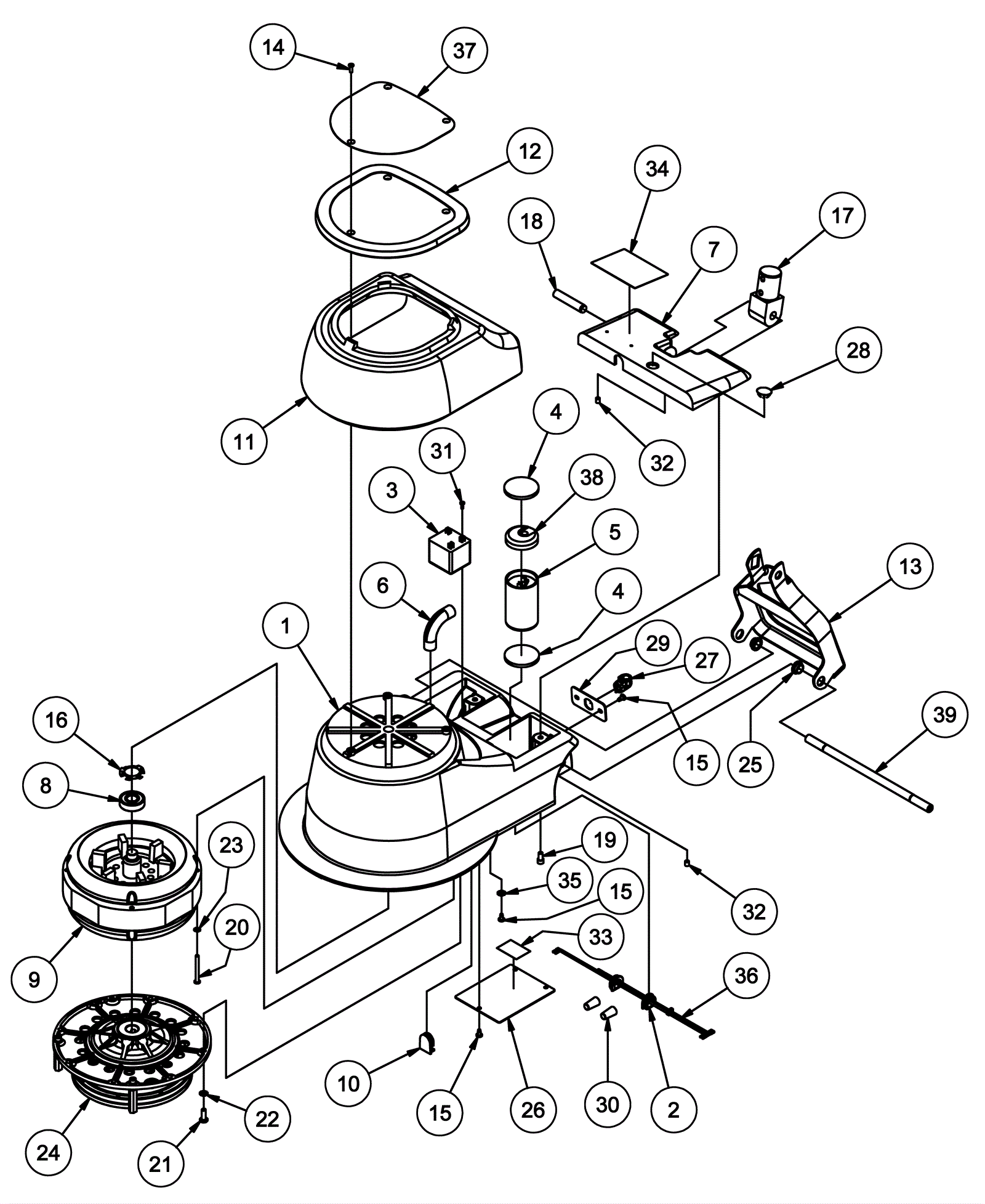

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
154-3970
|
Main housing |
1 |
|
|
2 |
170-5611
|
Bushing |
2 |
|
|
3 |
170-5608
|
Motor relay 3/4 hp - 1 1/2 hp FM 2300 |
1 |
|
|
4 |
154-3972
|
Capacitor cushion |
2 |
|
|
5 |
170-0491
|
115V capacitor |
1 |
|
|
6 |
154-3973
|
Elbow insulator |
1 |
|
|
7 |
170-5604
|
Main housing cover |
1 |
|
|
8 |
170-0321
|
Front end bearing |
1 |
|
|
9 |
154-3975
|
Field and rotor kit |
1 |
|
|
10 |
154-3976
|
FM plug |
1 |
|
|
11 |
154-3977
|
Main housing bumper |
1 |
|
|
12 |
170-5631
|
Drip Cover |
1 |
|
|
13 |
154-3979
|
Adjusting arm weldment |
1 |
|
|
14 |
154-3946
|
Screw #8 x 1/2 inch |
3 |
|
|
15 |
270-8038
|
Screw 10-24 x 3/8 self tapping pan head phillips |
6 |
|
|
16 |
170-5671
|
Load Spring |
1 |
|
|
17 |
154-3955
|
Handle tube tongue |
1 |
|
|
18 |
154-3981
|
Pin handle pivot |
1 |
|
|
19 |
170-4512
|
Socket set 1/4 x 20 x 1/2 |
5 |
|
|
21 |
154-3983
|
Screw 1/4 x 3/4 pan head |
8 |
|
|
22 |
154-3930
|
Washer 1/4 inch star lock |
8 |
|
|
23 |
999-0311
|
Washer #10 external star lock zinc plated |
4 |
|
|
24 |
154-3984
|
Gear unit assembly |
1 |
|
|
25 |
170-5613
|
Bushing Link Arm |
2 |
|
|
26 |
154-3986
|
Main bottom cover |
1 |
|
|
27 |
170-5590
|
Strain relief |
1 |
|
|
28 |
154-3987
|
25/32 inch button plug |
1 |
|
|
29 |
154-3988
|
Strain relief plate |
1 |
|
|
30 |
170-5584
|
Connector |
2 |
|
|
31 |
999-1602
|
Screw #6 x 3/8 pan head stainless steel |
1 |
|
|
32 |
154-3990
|
Screw 1/4 x 5/16 set |
2 |
|
|
33 |
170-5620
|
Wiring Diagram |
1 |
|
|
34 |
373-3016
|
Decal |
1 |
|
|
35 |
154-3992
|
Washer 3/16 star |
1 |
|
|
36 |
154-3993
|
Capacitor wiring harness |
1 |
|
|
38 |
170-5627
|
Capacitor Cover |
1 |
|
|
39 |
154-3994
|
Wheel shaft |
1 |
|
|
