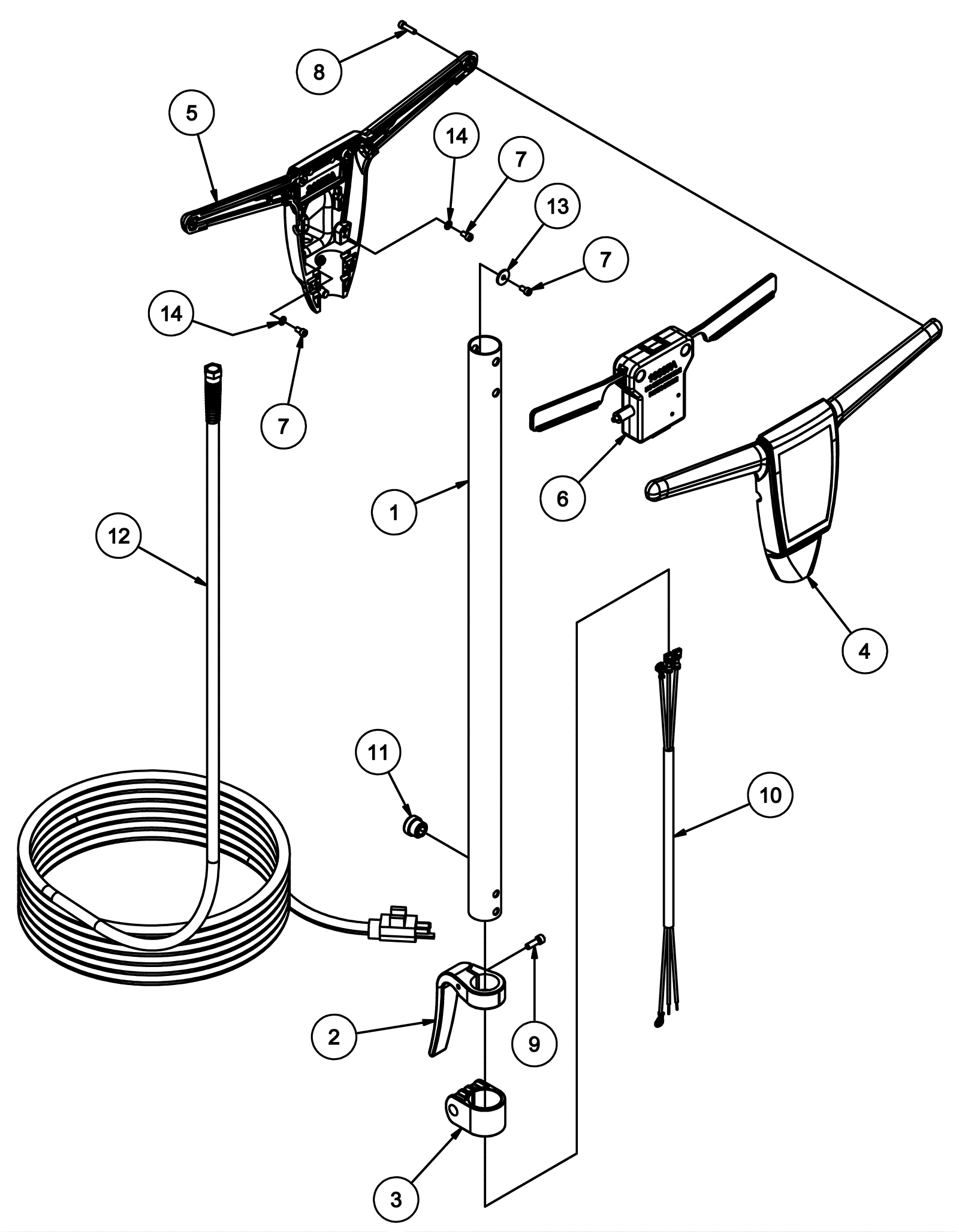

FM1700 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-3965 Tube handle $77.88 1 usually ships 12-17 days
3 170-5553 Handle tube clamp $21.11 1 ships same day
4 270-0143 Front handle $100.65 1 ships same day
5 270-0145 Rear handle $151.35 1 ships same day
6 270-0077 Switch assembly $132.32 1 ships same day
7 999-1276 Screw 10-32 x 3/8 hex head stainless steel $0.99 3 ships same day
8 999-1275 Screw 10-32 x 3/4 hex head stainless steel $1.23 6 ships same day
9 170-5576 Screw 1/4-20 x 3/4 socket cap $1.65 1 usually ships 6-8 days
10 154-3968 Interconnecting cord $27.72 1 usually ships 12-17 days
12 154-3969 120V cord assembly (gray) $215.75 1 usually ships 12-17 days
13 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
14 999-0089 Washer #10 internal star lock zinc plated $0.99 2 ships same day
