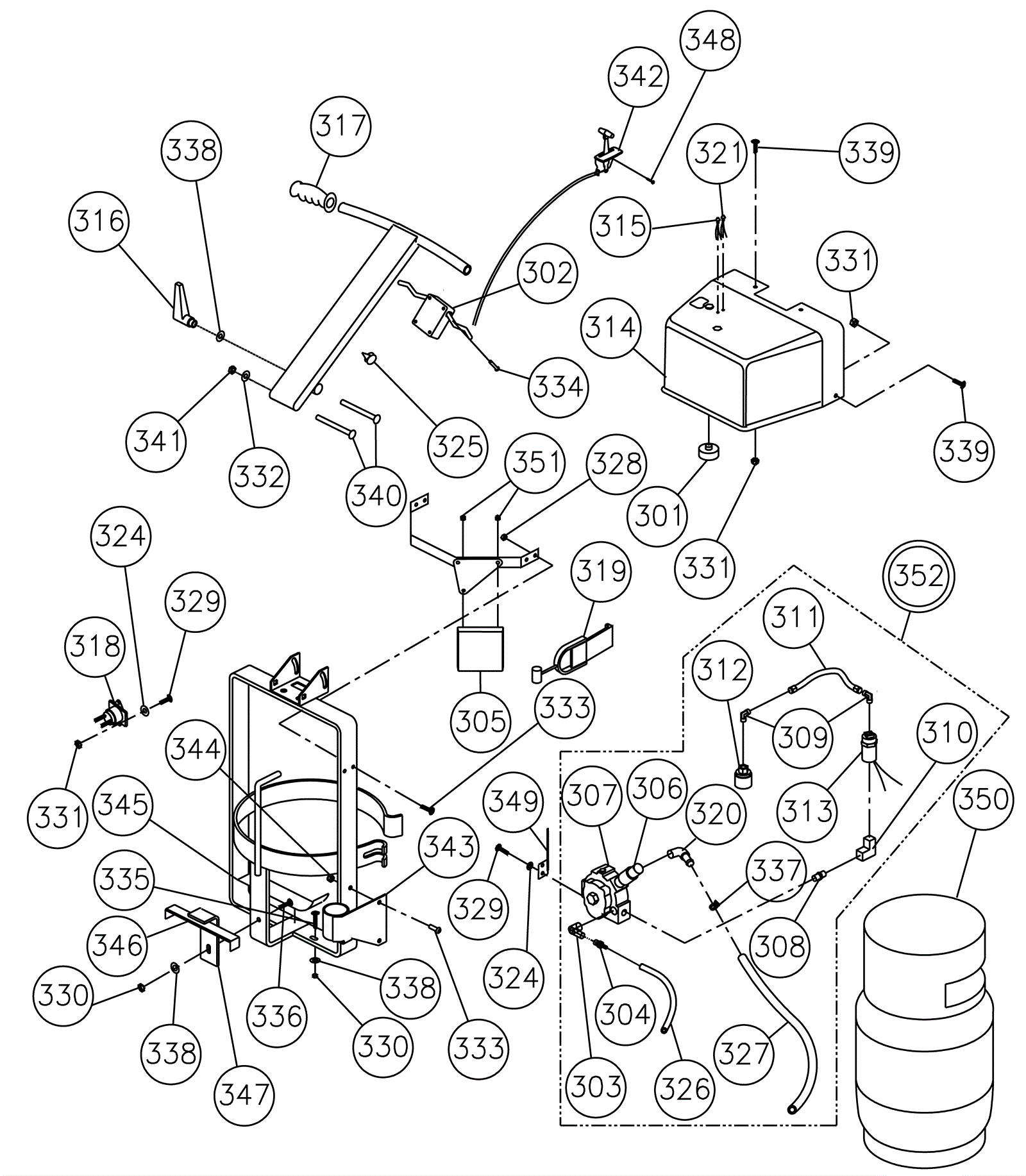

Handle Assembly

#PartDescription ReqNotesAvailability
301 154-0319 Starter switch with ground prong (2 keys) 1
302 154-0155 Switch box assembly 1
303 154-0702 Fitting 1/8 x 1/8 inch 1
304 154-0228 Hosebarb 1/8 x 1/4 inch 2
305 154-0259 Safe sense module for Kawasaki (OBSOLETE) 1
306 154-0891 Fuel adjustment fitting 1
307 991-6001 Fuel regulator (T60) 1
308 154-0090 Fitting (regulator to fuel lock) 1
309 154-0066 Fitting 49 x 6 (regulator to fuel lock) 2
310 154-0169 Female brass fitting 1
311a 154-0098 12 inch regulator hose 1
311b 154-0206 12 inch regulator hose with fittings kit 1
312 154-1076 Female quick coupler 1
313 154-1052 12V fuel lock off 1
314 154-3396 Cover (OBSOLETE) 1
315 154-0635 Indicator light (green) (OBSOLETE) 1
316 154-0071 Adjustable handle lever 1
317a 154-0077 Handle grip 2
317b 991-8571 Handle grip 2 (NON-OEM)
318 154-0279 Starter solenoid (remote mounted) 1
319 154-1074 Toggle tank strap for propane buffers 1
320 154-3414 90 degree hosebarb (OBSOLETE) 1
321 154-0231 Fault light (red) (OBSOLETE) 1
324 999-0238 Washer 1/4 internal star lock zinc plated 4
325 154-0154 Cable clip (OBSOLETE) 2
326 154-0351 Vacuum hose (sold by the foot) 3 ft
327 154-0320 Fuel line (sold by the foot) 3 ft
328 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
329 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish 1
330 999-0188 Nut 3/8-16 nylon insert lock zinc plated 5
331 999-0152 Nut 1/4-20 nylon insert lock zinc plated 6
332 999-0032 Washer 3/8 USS flat plain finish 1
333 999-0225 Screw 5/16-18 x 1 button head socket plain finish 4
334 999-0233 Screw 8 x 1 1/4 hex washer head slotted zinc plated 4
335 999-0232 Screw 3/8-16 x 1 1/4 carriage head grade 5 zinc 5
336 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 1
337 154-0036 Plastic hose clamp 2
338 999-0024 Washer 5/16 flat stainless steel 6
339 999-0229 Screw 1/4-20 x 1 button head socket plain finish 2
340 999-0242 Screw 3/8-16 x 4 carriage head grade 5 zinc 2
341 999-0234 Nut 3/8-16 acorn nickel plated 1
342 160-0006 48 inch throttle control cable 1
343 154-3403 Bracket (OBSOLETE) 1
344 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
345 992-0001 Velcro loop (sold by the inch) 46 in
346 N/A Not available 2 ft Foam seal
347 154-3418 Battery retainer (OBSOLETE) 1
348 154-0612 Screw #8 x 3/4 drill kwik 2
349 154-3419 Regulator bracket (OBSOLETE) 1
350 161-0003 Aluminum propane tank 1
351 999-0239 Nut 10-32 k-lock zinc plated 2
352 154-0341 Regulator assembly 1 (includes 303, 304, 306-313, 320, 326, 327 and 337)
