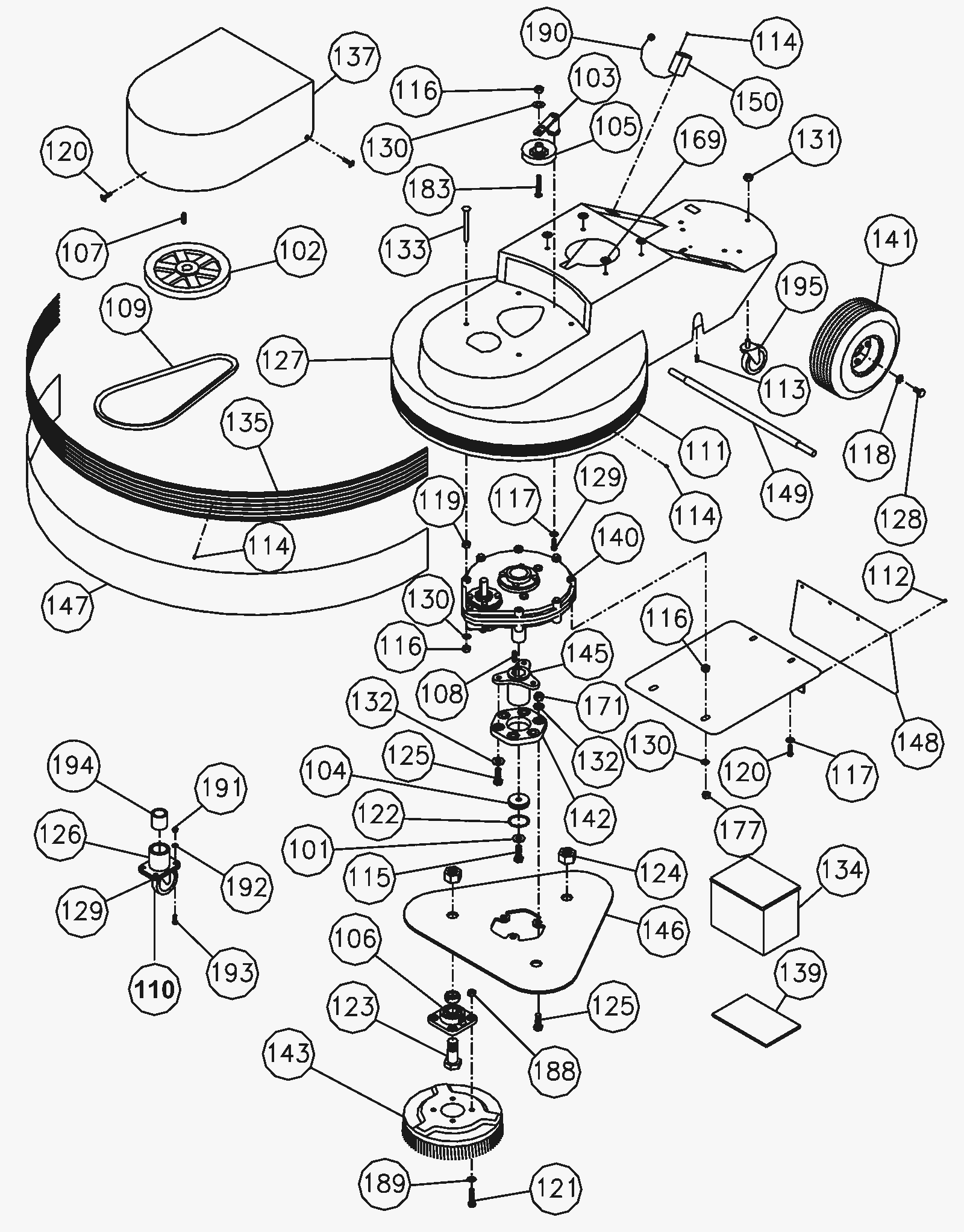

Deck Assembly

#PartDescription ReqNotesAvailability
101 999-0671 Washer M10 split lock plain finish 1
102 154-0415 Pulley (OBSOLETE) 1
103 N/A Not available 1 Belt tensioner
104 154-3390 Grooved spacer (OBSOLETE) 1
105 154-0275 Metal v-groove pulley for tensioners (24 inch) (OBSOLETE) 1
106 154-3391 Flanged bearing (OBSOLETE) 3
107 154-0549 Square keyway 1
108 154-3392 Drive hub keyway (OBSOLETE) 1
109 991-0009 BX51 belt 1
110 N/A Not available 1 Caster wheel
111 992-0001 Velcro loop (sold by the inch) 7 ft
112 154-3395 Pop rivet 4
113 999-0157 Screw 5/16-18 x 3/8 cup point socket set alloy plain finish 2
114 154-0018 Pop rivet 18
115 154-0017 Screw M10 x 35mm (OBSOLETE) 1
116 999-0188 Nut 3/8-16 nylon insert lock zinc plated 7
117 999-0016 Washer 1/4 flat plain finish 3
118 999-0032 Washer 3/8 USS flat plain finish 12
119 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
120 999-0383 Screw 1/4-20 x 1/2 button head socket cap plain finish 5
121 999-1545 Screw 7/16-14 x 1 3/4 hex head stainless steel 13
122 154-3397 O-ring 1
123 154-3398 Screw 1-8 x 3 (OBSOLETE) 3
124 154-3399 Nut 1-8 hex (OBSOLETE) 3
125 154-3400 Screw M14 x 45mm hex head (OBSOLETE) 3
126 N/A Not available 1 Caster mount
127 154-3402 24 inch deck (OBSOLETE) 1
128 999-0882 Screw 3/8-16 x 3/4 hex head hot dipped galvanized 2
129 999-1147 Bolt M6-1 x 40mm hex head stainless steel 1
130 999-0024 Washer 5/16 flat stainless steel 5
131 999-0050 Nut 1/2-13 hex jam plain finish 1
132 999-0972 Washer M14 flat 3
133 999-0242 Screw 3/8-16 x 4 carriage head grade 5 zinc 4
134 162-0001 12V 35Ah AGM battery 1
135 N/A Not available 6 ft Bumper molding
137 154-3405 Belt guard (OBSOLETE) 1
139 154-0093 Battery pad (OBSOLETE) 1
140 154-3406 Gearbox (OBSOLETE) 1
141a 154-0498 Wheel 2
141b 154-1438 10 inch wheel (gray) 2
142 154-3407 Coupling (OBSOLETE) 1
143 154-0511 10 inch stripping brush (purple) (OBSOLETE) 3
145 154-3409 Drive hub (OBSOLETE) 1
146 154-3410 Brush drive plate (OBSOLETE) 1
147 N/A Not available 1 Splash guard
148 N/A Not available 1 Rear splash guard
149 154-3412 Axle (OBSOLETE) 1
150 154-0214 Hour meter 1
169 154-3413 Bushing (OBSOLETE) 8
171 999-1546 Nut M14-2 nylon insert lock 3
177 999-0247 Nut 3/8-16 hex jam plain finish 2
183 154-0745 Screw 3/8 x 2 1
188 999-0725 Nut 7/16-20 nylon insert lock zinc plated 12
189 999-0033 Washer 7/16 SAE flat 12
190 154-0263 Hour meter ground wire (OBSOLETE) 1
191 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
192 999-0028 Washer 5/16 split lock plain finish 4
193 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 4
194 N/A Not available 1 Bushing
195 154-1055 Caster wheel 1
N/S 154-3415 Top belt guard (OBSOLETE) 1
64 154-0511 10 inch stripping brush (purple) (OBSOLETE)
N/S 154-0260 New engine - 17hp Kawasaki with muffler kit (OBSOLETE) 1
