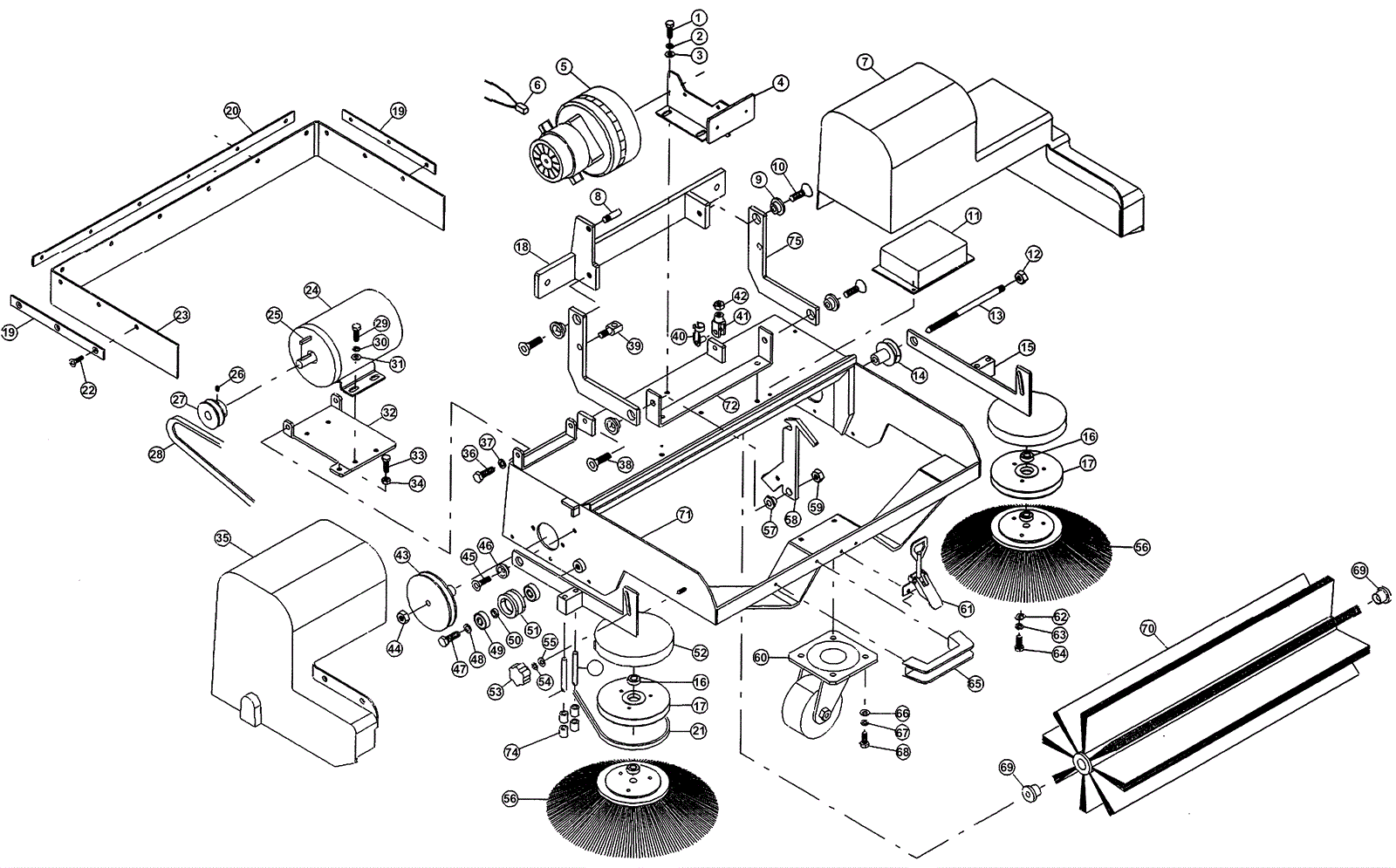

Sweeper Attachment Assembly 1 - Optional

#PartDescription ReqNotesAvailability
1 154-3336 Screw 2
2 154-1900 Washer 2
3 154-1898 Washer 2
4 154-3337 Vacuum motor support (OBSOLETE) 1
5 154-3031 36V vacuum motor (OBSOLETE) 1
6 154-3324 Carbon brush (sold individually) 2
7 154-3338 Vacuum motor cover (OBSOLETE) 1
8 154-3339 Block pin (OBSOLETE) 1
9 154-3340 Bushing (OBSOLETE) 4
10 154-3115 Screw 3
11 154-3016 Control box 1
12 154-3124 Self locking nut 1
13 154-3341 Main brush shaft (OBSOLETE) 1
14 154-3342 Left side brush pulley (OBSOLETE) 1
15 154-3343 Left side brush support (OBSOLETE) 1
16 154-3319 Bearing (OBSOLETE) 4
17 154-3328 Side brush pulley (OBSOLETE) 2
18 154-3313 Lever support (OBSOLETE) 1
19 154-3344 Side anti dust rubber strip (OBSOLETE) 2
20 154-3345 Rear anti dust rubber strip (OBSOLETE) 1
21 154-3346 Belt 2
22 154-1936 Screw 12
23 154-3347 Rear anti dust blade (OBSOLETE) 1
24 154-3348 Brush motor (OBSOLETE) 1
25 154-3349 Square keyway 1
26 154-3350 Dowel (OBSOLETE) 2
27 154-3351 Brush motor pulley (OBSOLETE) 1
28 154-3352 Belt 1
29 154-2586 Screw 4
30 154-1900 Washer 4
31 154-1898 Washer 4
32 154-3353 Brush motor support (OBSOLETE) 1
33 154-3354 Screw 1
34 154-2567 Nut 1
35 154-3355 Brush motor cover (OBSOLETE) 1
36 154-2586 Screw 2
37 154-1900 Washer 2
38 154-3147 Screw 1
39 154-3356 Fastening pin (OBSOLETE) 2
40 154-3171 Pin with spring 2
41 154-3172 Joint 2
42 154-2567 Nut 6
43 154-3357 Main brush pulley (OBSOLETE) 1
44 154-3124 Self locking nut 1
45 154-3358 Screw (OBSOLETE) 2
46 154-3359 Countersunk bushing (OBSOLETE) 2
47 154-3150 Screw 2
48 154-1898 Washer 2
49 154-3360 Ball bearing (OBSOLETE) 4
50 154-3361 Spacer (OBSOLETE) 2
51 154-3362 Pulley (OBSOLETE) 2
52 154-3363 Left side brush support (OBSOLETE) 1
53 154-3364 Knob 2
54 154-1978 Washer 2
55 154-3304 Washer 2
56 154-3365 Side brush 2
57 154-3366 Bushing (OBSOLETE) 1
58 154-3367 Lever (OBSOLETE) 1
59 154-3124 Self locking nut 1
60 154-3368 Caster wheel (OBSOLETE) 1
61 154-3369 Adjustment hook (OBSOLETE) 1
62 154-3304 Washer 6
63 154-1978 Washer 6
64 154-3335 Screw 6
65 154-3370 Plastic handle (OBSOLETE) 1
66 154-1898 Washer 4
67 154-1900 Washer 4
68 154-2586 Screw 4
69 154-3371 Bushing (OBSOLETE) 2
70 154-3424 Main nylon brush 1
71 154-3425 Base frame (OBSOLETE) 1
72 154-3426 Lever plate (OBSOLETE) 1
73 154-3428 Bushing (OBSOLETE) 4
74 154-3428 Bushing (OBSOLETE) 8
75 154-3429 Lever (OBSOLETE) 2
