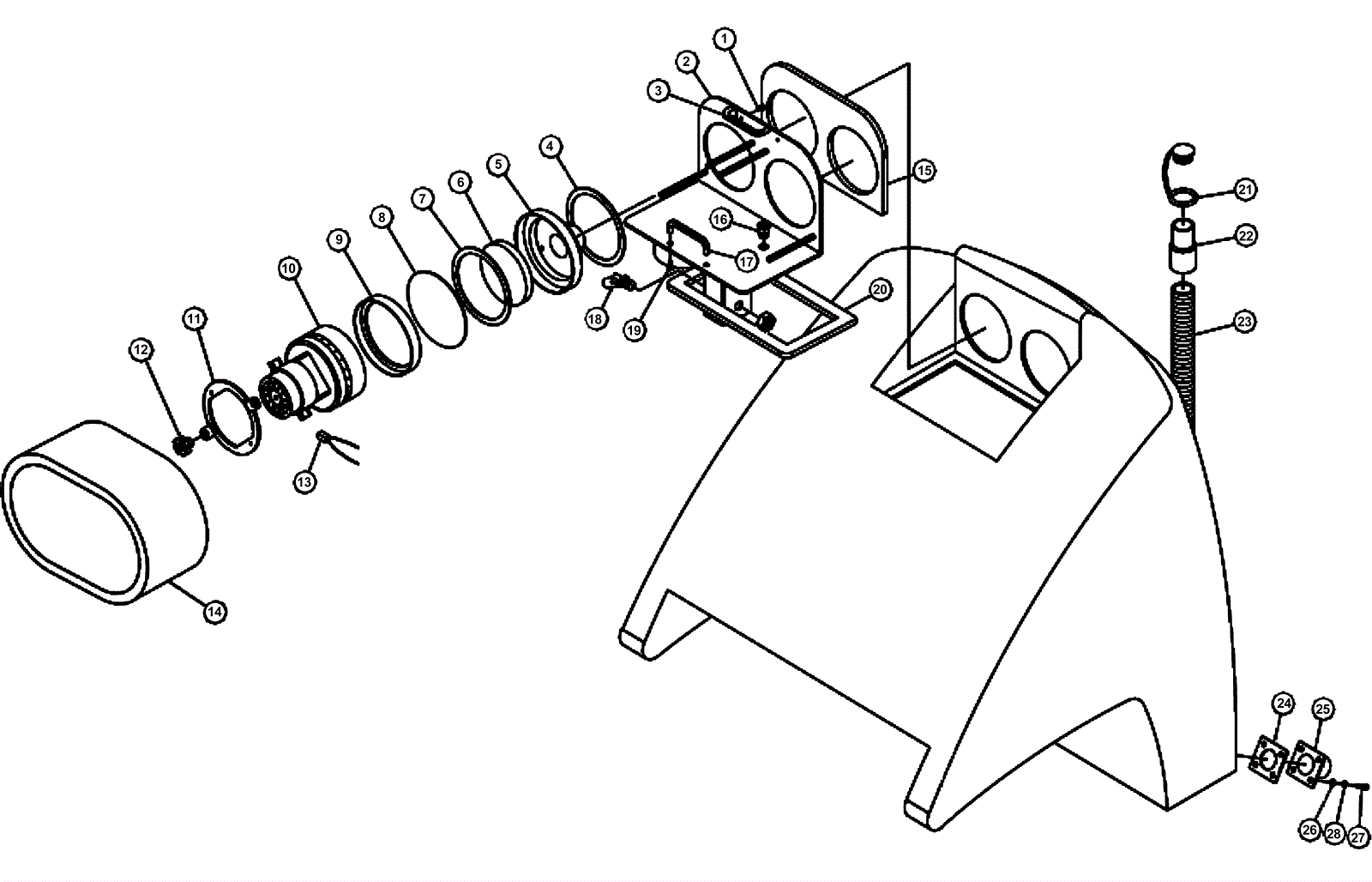

Vacuum Assembly

#PartDescription ReqNotesAvailability
1 154-3329 Screw (OBSOLETE) 2
2 154-3314 Motor support (OBSOLETE) 1
3 154-3315 Cover handle (OBSOLETE) 1
4 154-3316 Float gasket 2
5 154-3317 Floating flange (OBSOLETE) 2
6 154-3318 Float filter 2
7 154-3316 Float gasket 2
8 154-3320 Screen 2
9 154-3321 Motor gasket 2
10 154-3031 36V vacuum motor (OBSOLETE) 2
11 154-3322 Motor support bracket (OBSOLETE) 2
12 154-3323 Knob (OBSOLETE) 4
13 154-3324 Carbon brush (sold individually) 4
14 154-3325 Gasket 1
15 154-3326 Upper gasket 1
16 154-3327 Guide (OBSOLETE) 1
17 154-3315 Cover handle (OBSOLETE) 1
19 154-3329 Screw (OBSOLETE) 2
20 154-3330 Lower gasket 1
21 154-2645 Drain hose plug 1
22 154-3331 Hose cuff (black) 1
23 154-3332 Hose 1
24 154-3333 Gasket (OBSOLETE) 1
25 154-3334 Flange (OBSOLETE) 1
26 154-1977 Washer 4
27 154-3335 Screw 4
28 154-1978 Washer 4
