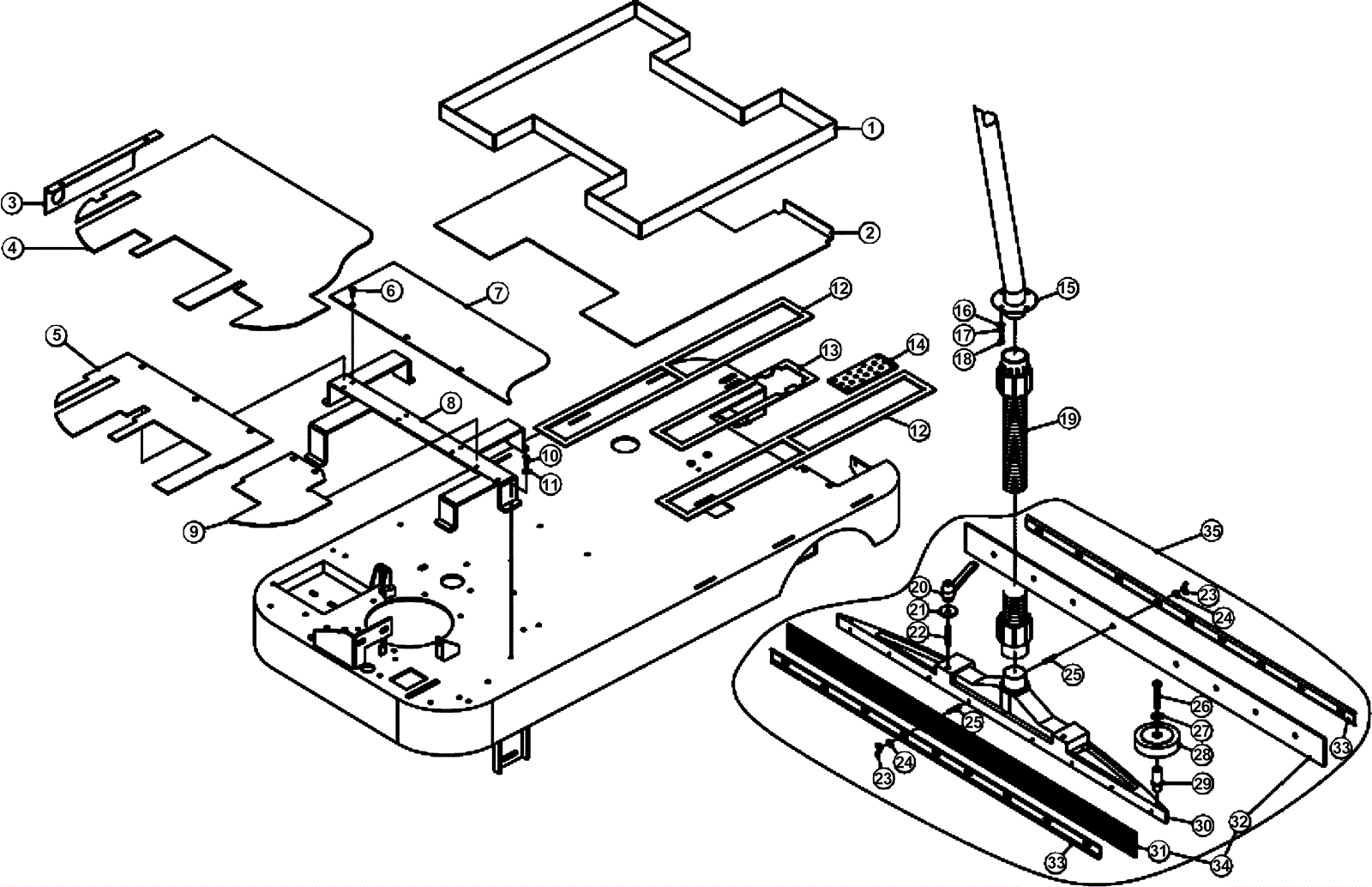

Battery Tray Assembly

#PartDescription ReqNotesAvailability
1 154-3287 Battery tray (OBSOLETE) 1
2 154-3288 Sliding battery plate 1
3 154-3289 Bracket (OBSOLETE) 1
4 154-3290 Plate (OBSOLETE) 1
5 154-3291 Plate (OBSOLETE) 1
6 154-3292 Screw (OBSOLETE) 8
7 154-3293 Plate (OBSOLETE) 1
8 154-3294 Support (OBSOLETE) 1
9 154-3295 Plate 1
10 154-1985 Screw 2
11 154-1977 Washer 2
12 154-3296 Plate (OBSOLETE) 2
13 154-3297 Plate (OBSOLETE) 1
14 154-3298 Bracket 5
15 154-3299 Pipe (OBSOLETE) 1
16 154-1978 Washer 4
17 154-1977 Washer 4
18 154-1985 Screw 4
19 154-3300 Hose with fittings 1
20 154-3301 Knob 2
21 154-3302 Washer (OBSOLETE) 2
22 154-3303 Thread (OBSOLETE) 2
23 154-2587 Nut 17
24 154-3304 Washer 17
25 154-3305 Thread 17
26 154-3242 Screw 2
27 154-1879 Washer 2
28 154-3086 Wheel 2
29 154-3306 Bushing 2
30 154-3307 Squeegee weldment (OBSOLETE) 1
31 154-3308 Squeegee blade front 1
32 154-3309 Squeegee blade rear 1
33 154-3310 Squeegee blade strip (OBSOLETE) 2
34 154-3311 Squeegee blade assembly 1 (includes 31 and 32)
35 154-3312 Squeegee assembly 1 (includes 20-33)
