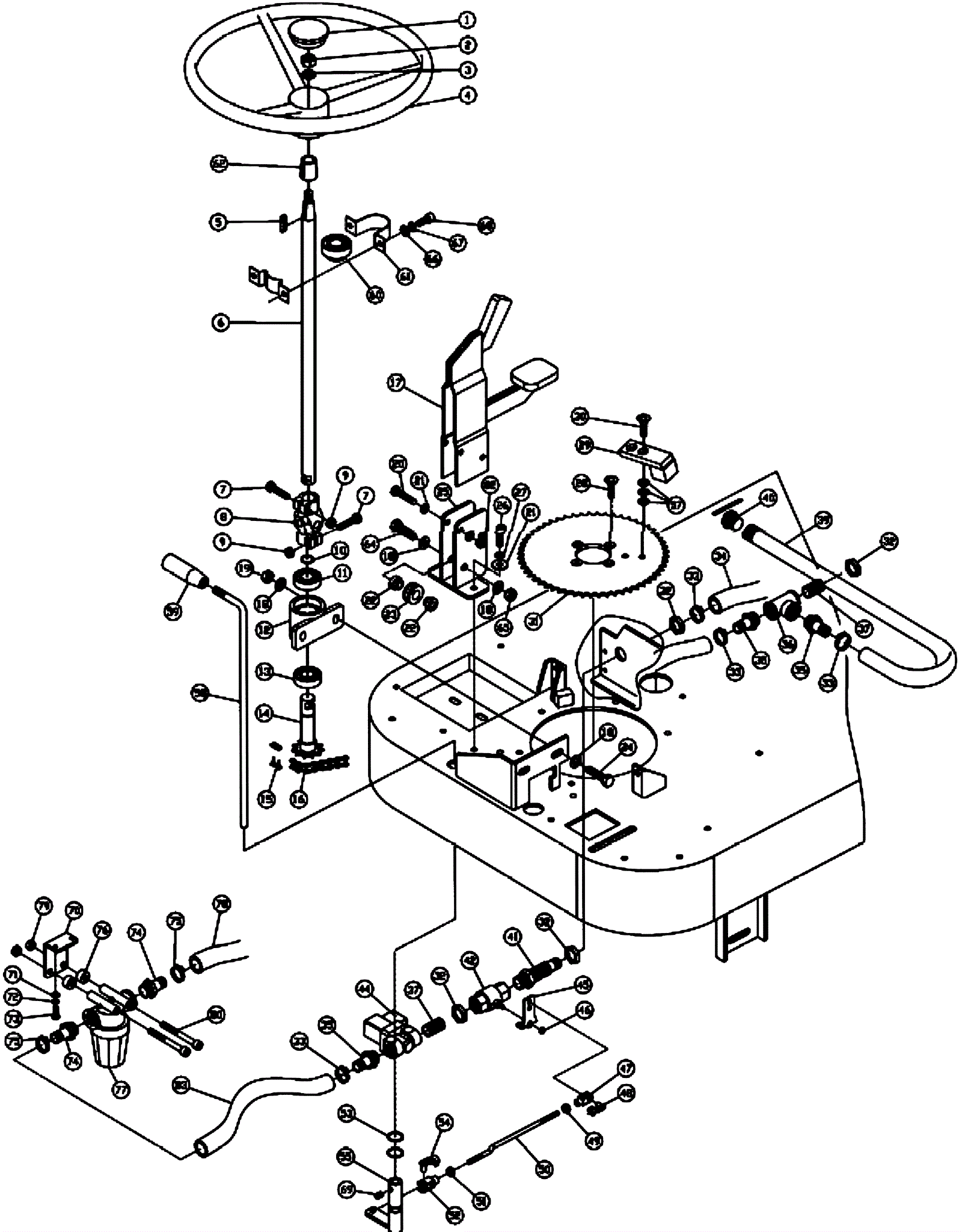

FLOORSHARK SH3200 Front Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-3151 Plug $1.82 1 usually ships 1-5 days
2 154-3202 Self locking nut (OBSOLETE) $3.76 1 usually ships 1-5 days
3 154-3203 Washer $0.90 1 usually ships 1-5 days
4 154-3204 Wheel $93.64 1 usually ships 1-5 days
5 154-3205 Square keyway $0.90 1 usually ships 1-5 days
6 154-3206 Steering shaft (OBSOLETE) $53.22 1 usually ships 1-5 days
7 154-1895 Screw $5.20 2 usually ships 1-5 days
8 154-3207 Steering joint $64.14 1 usually ships 1-5 days
9 154-1926 Self locking nut $9.19 2 usually ships 1-5 days
10 154-3208 Snap ring $2.49 1 usually ships 1-5 days
11 154-3209 Ball bearing (OBSOLETE) $30.35 1 usually ships 4-15 days
12 154-3210 Support $63.81 1 usually ships 1-5 days
13 154-3209 Ball bearing (OBSOLETE) $30.35 1 usually ships 4-15 days
14 154-3211 Pin (OBSOLETE) $35.86 1 usually ships 1-5 days
15 154-3212 Master link $17.31 1 usually ships 1-5 days
16 154-3213 Chain (OBSOLETE) $33.54 1 usually ships 1-5 days
17 154-3214 Parking brake $253.93 1 usually ships 1-5 days
18 154-1926 Self locking nut $9.19 6 usually ships 1-5 days
19 154-1895 Screw $5.20 2 usually ships 1-5 days
20 154-2586 Screw $3.05 2 usually ships 1-5 days
21 154-1900 Washer $1.67 6 usually ships 1-5 days
22 154-3215 Bushing $1.82 2 usually ships 1-5 days
23 154-3216 Wire pulley $3.30 1 usually ships 1-5 days
24 154-3215 Bushing $1.82 1 usually ships 1-5 days
25 154-3217 Brake support $35.55 1 usually ships 1-5 days
26 154-1895 Screw $5.20 2 usually ships 1-5 days
27 154-1900 Washer $1.67 2 usually ships 1-5 days
28 154-3218 Screw $8.57 4 usually ships 1-5 days
29 154-3219 Pin $14.25 1 usually ships 1-5 days
30 154-3110 Screw (OBSOLETE) $0.90 2 usually ships 1-5 days
31 154-3220 Ring gear $55.06 1 usually ships 1-5 days
32 154-3221 Ring nut $26.01 4 usually ships 1-5 days
33 154-3196 Clamp $17.61 4 usually ships 1-5 days
34 154-3222 Pipe $3.41 1 usually ships 1-5 days
35 154-3223 Union $34.07 3 usually ships 1-5 days
36 154-3430 Union (OBSOLETE) Call for price 1 usually ships 1-5 days
37 154-3224 Union $20.24 2 usually ships 1-5 days
39 154-3225 Hose (OBSOLETE) $14.46 1 usually ships 1-5 days
40 154-3221 Ring nut $26.01 1 usually ships 1-5 days
41 154-3226 Nipple (OBSOLETE) $13.95 1 usually ships 1-5 days
42 154-3227 Solution valve $82.52 1 usually ships 1-5 days
44 154-3223 Union $34.07 1 usually ships 1-5 days
45 154-3228 Valve lever (OBSOLETE) $27.54 1 usually ships 1-5 days
46 154-2551 Nut $3.11 1 usually ships 1-5 days
47 154-2556 Joint $22.20 1 usually ships 1-5 days
48 154-2557 Pin $8.44 1 usually ships 1-5 days
49 154-2551 Nut $3.11 1 usually ships 1-5 days
50 154-3229 Tie rod (OBSOLETE) $5.73 1 usually ships 1-5 days
51 154-2551 Nut $3.11 1 usually ships 1-5 days
52 154-2556 Joint $22.20 1 usually ships 1-5 days
53 154-3208 Snap ring $2.49 2 usually ships 1-5 days
54 154-2557 Pin $8.44 1 usually ships 1-5 days
55 154-3230 Transmission lever $20.15 1 usually ships 1-5 days
57 154-3231 Spacer $0.90 6 usually ships 1-5 days
58 154-3232 Solution lever $55.16 1 usually ships 1-5 days
59 154-3233 Knob $4.33 1 usually ships 1-5 days
60 154-3234 Bearing $33.70 1 usually ships 1-5 days
61 154-3235 Bearing support $72.57 1 usually ships 1-5 days
62 154-3236 Bushing $10.64 1 usually ships 1-5 days
64 154-3237 Screw $1.63 1 usually ships 1-5 days
65 154-3124 Self locking nut $10.98 1 usually ships 1-5 days
66 154-1898 Washer $1.67 2 usually ships 1-5 days
67 154-1900 Washer $1.67 2 usually ships 1-5 days
68 154-3113 Screw (OBSOLETE) $0.90 2 usually ships 1-5 days
69 154-3238 Dowel (OBSOLETE) Call for price 1 usually ships 1-5 days
70 154-3239 Filter support plate (OBSOLETE) Call for price 1 usually ships 1-5 days
71 154-1977 Washer $1.67 2 usually ships 1-5 days
72 154-1978 Washer $1.67 2 usually ships 1-5 days
73 154-1979 Screw $2.76 2 usually ships 1-5 days
74 154-3223 Union $34.07 2 usually ships 1-5 days
75 154-3196 Clamp $17.61 2 usually ships 1-5 days
76 154-3231 Spacer $0.90 2 usually ships 1-5 days
77 154-3240 Solution filter $119.37 1 usually ships 1-5 days
78 154-3241 Hose (OBSOLETE) Call for price 1 usually ships 1-5 days
79 154-2567 Nut $3.05 2 usually ships 4-15 days
80 154-3242 Screw $3.12 2 usually ships 1-5 days
82 154-2567 Nut $3.05 4 usually ships 4-15 days
83 154-3243 Hose (OBSOLETE) $11.24 1 usually ships 1-5 days
