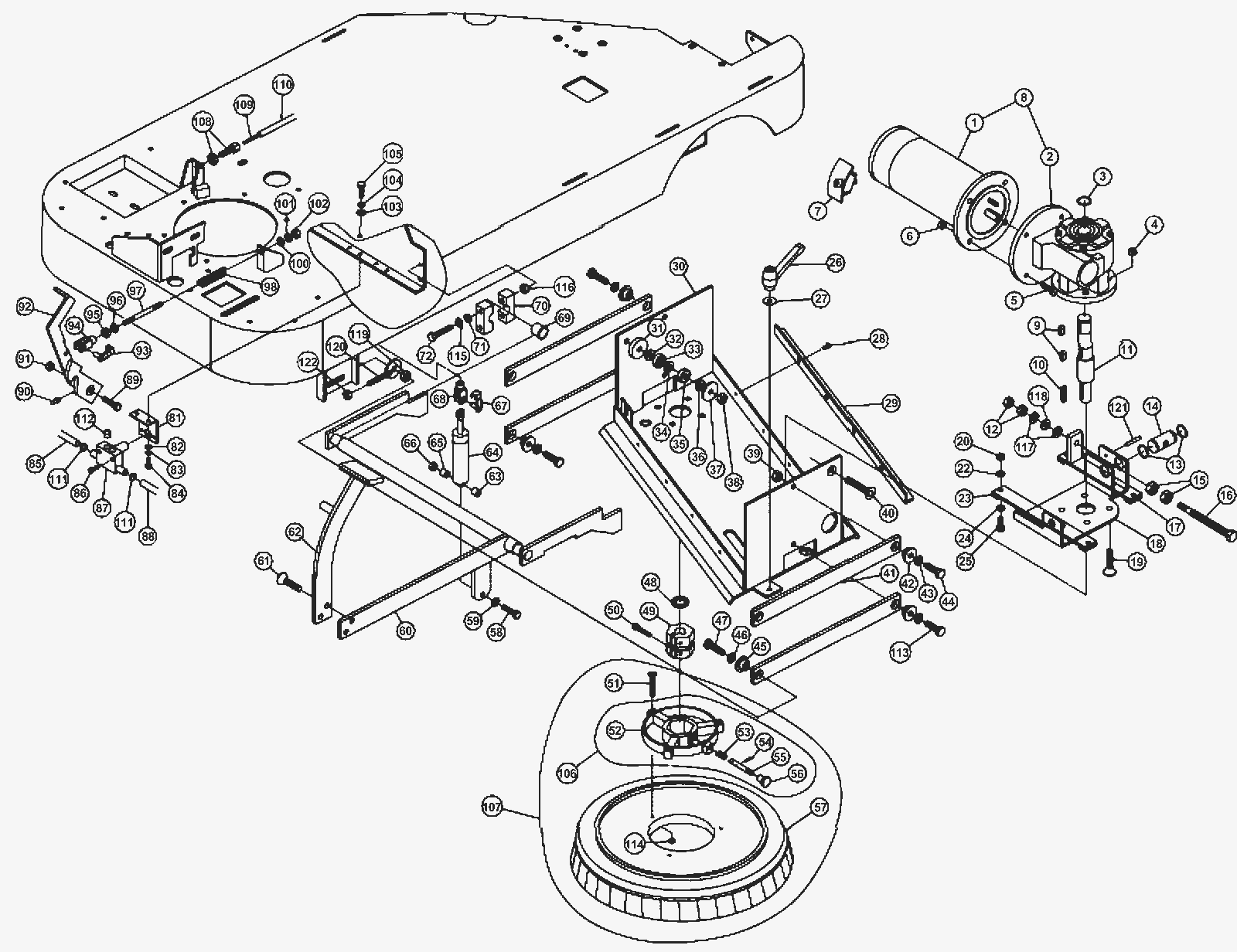

FLOORSHARK SH3200 Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-3121 36V brush motor (motor only) (OBSOLETE) $857.54 2 usually ships 1-5 days
2 154-3122 Reduction gear (OBSOLETE) $470.36 2 usually ships 1-5 days
3 154-3123 Snap ring $0.90 2 usually ships 1-5 days
4 154-3124 Self locking nut $10.98 4 usually ships 1-5 days
5 154-3125 Screw $1.82 8 usually ships 1-5 days
6 154-1926 Self locking nut $9.19 8 usually ships 1-5 days
7 154-3126 Carbon brush (sold individually) (OBSOLETE) $117.07 2 usually ships 1-5 days
8 154-3026 36V brush motor with gearbox $1,608.16 2 (includes 1 and 2) usually ships 1-5 days
9 154-3127 Square keyway $5.22 4 usually ships 1-5 days
10 154-1952 Square keyway $22.95 2 usually ships 1-5 days
11 154-3128 Motor pin (OBSOLETE) $57.63 2 usually ships 1-5 days
12 154-1946 Nut (OBSOLETE) $2.57 2 usually ships 1-5 days
13 154-3123 Snap ring $0.90 2 usually ships 1-5 days
14 154-3129 Pin $21.98 1 usually ships 1-5 days
15 154-3130 Nut $11.58 2 usually ships 1-5 days
16 154-3132 Tie rod $14.65 1 usually ships 1-5 days
17 154-3133 Plate $29.30 1 usually ships 1-5 days
18 154-3134 Support $40.29 1 usually ships 1-5 days
19 154-3135 Screw $0.90 4 usually ships 1-5 days
20 154-3136 Nut $0.90 4 usually ships 1-5 days
22 154-3137 Washer $0.90 4 usually ships 1-5 days
23 154-3138 Plate $20.15 1 usually ships 1-5 days
24 154-3137 Washer $0.90 4 usually ships 1-5 days
25 154-3186 Screw $0.90 4 usually ships 1-5 days
26 154-2627 Knob $74.59 2 usually ships 4-15 days
27 154-3139 Washer $2.59 2 usually ships 1-5 days
28 154-3140 Screw (OBSOLETE) $0.90 8 usually ships 1-5 days
29 154-3141 Brush cover plate $29.30 2 usually ships 1-5 days
30 154-3142 Brush holding plate $186.75 1 usually ships 1-5 days
31 154-3143 Spacer $10.90 2 usually ships 1-5 days
32 154-3144 Washer $0.90 2 usually ships 1-5 days
33 154-3145 Ball bearing $13.22 2 usually ships 1-5 days
34 154-3144 Washer $0.90 2 usually ships 1-5 days
35 154-3145 Ball bearing $13.22 2 usually ships 1-5 days
36 154-3144 Washer $0.90 2 usually ships 1-5 days
37 154-3146 Washer $1.78 2 usually ships 1-5 days
38 154-3124 Self locking nut $10.98 2 usually ships 1-5 days
39 154-3124 Self locking nut $10.98 4 usually ships 1-5 days
40 154-3147 Screw $1.82 2 usually ships 1-5 days
41 154-3148 Lifting lever $10.99 4 usually ships 1-5 days
42 154-3149 Bushing $1.90 4 usually ships 1-5 days
43 154-1964 Washer (OBSOLETE) $0.90 4 usually ships 1-5 days
44 154-3150 Screw $4.00 2 usually ships 1-5 days
45 154-3149 Bushing $1.90 4 usually ships 1-5 days
46 154-1964 Washer (OBSOLETE) $0.90 4 usually ships 1-5 days
47 154-3150 Screw $4.00 4 usually ships 1-5 days
48 154-3152 Spacer (OBSOLETE) $1.65 2 usually ships 1-5 days
49 154-3153 Brush shaft (OBSOLETE) $30.61 2 usually ships 1-5 days
50 154-3154 Screw (OBSOLETE) $0.90 4 usually ships 1-5 days
51 154-3155 Screw (OBSOLETE) $0.90 6 usually ships 1-5 days
52 154-3201 Brush attachment assembly $270.95 2 usually ships 4-15 days
53 154-3157 Spring (OBSOLETE) $14.08 2 usually ships 1-5 days
54 154-3158 Tension pin (OBSOLETE) $3.72 2 usually ships 1-5 days
55 154-3159 Pin (OBSOLETE) $22.16 2 usually ships 1-5 days
56 154-3160 Ring nut $10.46 2 usually ships 1-5 days
58 154-1923 Screw $6.02 1 usually ships 1-5 days
59 154-1898 Washer $1.67 1 usually ships 1-5 days
60 154-3167 Lifting lever (OBSOLETE) $141.26 1 usually ships 1-5 days
61 154-3115 Screw $2.40 2 usually ships 1-5 days
62 154-3168 Lifting lever (OBSOLETE) $28.30 1 usually ships 1-5 days
63 154-3169 Spacer $1.51 1 usually ships 1-5 days
64 154-3170 Absorber (OBSOLETE) $74.75 1 usually ships 1-5 days
65 154-3169 Spacer $1.51 1 usually ships 1-5 days
66 154-1926 Self locking nut $9.19 1 usually ships 1-5 days
67 154-3171 Pin with spring $12.29 1 usually ships 1-5 days
68 154-3172 Joint $9.61 1 usually ships 1-5 days
69 154-3173 Bushing $14.57 2 usually ships 1-5 days
70 154-3174 Support $4.57 4 usually ships 1-5 days
71 154-1898 Washer $1.67 4 usually ships 1-5 days
72 154-1923 Screw $6.02 4 usually ships 1-5 days
81 154-3175 Support $9.17 1 usually ships 1-5 days
82 154-1977 Washer $1.67 2 usually ships 1-5 days
83 154-1978 Washer $1.67 2 usually ships 1-5 days
84 154-1985 Screw $1.67 2 usually ships 4-15 days
85 154-3176 Pipe (OBSOLETE) $2.68 1 usually ships 1-5 days
86 154-3177 Screw $0.90 2 usually ships 1-5 days
87 154-3178 Distributor $33.57 1 usually ships 1-5 days
88 154-3179 Pipe (OBSOLETE) $5.00 1 usually ships 1-5 days
89 154-3180 Screw $4.33 1 usually ships 1-5 days
90 154-3181 Greaser (OBSOLETE) $0.90 1 usually ships 1-5 days
91 154-1926 Self locking nut $9.19 1 usually ships 1-5 days
92 154-3182 Locking lever plate (OBSOLETE) $44.32 1 usually ships 1-5 days
93 154-3171 Pin with spring $12.29 1 usually ships 1-5 days
94 154-3172 Joint $9.61 1 usually ships 1-5 days
95 154-2567 Nut $3.05 1 usually ships 4-15 days
96 154-1898 Washer $1.67 1 usually ships 1-5 days
97 154-3183 Tie rod $16.49 1 usually ships 1-5 days
98 154-3184 Spring $2.18 1 usually ships 1-5 days
100 154-3185 Washer $2.18 1 usually ships 1-5 days
101 154-1898 Washer $1.67 1 usually ships 1-5 days
102 154-1926 Self locking nut $9.19 1 usually ships 1-5 days
103 154-1898 Washer $1.67 1 usually ships 1-5 days
104 154-1900 Washer $1.67 1 usually ships 1-5 days
105 154-2586 Screw $3.05 1 usually ships 1-5 days
106 154-3201 Brush attachment assembly $270.95 2 (includes 52-56) usually ships 4-15 days
107 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages Call for price 2 usually ships 3-26 days
108 154-3193 Brake wire regulator $3.76 1 usually ships 1-5 days
109 154-3194 Brake wire (OBSOLETE) $6.71 1 usually ships 1-5 days
110 154-3195 Sheathing $4.66 1 usually ships 1-5 days
111 154-3196 Clamp $17.61 2 usually ships 1-5 days
112 154-3197 Plug $0.90 2 usually ships 1-5 days
113 154-1938 Screw $13.91 2 usually ships 1-5 days
114 154-1873 Self locking nut $8.22 6 usually ships 1-5 days
115 154-1900 Washer $1.67 4 usually ships 1-5 days
116 154-2567 Nut $3.05 4 usually ships 4-15 days
117 154-3112 Washer $2.86 2 usually ships 1-5 days
118 154-3198 Washer (OBSOLETE) Call for price 1 usually ships 1-5 days
119 154-3124 Self locking nut $10.98 4 usually ships 1-5 days
120 154-3199 Tie rod $20.42 2 usually ships 1-5 days
121 154-3200 Tension pin (OBSOLETE) Call for price 1 usually ships 1-5 days
122 154-1926 Self locking nut $9.19 1 usually ships 1-5 days
