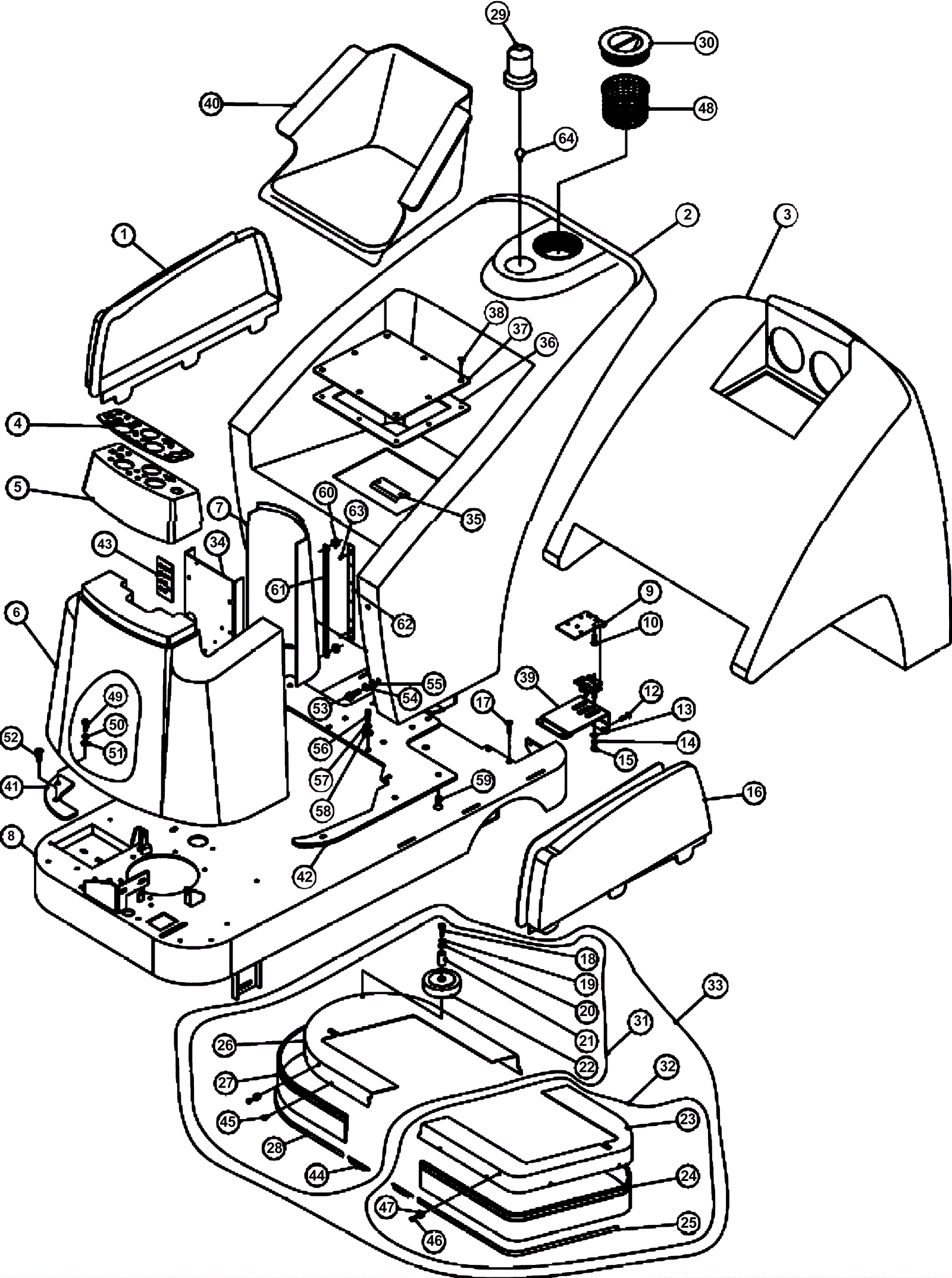

Body Assembly

#PartDescription ReqNotesAvailability
1 154-3071 Right side battery panel 1
2 154-3072 Solution tank 1
3 154-3073 Recovery tank 1
4 154-3074 Decal 1
5 154-3075 Dashboard (OBSOLETE) 1
6 154-3076 Front panel 1
7 154-3077 Dashboard holder 1
8 154-3078 Base frame 1
9 154-3079 Recovery tank hinge 1
10 154-3080 Screw (OBSOLETE) 10
12 154-3081 Screw 2
13 154-2607 Washer 6
14 154-3082 Washer (OBSOLETE) 6
15 154-3083 Nut 6
16 154-3084 Left side battery panel 1
17 154-3081 Screw 2
18 154-3085 Screw 1
19 154-1900 Washer 1
20 154-1879 Washer 2
21 154-2594 Bushing 1
22 154-3086 Wheel 1
23 154-3087 Cover 1
24 154-3088 Splash guard bumper 1
25 154-3089 Bumper weldment (OBSOLETE) 1
26 154-3090 Cover 1
27 154-3091 Splash guard bumper (OBSOLETE) 1
28 154-3092 Bumper weldment (OBSOLETE) 1
29 154-3034 Lightbulb cover 1
30 154-3093 Solution tank cap (OBSOLETE) 1
31 154-3094 Right side brush cover assembly (OBSOLETE) 1 (includes 18-22, 26-28, 44 and 45)
32 154-3095 Left side brush cover assembly (OBSOLETE) 1 (includes 23-25, 46 and 47)
33 154-3096 Right and left brush cover assembly (OBSOLETE) 1 (includes 31 and 32)
34 154-3097 Electrical assembly support 1
35 154-3098 Plate 1
36 154-3099 Gasket (OBSOLETE) 1
37 154-3100 Plate (OBSOLETE) 1
38 154-3101 Screw (OBSOLETE) 8
39 154-3102 Plate 1
40 154-3103 Seat (OBSOLETE) 1
41 154-3104 Plate 1
42 154-3105 Solution tank plate 1
43 154-3106 Fuse decal (OBSOLETE) 1
44 154-1891 Galvanized spring 4
45 154-1893 Screw 8
46 154-2555 Screw 4
47 154-3107 Plastic spacer (OBSOLETE) 4
48 154-3108 Filter 1
49 154-3109 Screw (OBSOLETE) 3
50 154-1900 Washer 3
51 154-1879 Washer 3
52 154-3110 Screw (OBSOLETE) 1
53 154-3111 Screw (OBSOLETE) 2
54 154-1964 Washer (OBSOLETE) 2
55 154-3112 Washer 2
56 154-3113 Screw (OBSOLETE) 6
57 154-1898 Washer 6
58 154-3114 Washer (OBSOLETE) 6
59 154-3115 Screw 6
60 154-3116 Gasket (OBSOLETE) 2
61 154-3117 Hose (OBSOLETE) 1
62 154-3118 Decal 1
63 154-3119 Screw 2
64 154-3120 Lightbulb 1
