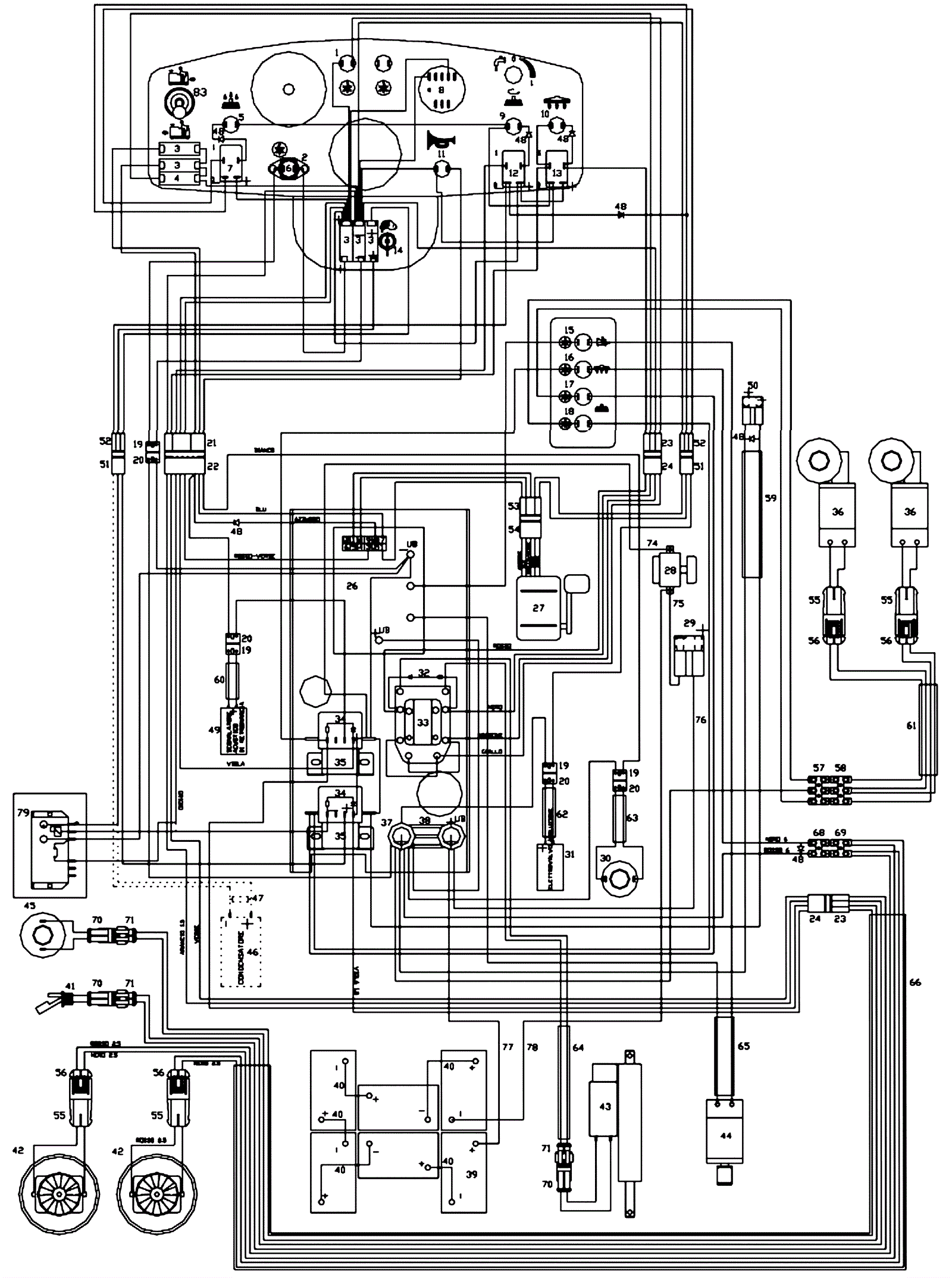

FLOORSHARK SH3200 Wiring Diagram - Standard

#PartDescriptionPriceReqNotesAvailability
1 154-3000 Overload cutout (OBSOLETE) $14.21 1 usually ships 1-5 days
2 154-3001 Fuse holder (OBSOLETE) $19.33 1 usually ships 1-5 days
3 154-3002 Open contact (OBSOLETE) $10.63 4 usually ships 1-5 days
4 154-3003 Closed contact (OBSOLETE) $28.06 1 usually ships 1-5 days
5 154-3004 Lamp holder (OBSOLETE) $13.31 1 usually ships 1-5 days
6 154-3005 10amp fuse (OBSOLETE) $2.45 1 usually ships 1-5 days
7 154-3006 Snap switch (OBSOLETE) $17.35 1 usually ships 1-5 days
8 154-3007 Battery indicator (OBSOLETE) $266.05 1 usually ships 1-5 days
9 154-3004 Lamp holder (OBSOLETE) $13.31 1 usually ships 1-5 days
10 154-3004 Lamp holder (OBSOLETE) $13.31 1 usually ships 1-5 days
11 154-3008 Press switch (OBSOLETE) $34.11 1 usually ships 1-5 days
12 154-3006 Snap switch (OBSOLETE) $17.35 1 usually ships 1-5 days
13 154-3006 Snap switch (OBSOLETE) $17.35 1 usually ships 1-5 days
14 154-3009 Key switch (OBSOLETE) $58.12 1 usually ships 1-5 days
15 154-3010 Overload cutout (OBSOLETE) $17.72 1 usually ships 1-5 days
16 154-3010 Overload cutout (OBSOLETE) $17.72 1 usually ships 1-5 days
17 154-3011 Overload cutout $27.51 1 usually ships 1-5 days
18 154-3011 Overload cutout $27.51 1 usually ships 1-5 days
19 154-1858 Female plug $18.92 3 usually ships 4-15 days
20 154-1859 Male plug $19.60 3 usually ships 4-15 days
21 154-3012 Connector $0.90 1 usually ships 1-5 days
22 154-3013 Connector $1.78 1 usually ships 1-5 days
23 154-3014 Connector $17.56 2 usually ships 1-5 days
24 154-3015 Connector $18.70 2 usually ships 1-5 days
26 154-3016 Control box $923.30 1 usually ships 1-5 days
27 154-3017 Accelerator assembly (OBSOLETE) $354.73 1 usually ships 1-5 days
28 154-3018 Emergency switch $345.07 1 usually ships 1-5 days
29 154-3019 Battery charger plug $71.73 1 usually ships 1-5 days
30 154-3020 Motor horn (OBSOLETE) $78.33 1 usually ships 1-5 days
31 154-3021 Solenoid valve $286.78 1 usually ships 1-5 days
32 154-3022 Net $4.69 1 usually ships 1-5 days
33 154-3023 Relay (OBSOLETE) $80.69 1 usually ships 1-5 days
34 154-3024 Net $15.58 2 usually ships 1-5 days
35 154-3025 Remote control switch $94.91 2 usually ships 1-5 days
36 154-3026 36V brush motor with gearbox $1,608.16 2 usually ships 1-5 days
37 154-3027 Terminal board support (OBSOLETE) $5.77 2 usually ships 1-5 days
38 154-3028 120amp fuse (OBSOLETE) $4.08 1 usually ships 1-5 days
40a 998-0010 Battery jumper cable - ring type (red) $3.87 5 ships same day
40b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $11.63 5 (NON-OEM) usually ships 5-16 days
42 154-3031 36V vacuum motor (OBSOLETE) $455.93 2 usually ships 1-5 days
43 154-3032 Squeegee actuator (OBSOLETE) $1,097.45 1 usually ships 1-5 days
44 154-3033 36V brush motor (OBSOLETE) $1,219.35 1 usually ships 1-5 days
45 154-3034 Lightbulb cover $256.86 1 usually ships 1-5 days
46 154-3035 Motor capacitor $85.20 1 usually ships 1-5 days
47 154-3036 Resistance $1.30 1 usually ships 1-5 days
48 154-1863 Diode $30.59 7 usually ships 1-5 days
49 154-3037 Reverse motion buzzer $277.96 1 usually ships 1-5 days
50 991-2105 SB50 50amp charger plug with pins (gray) $5.38 1 ships same day
51 154-3039 3 pole connector $5.28 2 usually ships 1-5 days
52 154-3040 3 pole connector $3.70 2 usually ships 1-5 days
54 154-3042 Connector $31.07 1 usually ships 1-5 days
55 154-3043 Connector (OBSOLETE) $9.84 4 usually ships 1-5 days
56 154-3044 Connector (OBSOLETE) $14.07 4 usually ships 1-5 days
57 154-3045 Terminal board (OBSOLETE) $1.95 1 usually ships 1-5 days
58 154-3046 Terminal board (OBSOLETE) $2.82 1 usually ships 1-5 days
59 154-3047 Sweeping system wire $16.30 1 usually ships 1-5 days
60 154-3048 Reverse motion buzzer with cable $5.77 1 usually ships 1-5 days
61 154-3049 Brush motor wire $19.44 1 usually ships 1-5 days
62 154-3050 Solenoid valve wire $5.77 1 usually ships 1-5 days
63 154-3051 Electric horn wire $8.12 1 usually ships 1-5 days
64 154-3052 Squeegee actuator wire $18.10 1 usually ships 1-5 days
65 154-3053 Drive motor wire $20.26 1 usually ships 1-5 days
66 154-3054 Vacuum motor wire (OBSOLETE) $66.03 1 usually ships 1-5 days
68 154-3056 Terminal board Call for price 1 usually ships 1-5 days
69 154-3057 Terminal board Call for price 1 usually ships 1-5 days
70 154-3058 Connector (OBSOLETE) $25.74 3 usually ships 1-5 days
71 154-3059 Connector (OBSOLETE) $22.13 3 usually ships 1-5 days
74 154-3060 Electric wire (OBSOLETE) Call for price 1 usually ships 1-5 days
75 154-3061 Electric wire (OBSOLETE) Call for price 1 usually ships 1-5 days
76 154-3062 Electric wire (OBSOLETE) Call for price 1 usually ships 1-5 days
77 154-3063 Electric wire (OBSOLETE) $64.68 1 usually ships 1-5 days
78 154-3064 Electric wire (OBSOLETE) $58.80 1 usually ships 1-5 days
79 154-3065 Timer (OBSOLETE) Call for price 1 usually ships 1-5 days
83 154-3069 Rocker switch $354.27 1 usually ships 1-5 days
N/S 154-3041 Connector (OBSOLETE) $31.59 1 usually ships 1-5 days
N/S 154-3055 Wire (OBSOLETE) Call for price 1 usually ships 1-5 days
N/S 154-3066 Lamp (OBSOLETE) $2.50 2 usually ships 1-5 days
N/S 154-3067 Red lamp cap $2.10 2 usually ships 1-5 days
N/S 154-3068 Cap (OBSOLETE) Call for price 2 usually ships 1-5 days
N/S 154-3070 Power wire (OBSOLETE) Call for price 1 usually ships 1-5 days
