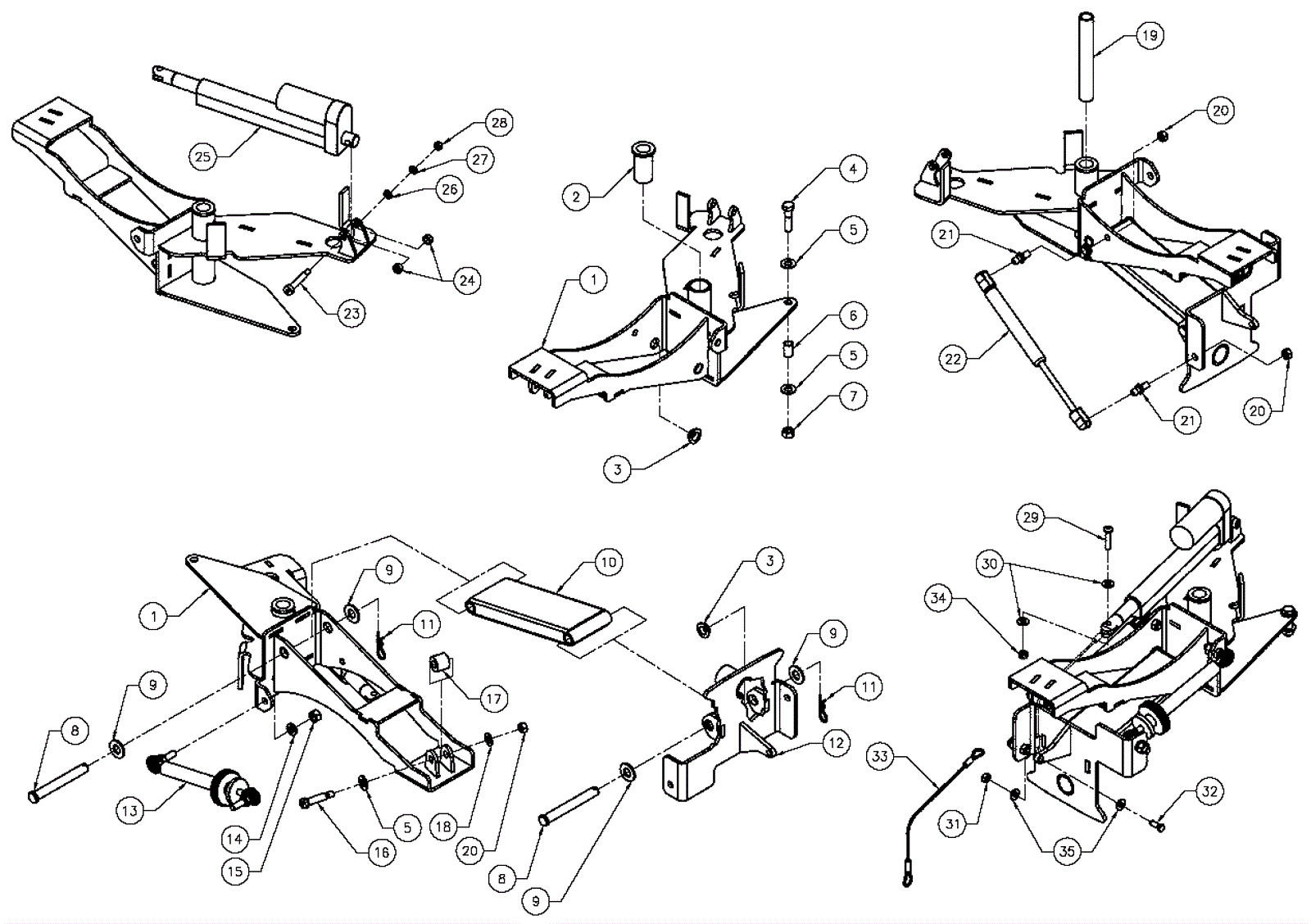

Squeegee Lift Assembly

#PartDescription ReqNotesAvailability
1 154-2677 Squeegee lift weldment (OBSOLETE) 1
2 154-1243 Flanged bushing 2
3 154-1206 Flanged bushing 4
4 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 1
5 999-1254 Washer 3/8 SAE flat zinc plated 3
6 154-2666 Bushing 1
7 999-0247 Nut 3/8-16 hex jam plain finish 1
8 154-1205 Clevis pin 2
9 999-0566 Washer 1/2 flat nylon 4
10 154-2678 Squeegee lifting arm weldment (OBSOLETE) 1
11 154-1207 Cotter pin 2
12 154-2679 Squeegee leveling plate 1
13 154-2680 Squeegee adjustment arm (OBSOLETE) 1
14 154-0633 Lock washer 2
15 999-0143 Nut 3/8-24 hex plain finish 2
16 154-2043 Shoulder screw 1
17 154-2681 Roller 1
18 999-0024 Washer 5/16 flat stainless steel 1
19 154-2682 Pivot sleeve (OBSOLETE) 1
20 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 3
21 154-2241 Stud 2
22 154-2242 Gas spring 1
23 154-1588 Screw M8 x 40mm shoulder 1
24 154-1586 Nylon spacer 2
25 154-2683 24V actuator 1
26 999-1261 Washer M6 flat stainless steel 1
27 999-1117 Washer M6 split lock stainless steel 1
28 999-1308 Nut M6-1 hex stainless steel 1
29 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1
30 999-0998 Washer #10 flat stainless steel 2
31 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
32 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
33 154-2684 Lanyard 1
35 999-0016 Washer 1/4 flat plain finish 2
