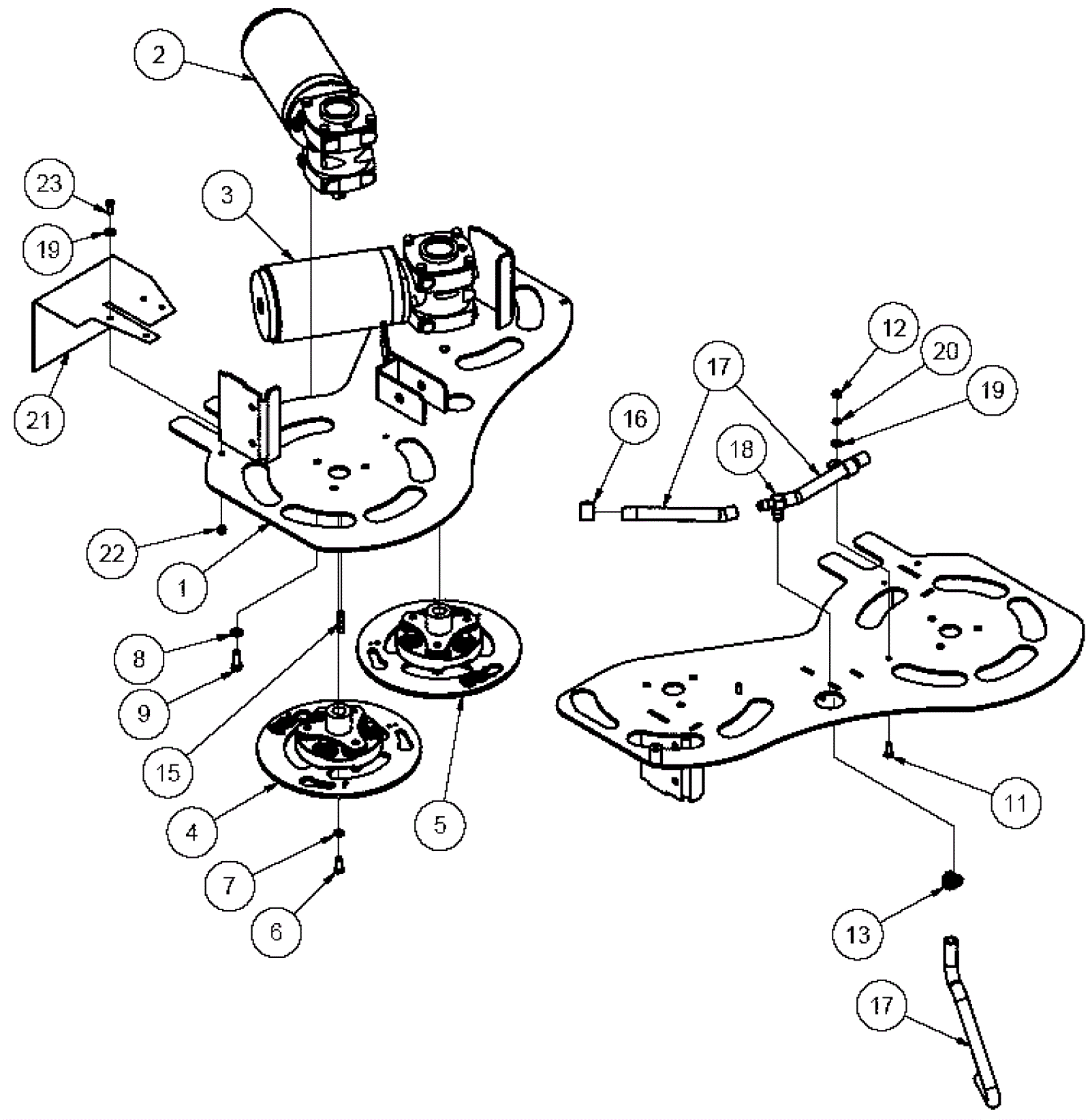

Scrub Deck Assembly

#PartDescription ReqNotesAvailability
1 154-2669 Scrub deck weldment (OBSOLETE) 1
2 154-2670 36V left side brush motor 1
3 154-2671 36V right side brush motor 1
4 154-2672 Left drive hub assembly (OBSOLETE) 1
5 154-2673 Right drive hub assembly (OBSOLETE) 1
6 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 2
7 999-0028 Washer 5/16 split lock plain finish 2
8 154-2403 Washer 6
9 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 6
10 154-2674 1/2 inch split loom (sold by the inch) (OBSOLETE) 19 in
11 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
12 999-0609 Nut 1/4-20 hex stainless steel 2
13 154-1222 Hose clamp 1
14 154-1780 Vinyl tubing (sold by the inch) 18 in
15 154-0549 Square keyway 2
16 154-0700 P clamp 2
17 154-1780 Vinyl tubing (sold by the inch) 6 13/16 in
18 154-1221 Tee fitting 1
19 999-0016 Washer 1/4 flat plain finish 4
20 154-0600 Lock washer 2
21 154-2675 Splash skirt 1
22 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
23 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 2
