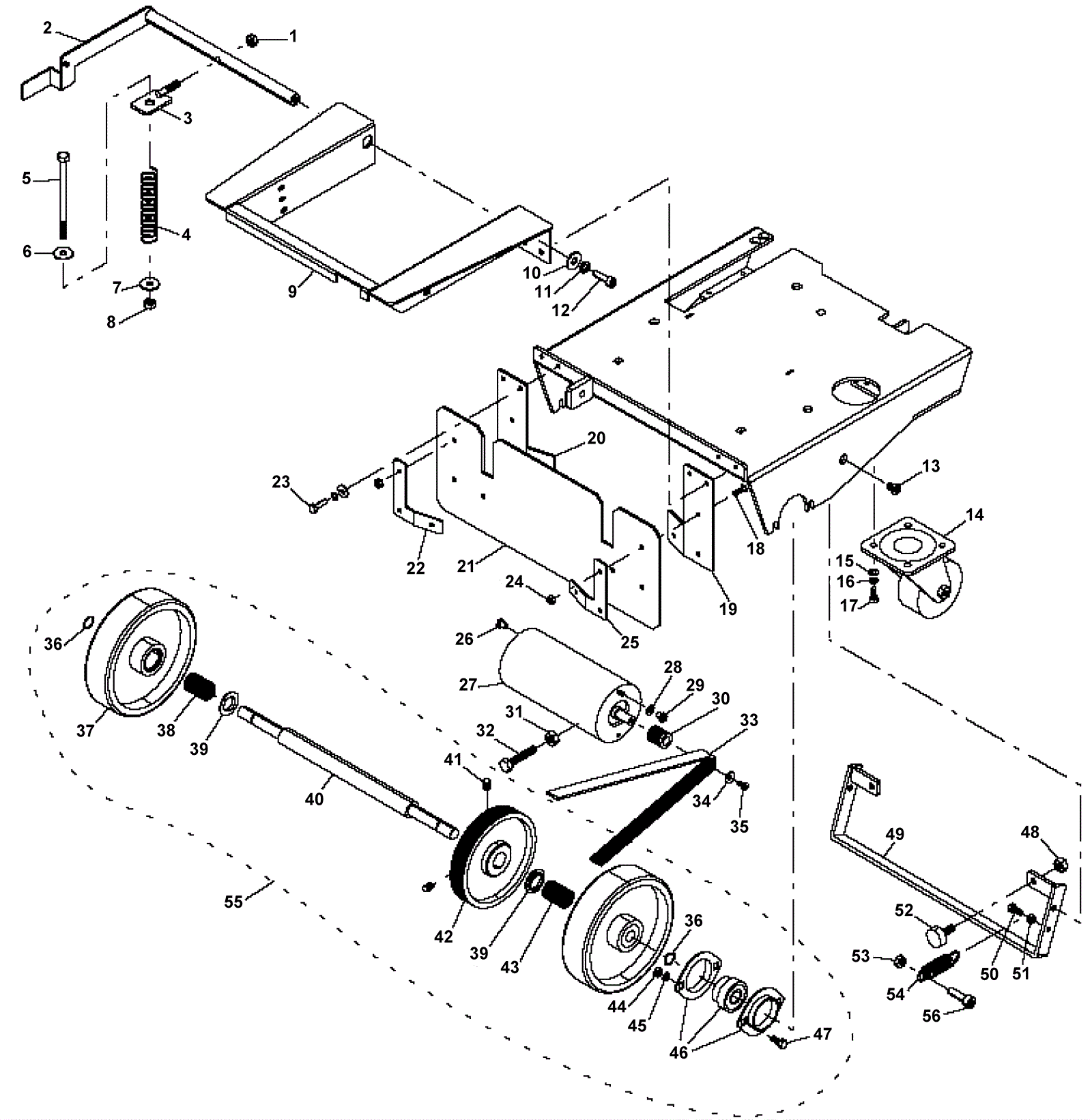

CLNSTAR 20 CS2000 Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-1926 Self locking nut $9.19 1 usually ships 1-5 days
2 154-1969 Lever (OBSOLETE) Call for price 1 usually ships 1-5 days
3 154-1970 Bracket (OBSOLETE) $29.21 1 usually ships 1-5 days
4 154-1971 Spring $12.93 1 usually ships 1-5 days
5 154-1972 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
6 154-1879 Washer $1.67 1 usually ships 1-5 days
7 154-1898 Washer $1.67 1 usually ships 1-5 days
8 154-1926 Self locking nut $9.19 1 usually ships 1-5 days
9 154-1973 Support (OBSOLETE) Call for price 1 usually ships 1-5 days
10 154-1898 Washer $1.67 1 usually ships 1-5 days
11 154-1900 Washer $1.67 1 usually ships 1-5 days
12 154-1974 Screw $4.09 1 usually ships 1-5 days
13 154-1975 Screw (OBSOLETE) Call for price 2 usually ships 1-5 days
14 154-1976 Caster wheel $123.76 2 usually ships 1-5 days
15 154-1977 Washer $1.67 12 usually ships 1-5 days
16 154-1978 Washer $1.67 12 usually ships 1-5 days
17 154-1979 Screw $2.76 8 usually ships 1-5 days
18 154-1980 Screw (OBSOLETE) $1.82 6 usually ships 1-5 days
19 154-1981 Left side plate (OBSOLETE) Call for price 1 usually ships 1-5 days
20 154-1982 Right side plate (OBSOLETE) Call for price 1 usually ships 1-5 days
21 154-1983 Rubber dust cover $40.43 1 usually ships 4-15 days
22 154-1984 Left side strip (OBSOLETE) $18.44 1 usually ships 1-5 days
23 154-1985 Screw $1.67 4 usually ships 4-15 days
24 154-1986 Nut $0.90 6 usually ships 4-15 days
25 154-1987 Right side strip (OBSOLETE) Call for price 1 usually ships 1-5 days
26 154-1988 Bushing $15.44 1 usually ships 1-5 days
27a 154-1856 Traction drive motor $1,150.58 1 usually ships 1-5 days
27b 154-3548 Carbon brush (sold each) $21.25 2 usually ships 4-15 days
28 154-1977 Washer $1.67 2 usually ships 1-5 days
30 154-1989 Drive motor pulley $18.22 1 usually ships 4-15 days
31 154-1926 Self locking nut $9.19 1 usually ships 1-5 days
32 154-1895 Screw $5.20 1 usually ships 1-5 days
33 154-1990 Belt $70.71 1 usually ships 4-15 days
34 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
35 154-1892 Screw $1.99 1 usually ships 1-5 days
36 154-1991 Clip $4.48 2 usually ships 4-15 days
37 154-1992 Wheel $153.97 2 usually ships 4-15 days
38 154-1993 Right side spring $21.66 1 usually ships 4-15 days
39 154-1994 Spacer $4.48 2 usually ships 1-5 days
40 154-1995 Wheel axle $67.14 1 usually ships 4-15 days
41 154-1996 Dowel $3.29 2 usually ships 1-5 days
42 154-1997 Pulley $91.86 1 usually ships 1-5 days
43 154-1998 Left side spring $21.15 1 usually ships 4-15 days
44 154-1977 Washer $1.67 4 usually ships 1-5 days
45 154-1978 Washer $1.67 4 usually ships 1-5 days
46 154-2548 Ball bearing $71.43 2 usually ships 4-15 days
47 154-1985 Screw $1.67 1 usually ships 4-15 days
48 154-2549 Self locking nut $10.64 2 usually ships 1-5 days
49 154-2550 Lever $71.50 1 usually ships 1-5 days
50 154-1979 Screw $2.76 1 usually ships 1-5 days
51 154-2551 Nut $3.11 1 usually ships 1-5 days
52 154-2552 Brake shoe $13.72 2 usually ships 1-5 days
53 154-2549 Self locking nut $10.64 1 usually ships 1-5 days
54 154-2553 Spring $24.70 1 usually ships 1-5 days
55 154-2554 Wheel kit $779.70 1 (includes 36-47) usually ships 4-15 days
56 154-2555 Screw $1.97 1 usually ships 1-5 days
N/S 154-1988 Bushing $15.44 1 usually ships 1-5 days
