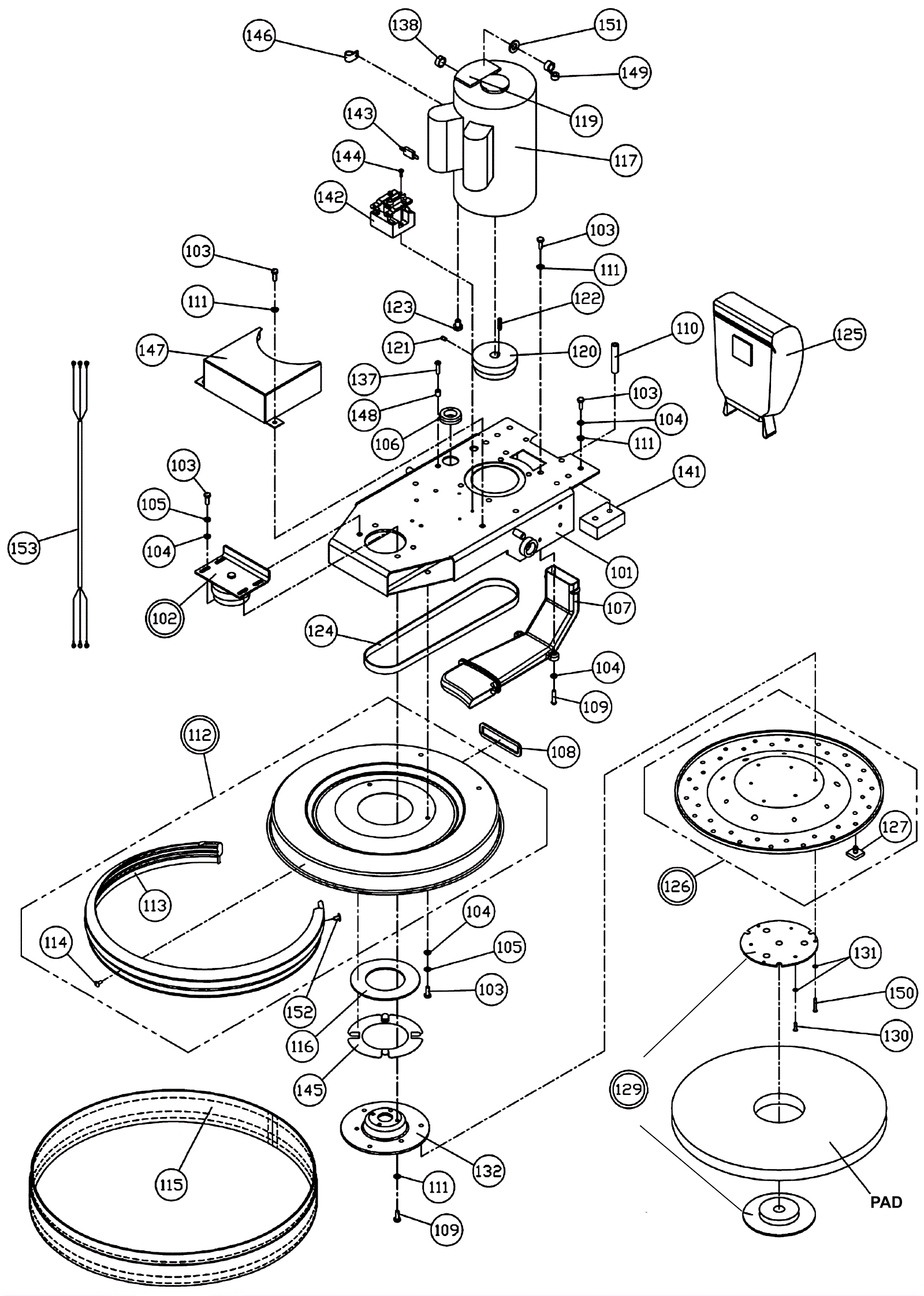

GAZELLE 17 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
101a 154-1796 Chassis with inserts (OBSOLETE) Call for price (GZ1700, GZ1720E and GZ1700C) usually ships 1-5 days
101b 154-1797 Chassis with inserts (OBSOLETE) Call for price (GZ2000, GZ2020E, GZ2000C and GZ2020K) usually ships 1-5 days
102 154-1798 3 inch spindle plate assembly (OBSOLETE) $137.29 usually ships 1-5 days
103 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 usually ships 16-20 days
104 999-0016 Washer 1/4 flat plain finish $0.99 ships same day
105 154-0600 Lock washer $2.29 usually ships 12-15 days
106 154-1799 Grommet (OBSOLETE) $4.94 usually ships 1-5 days
107a 154-1800 Dust tube (OBSOLETE) $60.24 (GZ1700, GZ1720E AND GZ1700C) usually ships 1-5 days
107b 154-1801 Dust tube (OBSOLETE) $67.87 (GZ2000, GZ2020E, GZ2000C and GZ2020K) usually ships 1-5 days
108 154-1802 Dust tube seal (OBSOLETE) $5.97 usually ships 1-5 days
109 999-0229 Screw 1/4-20 x 1 button head socket plain finish $0.99 ships same day
110 154-1803 Dust tube mount (OBSOLETE) $11.39 usually ships 1-5 days
111 999-0238 Washer 1/4 internal star lock zinc plated $0.99 ships same day
112a 154-1804 Shroud assembly (OBSOLETE) $212.39 (GZ1700, GZ1720E AND GZ1700C) usually ships 1-5 days
112b 154-1805 Shroud assembly (OBSOLETE) $270.00 (GZ2000, GZ2020E, GZ2000C and GZ2020K) usually ships 1-5 days
113a 154-1806 17 inch bumper (OBSOLETE) $42.90 (GZ1700, GZ1720E AND GZ1700C) usually ships 1-5 days
113b 154-1807 20 inch bumper (OBSOLETE) $57.09 (GZ2000, GZ2020E, GZ2000C and GZ2020K) usually ships 1-5 days
114 154-2360 Rivet $2.29 usually ships 1-5 days
115a 154-1808 17 inch skirt (OBSOLETE) $112.19 (GZ1700, GZ1720E AND GZ1700C) usually ships 1-5 days
115b N/A Not available Call for price 20 inch skirt (GZ2000, GZ2020E, GZ2000C and GZ2020K) usually ships 3-26 days
116 154-1809 Spindle seal (OBSOLETE) $8.51 usually ships 1-5 days
117a 154-1810 1.75HP motor $755.18 (GZ1700, GZ2000, GZ2020K, GZ1720E and GZ2020E) usually ships 1-5 days
117b 154-1811 1.5HP motor (OBSOLETE) $453.38 (GZ1700C and GZ2000C) usually ships 1-5 days
119 154-1812 Decal $4.95 usually ships 1-5 days
120a 154-1813 Rear pulley (OBSOLETE) $64.32 (GZ1700, GZ2000 and GZ2020K) usually ships 1-5 days
120b 154-1814 Rear pulley (OBSOLETE) $74.62 (GZ1700C, GZ2000C, GZ1720E and GZ2020E) usually ships 1-5 days
121 999-1452 Screw 1/4-20 x 3/8 set knurled point stainless steel $2.64 usually ships 1-5 days
122 154-0482 Square keyway $18.23 usually ships 1-5 days
123 154-1815 Screw 3/8 x 1/2 serrated flanged $1.33 usually ships 1-5 days
124a 154-1816 Poly v-belt (OBSOLETE) $56.21 (GZ1700) usually ships 1-5 days
124b 154-1817 Poly v-belt (OBSOLETE) $65.96 (GZ1700C and GZ1720E) usually ships 1-5 days
124c 154-1818 Poly v-belt (OBSOLETE) $62.73 (GZ2000 and GZ2020K) usually ships 1-5 days
124d 154-1819 Poly v-belt (OBSOLETE) $59.06 (GZ2000C AND GZ2020E) usually ships 1-5 days
125 154-0993 Dust bag $79.62 usually ships 12-15 days
126a 154-0912 17 inch pad driver with studs (OBSOLETE) $137.71 (GZ1700, GZ1720E and GZ1700C) usually ships 1-5 days
126b 154-1820 20 inch pad driver with studs (OBSOLETE) $150.21 (GZ2000, GZ2020E, GZ2000C ans GZ2020K) usually ships 1-5 days
127 154-0127 Velcro stud $2.29 ships same day
129a 991-2201 Center-Lok II pad holder - right hand thread (black) $39.08 ships same day
129b 991-2202 Big mouth pad holder set (blue) $42.60 (NON-OEM) ships same day
129c 991-8577 Pad retainer $23.04 (NON-OEM) ships same day
130 999-1475 Screw 10-24 x 5/8 button head socket zinc plated $0.99 ships same day
131 999-0089 Washer #10 internal star lock zinc plated $0.99 ships same day
132 154-1821 Pad adapter assembly $98.95 usually ships 1-5 days
137 999-1247 Screw 1/4-20 x 1 3/4 button head socket cap zinc plated $0.99 ships same day
138 154-1399 Grommet (OBSOLETE) $2.09 usually ships 1-5 days
141 154-1824 Weight (OBSOLETE) $83.68 (GZ2000, GZ2020E, GZ2000C and GZ2020K) usually ships 1-5 days
142a 154-1825 Relay (OBSOLETE) $126.20 (GZ1700, GZ1700C. GZ2000 and GZ2000C) usually ships 1-5 days
142b 154-1826 Relay (OBSOLETE) $101.53 (GZ1720E, GZ2020E and GZ2020K) usually ships 1-5 days
143 N/A Not available Call for price 5amp diode usually ships 3-26 days
144 999-1543 Screw 10-24 x 3/4 button head socket zinc plated $0.99 usually ships 1-5 days
145 154-1828 Retainer (OBSOLETE) $15.05 usually ships 1-5 days
146a 154-1829 Nylon clamp $2.29 (GZ1700, GZ1700C. GZ2000 and GZ2000C) usually ships 12-15 days
146b 154-1830 Nylon clamp (OBSOLETE) $0.99 (GZ1720E, GZ2020E and GZ2020K) usually ships 1-5 days
147 154-1831 Relay cover (OBSOLETE) $71.62 usually ships 1-5 days
148 154-1832 Bumper (OBSOLETE) $0.99 usually ships 1-5 days
149 154-2133 Cable tie $2.29 usually ships 12-15 days
150 999-0014 Screw 10-24 x 3/4 button head socket stainless steel $0.99 ships same day
151a 999-1530 Washer 3/8 flat nylon $0.99 (GZ1700, GZ1700C. GZ2000 and GZ2000C) ships same day
151b 154-1833 Washer 5/16 flat nylon $44.43 (GZ1720E, GZ2020E and GZ2020K) usually ships 1-5 days
152 154-1834 Pop rivet $1.84 usually ships 1-5 days
153a 154-1835 Motor wiring (OBSOLETE) $34.11 (GZ1700, GZ1700C. GZ2000 and GZ2000C) usually ships 1-5 days
153b 154-1836 Motor wiring (OBSOLETE) $82.71 (GZ1720E, GZ2020E and GZ2020K) usually ships 1-5 days
