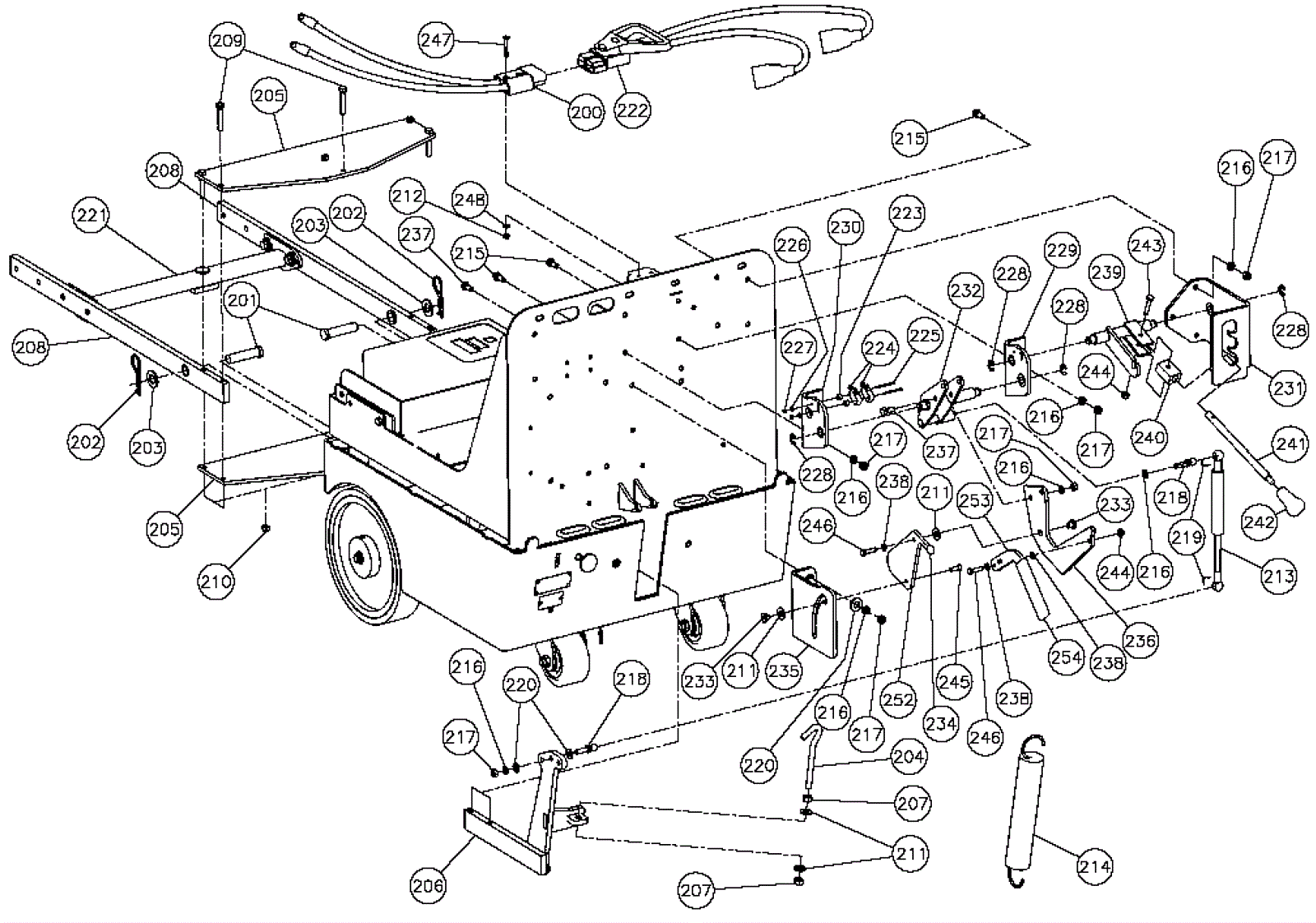

POWERGLIDEXPRESS Frame Assembly - Manual Lift

#PartDescriptionPriceReqNotesAvailability
200 154-1620 Battery connector cable (OBSOLETE) $62.77 1 usually ships 1-5 days
201 154-1540 Clevis pin $16.65 2 usually ships 1-5 days
202 997-2515 Cotter pin $0.99 2 ships same day
203 154-1538 Nylon pivot washer $27.57 2 usually ships 1-5 days
204 154-1589 J hook $20.63 1 usually ships 1-5 days
205 154-1542 Rear cross brace weldment (OBSOLETE) $58.81 1 usually ships 1-5 days
206 154-1572 Linking arm weldment (OBSOLETE) $106.89 1 usually ships 1-5 days
207 999-0959 Nut 3/8-16 hex $1.42 2 ships same day
208 154-1541 Lifting arm (OBSOLETE) $90.37 2 usually ships 1-5 days
209 999-1207 Screw 5/16-18 x 2 1/2 hex head stainless steel $2.42 6 ships same day
210 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 6 ships same day
211 999-1254 Washer 3/8 SAE flat zinc plated $0.99 4 ships same day
212 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
213 154-1568 Spring $100.40 1 usually ships 1-5 days
214 154-1566 Extension spring $57.82 1 usually ships 1-5 days
215 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 7 ships same day
216 999-0028 Washer 5/16 split lock plain finish $0.99 9 ships same day
217 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 8 ships same day
218 154-1555 13mm ball $14.76 2 usually ships 1-5 days
219 154-1573 Retainer pin $1.46 2 usually ships 1-5 days
220 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
221 154-1550 Front cross brace weldment (OBSOLETE) $84.26 1 usually ships 1-5 days
222 154-1621 Battery connector cable $101.64 1 usually ships 1-5 days
223 154-1575 Microswitch spacer $14.78 2 usually ships 1-5 days
224 154-0382 Microswitch (OBSOLETE) $25.15 2 usually ships 4-15 days
225 999-1453 Screw 4-40 x 1 1/2 pan head phillips stainless steel $0.99 2 usually ships 1-5 days
226 999-0985 Washer #4 SAE flat $0.99 2 ships same day
227 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 2 ships same day
228 154-0841 Retaining ring $2.43 4 usually ships 1-5 days
229 154-1622 Right side actuator lifting bracket $188.13 1 usually ships 1-5 days
230 154-1623 Left side actuator lifting bracket $183.57 1 usually ships 1-5 days
231 154-1624 Pad pressure adjustment bracket $169.65 1 usually ships 1-5 days
232 154-1570 Actuator lifting arm weldment (OBSOLETE) $86.23 1 usually ships 1-5 days
233 154-1585 Pivot pin (OBSOLETE) $24.78 2 usually ships 1-5 days
234 154-2143 Plug $2.29 1 usually ships 4-15 days
235 154-1582 Manual lifting bracket (OBSOLETE) $52.59 1 usually ships 1-5 days
236 154-1584 Manual lifting arm (OBSOLETE) $56.62 1 usually ships 1-5 days
237 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
238 154-0600 Lock washer $2.29 3 usually ships 4-15 days
239 154-1626 Pivot weldment (OBSOLETE) $95.85 1 usually ships 1-5 days
240 154-1563 Spacer (OBSOLETE) $50.57 1 usually ships 1-5 days
241 154-1564 Adjustment rod (OBSOLETE) $27.98 1 usually ships 1-5 days
242 154-1565 Tapered knob $30.56 1 usually ships 1-5 days
243 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel $0.99 1 ships same day
244 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
245 154-1580 Screw 1/4-20 x 5/8 $2.29 1 usually ships 1-5 days
246 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 2 ships same day
247 999-1451 Screw 10-24 x 1 1/2 truss head stainless steel $0.99 2 usually ships 1-5 days
248 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
249 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
250 999-1254 Washer 3/8 SAE flat zinc plated $0.99 6 ships same day
252 154-1581 Manual lifting latch (OBSOLETE) $41.27 1 usually ships 1-5 days
253 154-1579 Manual lifting handle weldment (OBSOLETE) $51.47 1 usually ships 1-5 days
254 154-1583 Vinyl handle grip (yellow) (OBSOLETE) $11.20 1 usually ships 1-5 days
