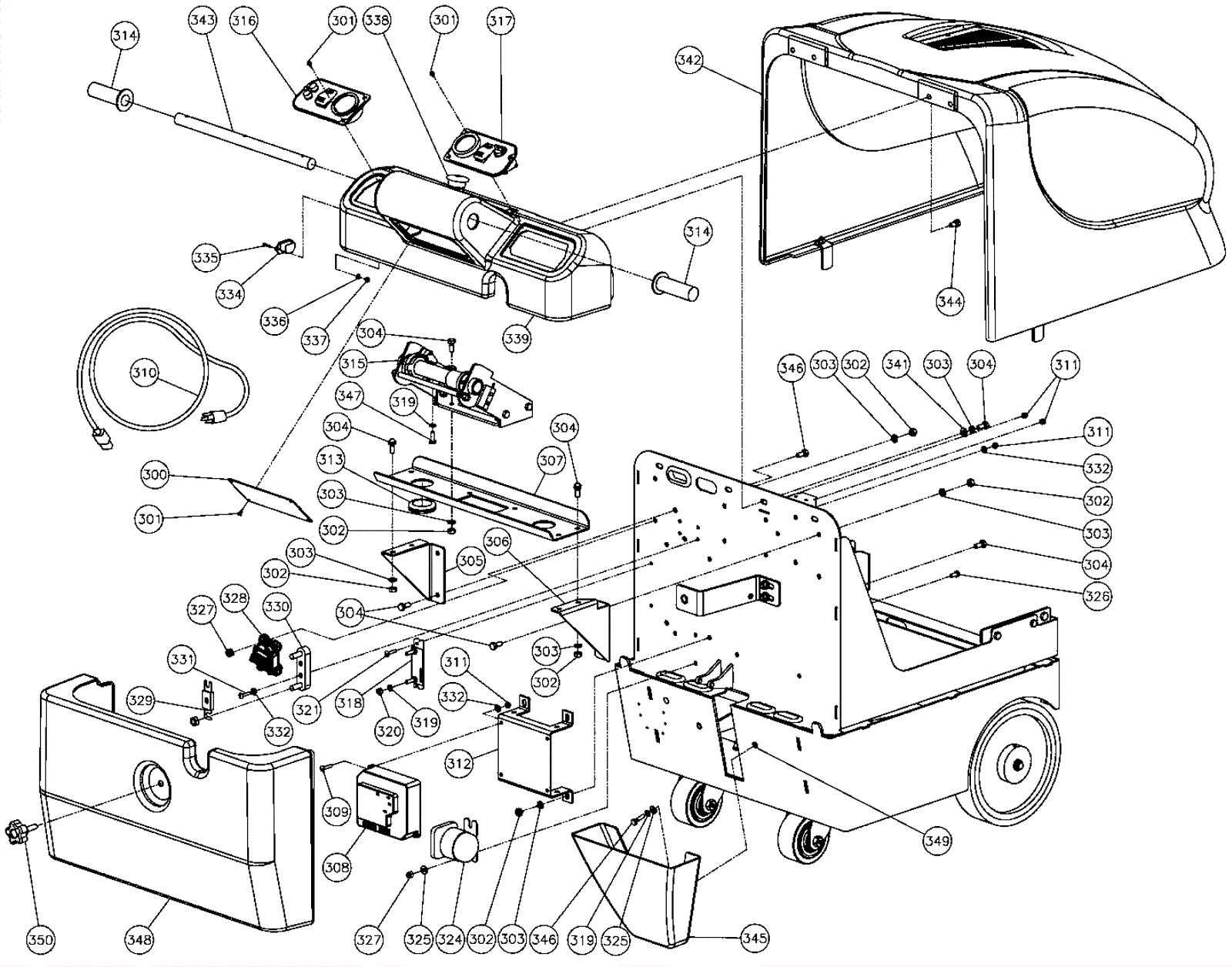

POWERGLIDEXPRESS Frame Assembly 3

#PartDescriptionPriceReqNotesAvailability
300 154-1627 Access panel (OBSOLETE) $40.25 1 usually ships 1-5 days
301 154-1272 Screw 8 x 3/8 $2.29 10 usually ships 1-5 days
302 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 16 ships same day
303 999-0028 Washer 5/16 split lock plain finish $0.99 20 ships same day
304 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 20 ships same day
305 154-1628 Left side bracket (OBSOLETE) $51.70 1 usually ships 1-5 days
306 154-1629 Right side bracket (OBSOLETE) $51.70 1 usually ships 1-5 days
307 154-1630 Mounting plate (OBSOLETE) $57.13 1 usually ships 1-5 days
308 154-1560 36V controller $704.56 1 usually ships 1-5 days
309 999-1031 Screw 10-24 x 1 truss head phillips stainless steel $0.99 2 ships same day
310 154-1528 14/3 extension cord 6 1/2 foot $42.68 1 usually ships 4-15 days
311 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 8 ships same day
312 154-1631 Controller bracket (OBSOLETE) $56.47 1 usually ships 1-5 days
313 154-0584 Grommet $10.15 1 usually ships 1-5 days
314 154-1758 Handle weldment $22.68 2 usually ships 1-5 days
315 154-1632 Motion controller assembly (OBSOLETE) $744.70 1 usually ships 1-5 days
316 154-1633 Left dashboard panel (OBSOLETE) $275.55 1 usually ships 1-5 days
317 154-1634 Right dashboard panel (OBSOLETE) $154.14 1 usually ships 1-5 days
318 154-1635 Shunt (OBSOLETE) $151.60 1 usually ships 1-5 days
319 154-0600 Lock washer $2.29 5 usually ships 4-15 days
320 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
321 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
324 154-3551 36V contactor $221.33 1 usually ships 4-15 days
325 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
326 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
327 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
329 154-1576 50amp fuse $31.19 1 usually ships 1-5 days
330 154-1636 Fuseblock $90.85 2 usually ships 1-5 days
331 999-1031 Screw 10-24 x 1 truss head phillips stainless steel $0.99 4 ships same day
332 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
334 154-1518 Screw mounting power inlet $8.03 1 usually ships 1-5 days
335 999-0249 Screw 6-32 x 5/8 round head slotted zinc plated $0.99 2 ships same day
336 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
337 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
338 154-1481 Sealed switch $153.95 1 usually ships 1-5 days
339 154-1637 Dashboard cover (OBSOLETE) $103.24 1 usually ships 1-5 days
341 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
342 154-1638 Battery cover assembly (OBSOLETE) $466.61 1 usually ships 1-5 days
343 154-1639 Rod (OBSOLETE) $83.35 1 usually ships 1-5 days
344 999-1450 Bolt 5/16-18 x 5/8 hex head stainless steel $0.99 4 usually ships 1-5 days
345 154-1640 Bottom cover (OBSOLETE) $87.59 1 usually ships 1-5 days
346 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 4 ships same day
347 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 1 ships same day
348a 154-1641 Back cover (OBSOLETE) $118.00 1 usually ships 1-5 days
348b 154-1642 Back cover (OBSOLETE) Call for price 1 (manual lift) usually ships 1-5 days
349 154-0783 Compression insert $3.70 2 usually ships 1-5 days
350 154-1643 Knob $108.63 1 usually ships 1-5 days
