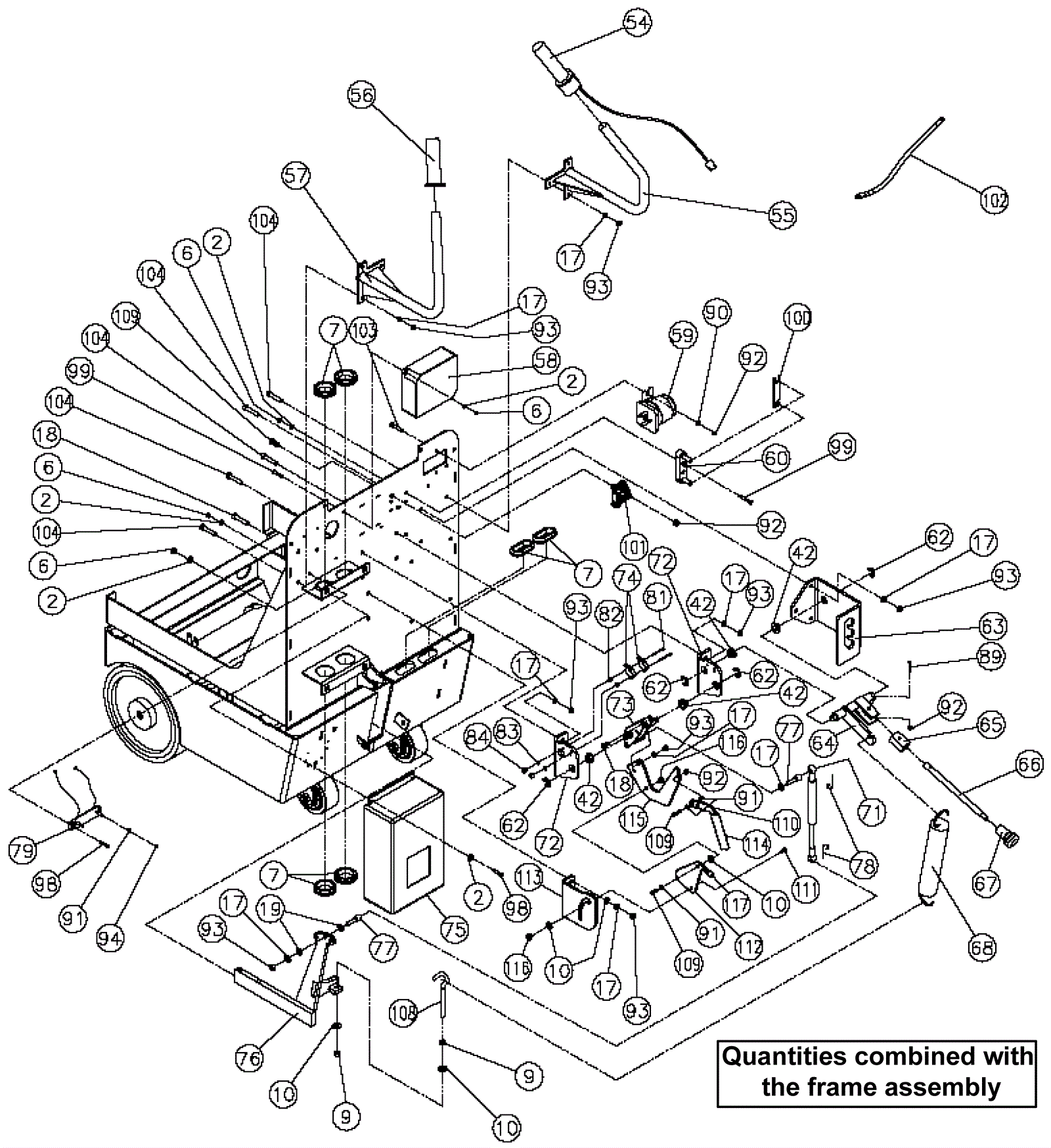

POWERGLIDE Manual Lift Assembly

#PartDescriptionPriceReqNotesAvailability
2 999-0006 Washer 3/16 flat zinc plated $0.99 22 ships same day
6 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 14 ships same day
7 154-0584 Grommet $10.15 8 usually ships 1-5 days
9 999-0959 Nut 3/8-16 hex $1.42 11 ships same day
10 999-1254 Washer 3/8 SAE flat zinc plated $0.99 43 ships same day
17 999-0028 Washer 5/16 split lock plain finish $0.99 24 ships same day
18 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
19 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
42 154-1551 Flanged bushing $14.00 6 usually ships 12-17 days
54 154-1557 Throttle assembly $161.35 1 usually ships 1-5 days
55 154-1558 Right handle bar weldment (OBSOLETE) $62.50 1 usually ships 1-5 days
56 154-1758 Handle weldment $22.68 1 usually ships 1-5 days
57 154-1559 Left handle bar weldment (OBSOLETE) $62.50 1 usually ships 1-5 days
58 154-1560 36V controller $704.56 1 usually ships 1-5 days
59 154-3551 36V contactor $221.33 1 usually ships 12-17 days
60 154-1636 Fuseblock $90.85 1 usually ships 1-5 days
62 154-0841 Retaining ring $2.43 4 usually ships 1-5 days
63 154-1562 Adjustment bracket (OBSOLETE) $73.57 1 usually ships 1-5 days
64 154-1531 Knob $25.98 1 usually ships 1-5 days
65 154-1563 Spacer (OBSOLETE) $50.57 1 usually ships 1-5 days
66 154-1564 Adjustment rod (OBSOLETE) $27.98 1 usually ships 1-5 days
67 154-1565 Tapered knob (OBSOLETE) $30.56 1 usually ships 1-5 days
68 154-1566 Extension spring $57.82 1 usually ships 1-5 days
71a 154-1567 Spring (OBSOLETE) $74.81 1 (24 inch) usually ships 1-5 days
71b 154-1568 Spring $100.40 1 (28 inch) usually ships 1-5 days
72 154-1569 Actuator lifting bracket (OBSOLETE) $56.45 2 usually ships 1-5 days
73 154-1570 Actuator lifting arm weldment (OBSOLETE) $86.23 1 usually ships 1-5 days
74 154-0382 Microswitch (OBSOLETE) $25.15 2 usually ships 12-17 days
75 154-1571 36V battery charger $1,171.98 1 usually ships 1-5 days
76 154-1572 Linking arm weldment (OBSOLETE) $106.89 1 usually ships 1-5 days
77 154-1555 13mm ball $14.76 2 usually ships 1-5 days
78 154-1573 Retainer pin $1.46 2 usually ships 1-5 days
79 154-1574 Shunt $219.30 1 usually ships 1-5 days
81 999-1453 Screw 4-40 x 1 1/2 pan head phillips stainless steel $0.99 2 usually ships 1-5 days
82 154-1575 Microswitch spacer $14.78 2 usually ships 1-5 days
83 999-0985 Washer #4 SAE flat $0.99 2 ships same day
84 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 2 ships same day
89 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel $0.99 1 ships same day
90 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
91 154-0600 Lock washer $2.29 2 usually ships 12-17 days
92 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 5 ships same day
93 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 17 ships same day
94 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
98 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 6 ships same day
99 999-1031 Screw 10-24 x 1 truss head phillips stainless steel $0.99 4 ships same day
100 154-1576 50amp fuse $31.19 1 usually ships 1-5 days
101 154-1577 150amp fuse $87.59 1 usually ships 1-5 days
102 154-1578 Cable $98.04 1 usually ships 1-5 days
103 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
104 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 13 ships same day
108 154-1589 J hook $20.63 1 usually ships 1-5 days
109 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 4 ships same day
110 154-1579 Manual lifting handle weldment (OBSOLETE) $51.47 1 usually ships 1-5 days
111 154-1580 Screw 1/4-20 x 5/8 $2.29 1 usually ships 1-5 days
112 154-1581 Manual lifting latch (OBSOLETE) $41.27 1 usually ships 1-5 days
113 154-1582 Manual lifting bracket (OBSOLETE) $52.59 1 usually ships 1-5 days
114 154-1583 Vinyl handle grip (yellow) (OBSOLETE) $11.20 1 usually ships 1-5 days
115 154-1584 Manual lifting arm (OBSOLETE) $56.62 1 usually ships 1-5 days
116 154-1585 Pivot pin (OBSOLETE) $24.78 2 usually ships 1-5 days
117 154-2143 Plug $2.29 1 usually ships 12-17 days
