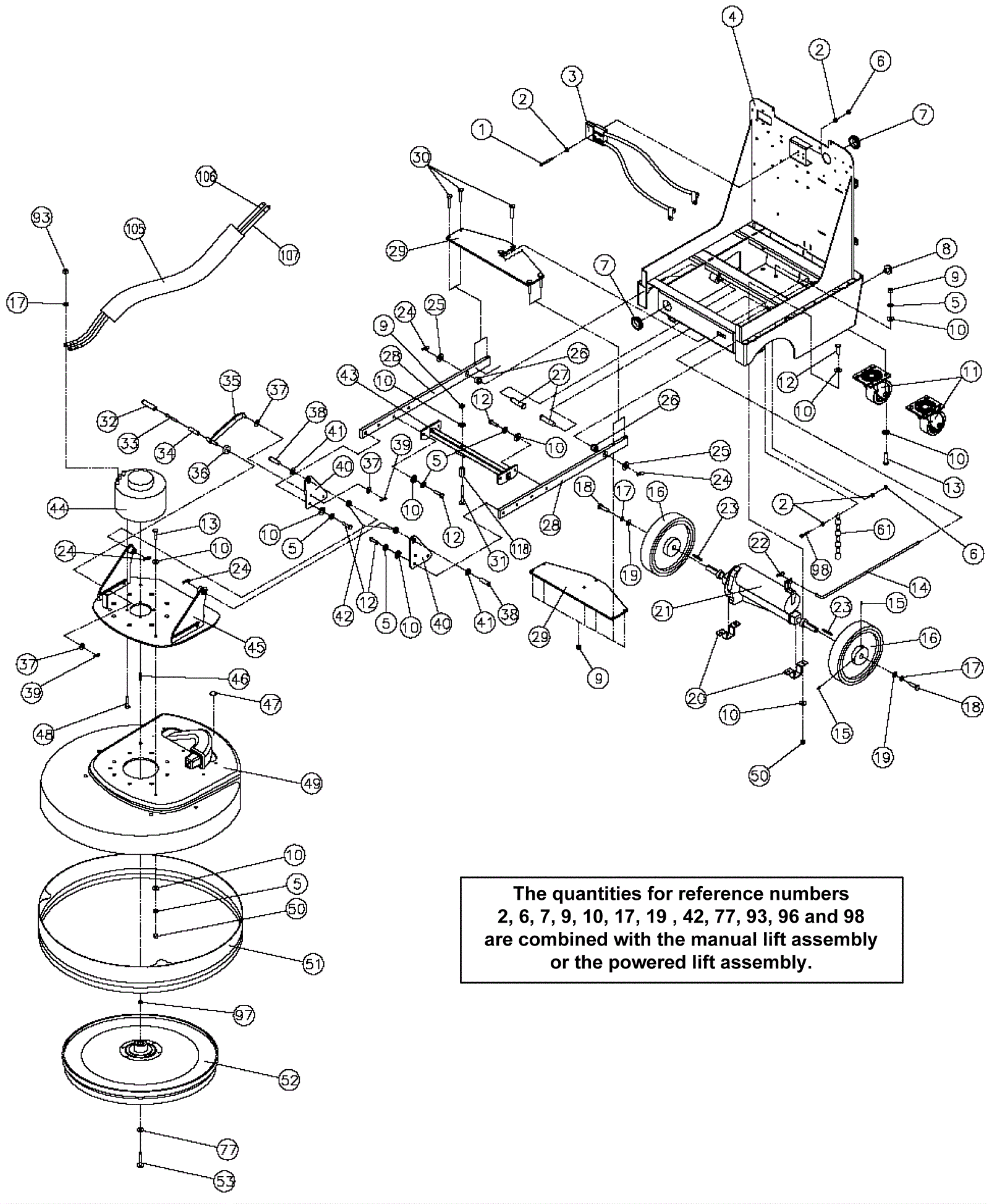

POWERGLIDE Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1451 Screw 10-24 x 1 1/2 truss head stainless steel $0.99 4 usually ships 1-5 days
2 999-0006 Washer 3/16 flat zinc plated $0.99 22 ships same day
3 154-1529 Cable connector $180.88 1 usually ships 1-5 days
4 154-1530 Frame weldment (OBSOLETE) $640.72 1 usually ships 1-5 days
5 154-0633 Lock washer $1.67 20 usually ships 1-5 days
6 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 14 ships same day
7 154-0584 Grommet $9.33 8 usually ships 1-5 days
8 154-1531 Knob $23.62 1 usually ships 1-5 days
9 999-0959 Nut 3/8-16 hex $1.42 11 ships same day
10 999-1254 Washer 3/8 SAE flat zinc plated $0.99 43 ships same day
11 154-1532 4 inch caster wheel with seal (gray) $89.18 2 usually ships 4-15 days
12 154-0757 Screw 3/8 x 1 $1.67 12 usually ships 1-5 days
13 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 12 ships same day
14 154-1533 Transaxle rod (OBSOLETE) $48.08 1 usually ships 1-5 days
15 999-1452 Screw 1/4-20 x 3/8 set knurled point stainless steel $2.64 4 usually ships 1-5 days
16 154-1534 10 inch polyurethane wheel (OBSOLETE) $224.35 2 usually ships 1-5 days
17 999-0028 Washer 5/16 split lock plain finish $0.99 24 ships same day
18 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
19 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
20 154-1535 Transaxle bracket $31.82 2 usually ships 1-5 days
21 154-1536 Transaxle assembly $1,232.93 1 usually ships 1-5 days
22 154-0646 Cotter pin $1.67 1 usually ships 1-5 days
23 154-1537 Square keyway $18.02 2 usually ships 1-5 days
24 997-2515 Cotter pin $0.99 4 ships same day
25 154-1538 Nylon pivot washer $25.35 2 usually ships 1-5 days
26 154-1539 Flanged bushing $19.05 2 usually ships 1-5 days
27 154-1540 Clevis pin $15.32 2 usually ships 1-5 days
28 154-1541 Lifting arm (OBSOLETE) $82.15 2 usually ships 1-5 days
29 154-1542 Rear cross brace weldment (OBSOLETE) $53.46 1 usually ships 1-5 days
30 999-1207 Screw 5/16-18 x 2 1/2 hex head stainless steel $2.42 6 ships same day
31 999-0242 Screw 3/8-16 x 4 carriage head grade 5 zinc $1.14 1 ships same day
32 154-1543 Vinyl caplug $3.56 1 usually ships 1-5 days
33 999-1331 Screw 1/4-20 x 2 1/4 hex head zinc $0.99 1 usually ships 1-5 days
34 154-1544 Spacer $43.81 1 usually ships 1-5 days
35 154-1545 Latch weldment $73.85 1 usually ships 1-5 days
36 154-1546 Nylon spacer $29.70 1 usually ships 1-5 days
37 154-1547 Nylon washer $25.12 3 usually ships 1-5 days
38 154-1548 Clevis pin $7.98 2 usually ships 1-5 days
39 154-0699 Presto pin $1.67 2 usually ships 1-5 days
40 154-1549 Plate (OBSOLETE) $21.80 2 usually ships 1-5 days
41 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
42 154-1551 Flanged bushing $12.88 6 usually ships 4-15 days
43 154-1550 Front cross brace weldment (OBSOLETE) $76.60 1 usually ships 1-5 days
44 154-1552 2.5 HP motor $1,517.12 1 usually ships 1-5 days
45 154-1553 Motor plate weldment (OBSOLETE) $147.49 1 usually ships 1-5 days
46 154-1459 Square keyway $19.23 1 usually ships 1-5 days
47 154-0718 Felt dot $1.74 1 usually ships 4-15 days
48 999-0616 Screw 3/8-16 x 5/8 socket head alloy plain finish $0.99 4 ships same day
49 154-1508 28 inch deck assembly (OBSOLETE) $685.29 1 usually ships 1-5 days
50 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 8 ships same day
51 154-1513 28 inch steel skirt assembly $399.49 1 usually ships 1-5 days
52 154-0772 28 inch pad driver assembly $667.75 1 usually ships 1-5 days
53 999-0384 Screw 1/4-20 x 1 1/2 button head socket cap plain finish $0.99 1 ships same day
61 154-1554 #14 chain zinc plated (sold by the inch) $9.80 6 in usually ships 1-5 days
77 154-1555 13mm ball $13.58 2 usually ships 1-5 days
93 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 17 ships same day
97 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 1 ships same day
98 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 6 ships same day
105 154-1649 Braided sleeving (sold by the foot) $8.21 5 ft usually ships 1-5 days
106 154-1650 66 inch fuse cable (OBSOLETE) $54.85 1 usually ships 1-5 days
107 154-1651 66 inch shunt cable (OBSOLETE) $71.51 1 usually ships 1-5 days
118 154-1556 Vinyl caplug (yellow) $26.72 1 usually ships 1-5 days
N/S 999-1158 Washer #6 flat stainless steel $0.99 10 ships same day
