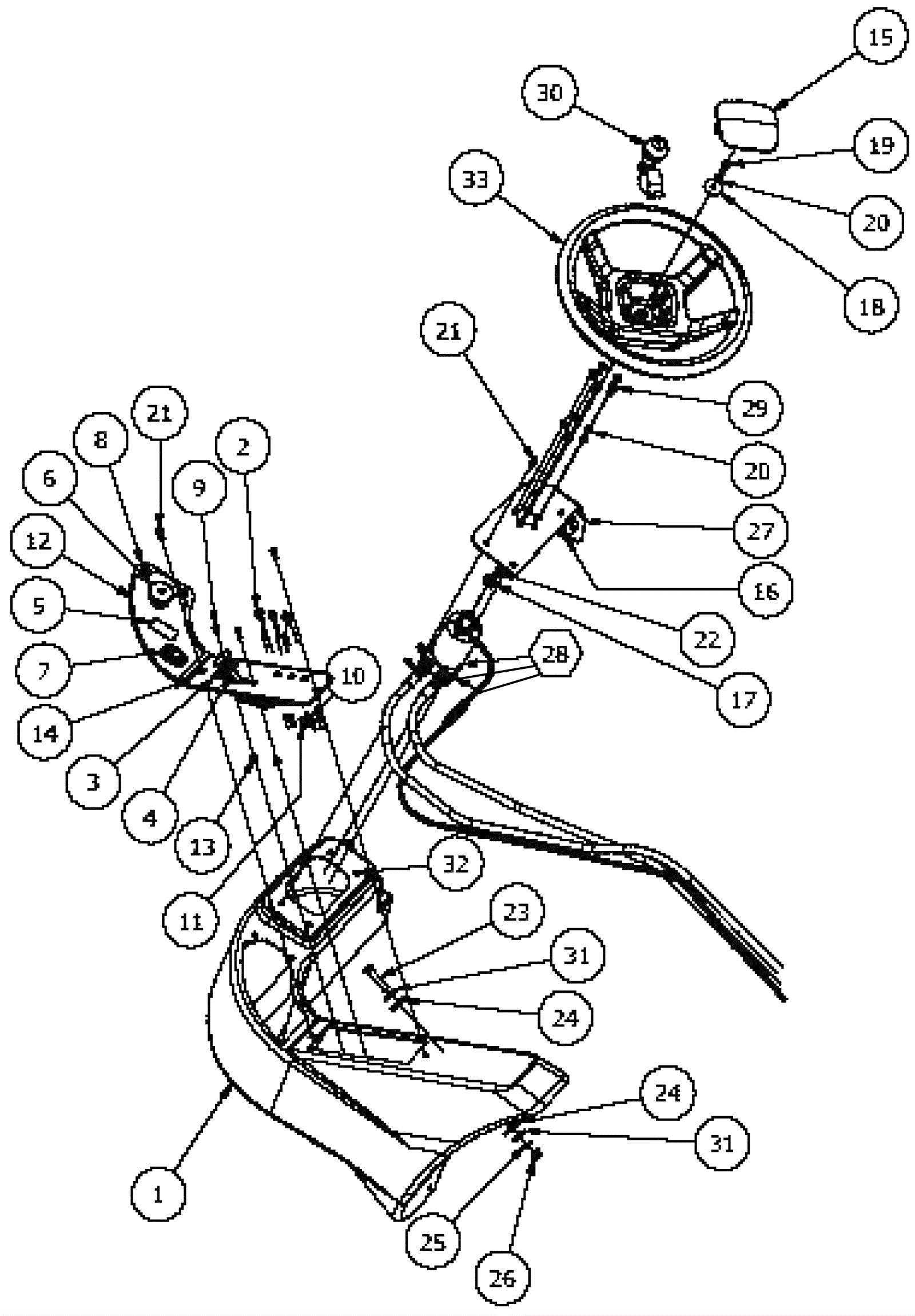

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
154-2281
|
Control arm (OBSOLETE) |
1 |
|
|
2 |
154-0770
|
External resistor light (red) (OBSOLETE) |
3 |
|
|
3 |
154-2282
|
Hour meter |
1 |
|
|
4 |
154-2283
|
62 inch throttle cable |
1 |
|
|
5 |
154-2284
|
Hole plug |
1 |
|
|
6 |
154-0771
|
Emergency stop switch |
1 |
|
|
7 |
154-1356
|
Rocker switch |
1 |
|
|
8 |
154-2285
|
Plate (OBSOLETE) |
1 |
|
|
9 |
154-0800
|
Screw 10-24 x 5/8 button head stainless steel |
3 |
|
|
10 |
154-2286
|
Female connector |
3 |
|
|
11 |
154-2287
|
Male connector |
2 |
|
|
12 |
154-2288
|
Panel decal (OBSOLETE) |
1 |
|
|
13 |
154-0649
|
Nut 10-24 spin lock |
2 |
|
|
14 |
154-2289
|
Bottom panel decal (OBSOLETE) |
1 |
|
|
15 |
154-2290
|
Steering wheel cover (OBSOLETE) |
1 |
|
|
16 |
154-0579
|
Key switch assembly with key |
1 |
|
|
17 |
154-2206
|
Spacer |
1 |
|
|
18 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
|
19 |
999-1054
|
Bolt 1/4-28 x 1 hex head stainless steel |
1 |
|
|
20 |
154-0600
|
Lock washer |
6 |
|
|
21 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
8 |
|
|
22 |
154-2291
|
Square keyway |
1 |
|
|
23 |
154-1203
|
Screw 3/8 x 1 3/4 |
6 |
|
|
24 |
999-0033
|
Washer 7/16 SAE flat |
12 |
|
|
25 |
154-0633
|
Lock washer |
6 |
|
|
26 |
999-0959
|
Nut 3/8-16 hex |
6 |
|
|
27 |
154-2292
|
Steering mounting plate (OBSOLETE) |
1 |
|
|
28a |
154-2293
|
Steering motor assembly |
1 |
(includes 28b-28f) |
|
28b |
154-2294
|
Fitting |
2 |
|
|
28c |
154-2295
|
Steering motor |
1 |
|
|
28d |
154-2296
|
89 inch hydraulic hose assembly |
2 |
|
|
28e |
154-2297
|
Pressure release valve |
1 |
|
|
28f |
154-1128
|
1/4 inch nylon tubing (sold by the foot) |
92 in |
|
|
29 |
999-1164
|
Bolt 1/4-28 x 5/8 hex head stainless steel |
5 |
|
|
30 |
154-2298
|
Steering knob (OBSOLETE) |
1 |
|
|
31 |
999-0032
|
Washer 3/8 USS flat plain finish |
12 |
|
|
32 |
154-0824
|
T-nut insert 1/4-20 |
8 |
|
|
33 |
154-2299
|
Steering wheel with hub (OBSOLETE) |
1 |
|
|
