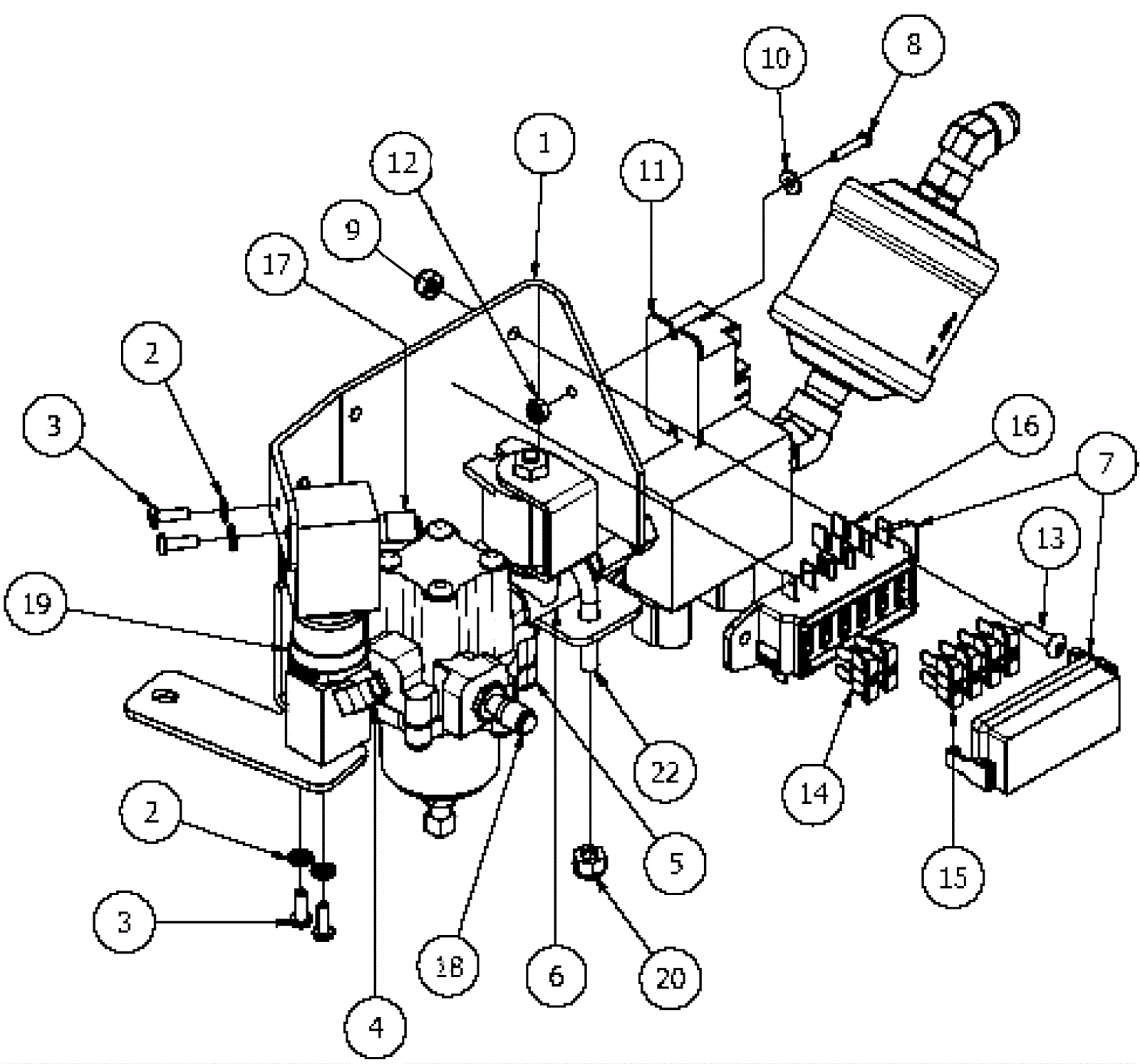

Engine Fuel Injection Assembly

#PartDescription ReqNotesAvailability
1 154-2252 Regulator bracket 1
2 999-0266 Washer #8 SAE flat stainless steel 4
3 999-1445 Screw 8-32 x 1/2 button head 4
4 154-2254 Fitting 1/4 x 1/8 inch 1
5 154-2255 Fuel injection regulator 1
6 154-2256 12V fuelock 1
7 154-2257 Fitting 1
8 999-0249 Screw 6-32 x 5/8 round head slotted zinc plated 2
9 999-0086 Nut 10-32 nylon insert lock zinc plated 2
10 999-1158 Washer #6 flat stainless steel 2
11 154-0665 12V circuit relay board 1
12 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
13 999-1475 Screw 10-24 x 5/8 button head socket zinc plated 2
14 154-0909 20amp fuse 2
15 154-0803 7 1/2amp fuse 4
16 154-2258 Terminal adapter 2
17 154-2259 90 degree elbow barb 1
18 154-2260 Air tank valve 1
19 154-2261 Propane fuel injector 1
20 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
21 154-2262 Vaporizer manifold assembly 1
22 154-2263 U bolt 1
N/S 154-2786 Hydraulic reservoir 1
N/S 154-2787 O-ring 1
