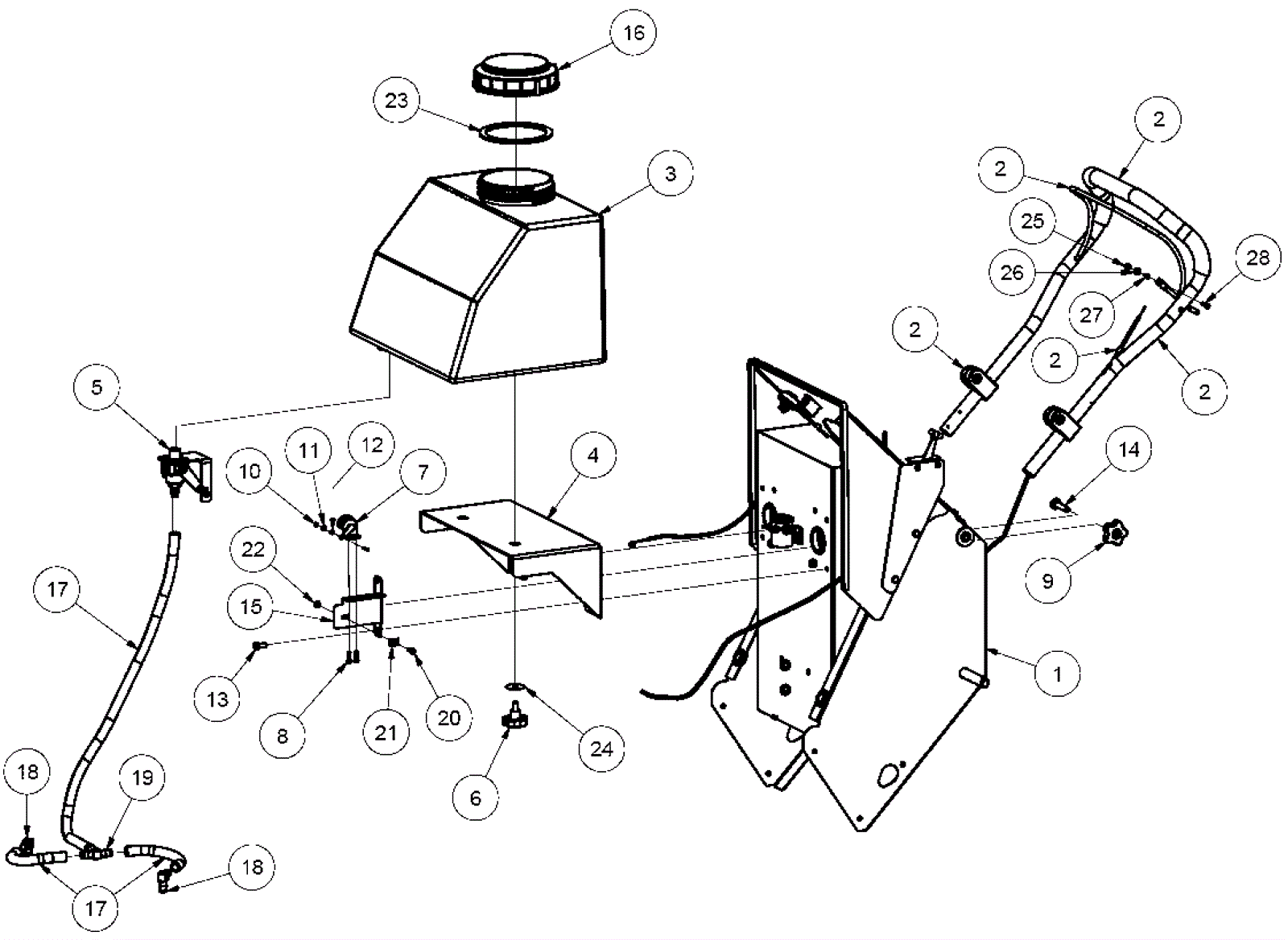

MONGREL Rear Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-1772 30 inch bulkhead (OBSOLETE) $1,110.08 1 usually ships 1-5 days
2a 154-0324 Handle assembly $178.53 1 usually ships 16-22 days
2b 154-0316 Bail $110.58 1 usually ships 16-22 days
2c 154-0327 Foam handle grip $90.99 1 usually ships 1-5 days
2d 154-0325 Pivot handle slide block $32.25 2 usually ships 16-22 days
2e 154-0541 Throttle control cable $49.90 1 usually ships 16-22 days
3 154-1773 Tank $313.23 1 usually ships 1-5 days
4 154-1774 Tank bracket $130.97 1 usually ships 1-5 days
5 154-1775 Valve assembly $272.82 1 usually ships 16-22 days
6 154-1776 Knob assembly $55.69 2 usually ships 16-22 days
7 154-1777 Clutch switch $197.34 1 usually ships 16-22 days
8 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
9 154-0326 Knob $42.81 2 usually ships 16-22 days
10 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 1 ships same day
11 999-1158 Washer #6 flat stainless steel $0.99 1 ships same day
12 154-0242 Threaded spacer $7.70 1 usually ships 16-22 days
13 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 12 ships same day
14 999-0708 Screw 3/8-16 x 2 carriage head grade 5 zinc $1.09 2 ships same day
15 154-1778 Clutch switch bracket $96.14 1 usually ships 1-5 days
16 154-1779 6 inch screw on cap $72.09 1 usually ships 16-22 days
17 154-1780 Vinyl tubing (sold by the inch) $9.99 3 usually ships 1-5 days
18 154-1224 Elbow fitting $5.50 2 usually ships 1-5 days
19 154-1221 Tee fitting $4.44 1 usually ships 1-5 days
20 178-0148 Bolt 5 x 18 $0.99 1 usually ships 1-5 days
21 178-0150 Clamp $3.67 1 usually ships 1-5 days
22 154-1253 Flanged nut $2.29 1 usually ships 1-5 days
23 154-1275 Gasket $67.53 1 usually ships 16-22 days
24 999-1446 Washer 3/8 x 1 1/2 fender stainless steel $0.99 2 ships same day
25 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
26 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
27 154-0640 Bushing $7.19 1 usually ships 16-22 days
28 154-0705 Screw 10-24 x 7/8 button head $2.29 1 usually ships 16-22 days
