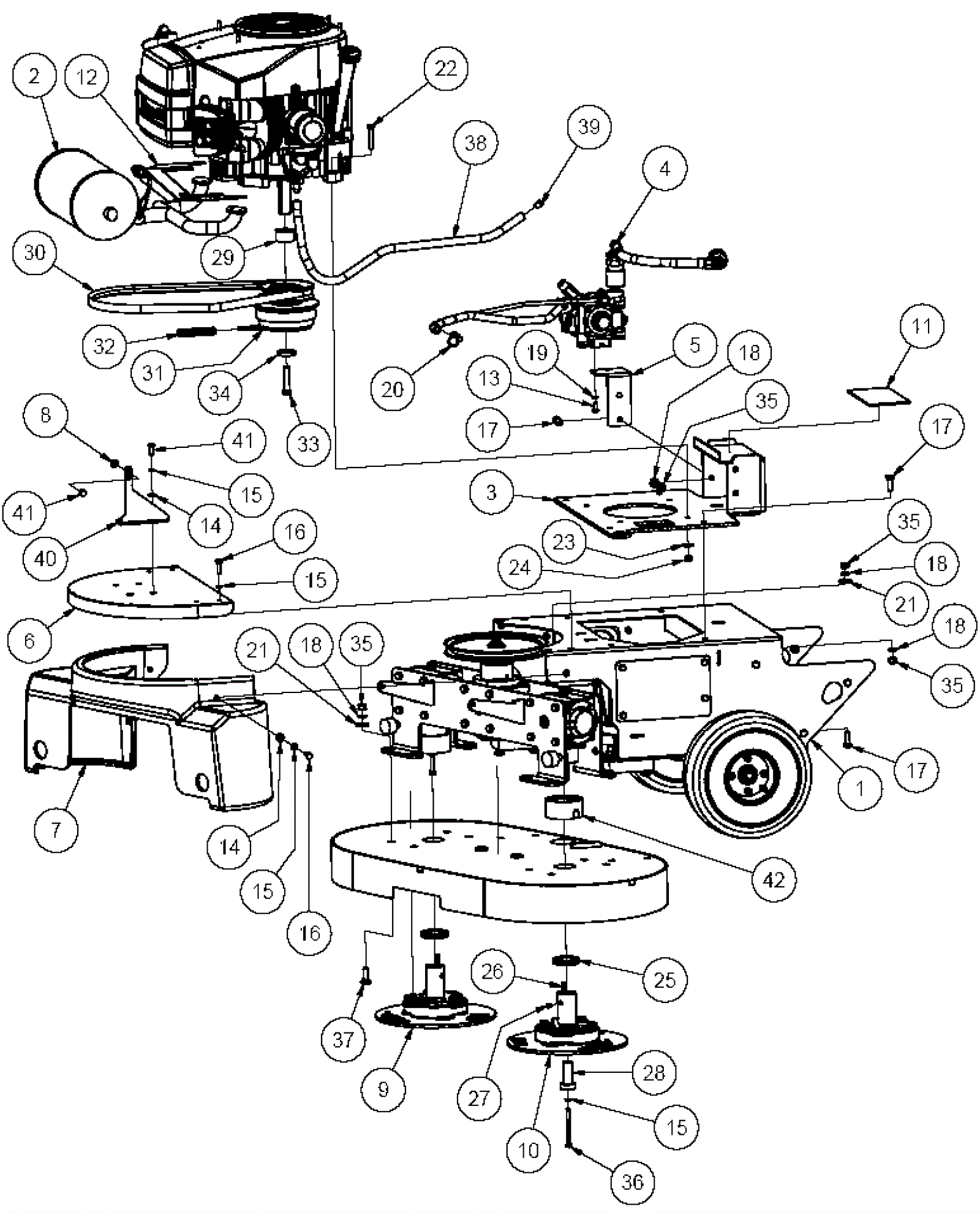

MONGREL Front Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-1760 30 inch base assembly (OBSOLETE) $1,226.39 1 usually ships 1-5 days
2 154-0249 Kawasaki manifold and muffler $803.40 1 usually ships 12-17 days
3 154-1761 Engine mounting plate (OBSOLETE) $138.80 1 usually ships 1-5 days
4 154-1762 Regulator assembly $622.05 1 usually ships 1-5 days
5 154-1763 Regulator bracket $59.17 1 usually ships 1-5 days
6 154-1764 Cover (OBSOLETE) Call for price 1 usually ships 1-5 days
7 154-1765 Gearbox cover $450.23 1 usually ships 1-5 days
8 999-0182 Nut 1/2-20 hex plain finish $0.99 1 ships same day
9 154-1766 Right drive hub assembly $447.28 1 usually ships 1-5 days
10 154-1767 Left drive hub assembly $447.28 1 usually ships 1-5 days
11 154-0662 Battery pad $37.15 1 usually ships 1-5 days
12 154-0256 Manifold shield (17HP) $57.83 1 usually ships 1-5 days
13 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
14 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
15 154-0600 Lock washer $2.29 20 usually ships 12-17 days
16 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 6 ships same day
17 154-0757 Screw 3/8 x 1 $2.29 10 usually ships 1-5 days
18 154-0633 Lock washer $2.29 18 usually ships 1-5 days
19 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
20 154-0036 Plastic hose clamp $6.27 1 usually ships 12-17 days
21 999-0032 Washer 3/8 USS flat plain finish $2.42 10 ships same day
22 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
23 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
24 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
25 154-9021 V-ring seal $41.94 2 usually ships 12-17 days
26 154-0482 Square keyway $18.23 2 usually ships 1-5 days
27 999-0157 Screw 5/16-18 x 3/8 cup point socket set alloy plain finish $0.99 4 ships same day
28 154-1768 Clutch plate retainer $39.93 2 usually ships 1-5 days
29 154-1769 Spacer $37.71 1 usually ships 1-5 days
30 154-1770 Drive belt $40.79 1 usually ships 1-5 days
31 154-0008 Electric clutch assembly $361.20 1 usually ships 12-17 days
32 154-0015 Neoprene tubing (sold by the inch) $41.97 1 usually ships 12-17 days
33 999-0853 Screw 7/16-20 x 2 hex head grade 5 plain finish $0.99 1 ships same day
34 154-0016 Bottom clutch spacer $19.64 1 ships same day
35 999-0959 Nut 3/8-16 hex $1.42 18 ships same day
36 999-0824 Screw 1/4-20 x 3 hex head plain finish $0.99 2 ships same day
37 999-0232 Screw 3/8-16 x 1 1/4 carriage head grade 5 zinc $0.99 8 ships same day
38 154-0037 Tubing 1/2 x 5/8 (clear) (sold by the foot) $2.33 1 usually ships 3-15 days
39 154-0038 Oil drain cap $2.29 1 usually ships 12-17 days
40 154-1771 Muffler bracket $36.37 1 usually ships 12-17 days
41 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 3 usually ships 12-18 days
42 154-2092 Gearbox support spacer $113.64 2 usually ships 1-5 days
