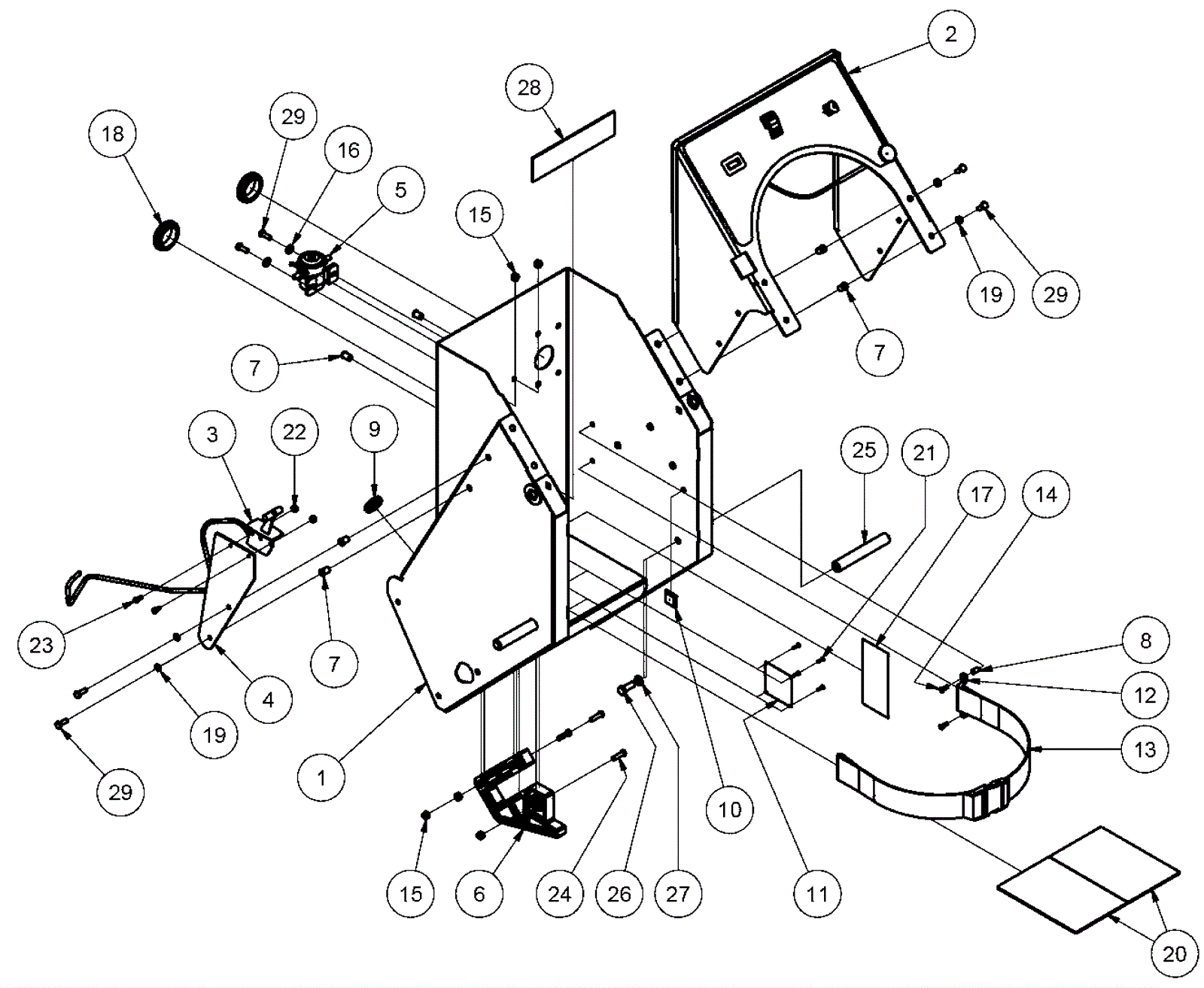

MONGREL Bulkhead Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-1428 30 inch bulkhead weldment $532.55 1 usually ships 1-5 days
2 154-1429 Control panel assembly $304.07 1 usually ships 1-5 days
3 154-1430 Throttle cable $23.30 1 usually ships 1-5 days
4 154-1431 Throttle bracket $58.85 1 usually ships 1-5 days
5a 154-1040 Starter solenoid $42.97 1 (replaces 154-0661) ships same day
5b 991-9253 12V DC starter solenoid $36.51 1 (NON-OEM) usually ships 14-21 days
6 154-0537 Handle bracket $60.03 2 usually ships 1-5 days
7 154-0783 Compression insert $3.70 10 usually ships 1-5 days
8 154-1146 Insert $4.07 4 usually ships 1-5 days
9 154-0332 Grooved grommet $5.50 2 usually ships 1-5 days
10 154-0127 Velcro stud $2.29 2 ships same day
11 154-1432 Plate Call for price 1 usually ships 1-5 days
12 154-0328 Footman loop $11.84 2 usually ships 1-5 days
13 154-0329 Tank strap $67.11 1 usually ships 12-17 days
14 999-0709 Screw 10-24 x 3/4 oval head phillips $1.65 4 ships same day
15 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
16 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
17 154-1433 Danger decal $5.56 1 usually ships 1-5 days
18 154-0584 Grommet $10.15 2 usually ships 1-5 days
19 154-0600 Lock washer $2.29 8 usually ships 12-17 days
20 154-0093 Battery pad (OBSOLETE) $11.39 2 usually ships 1-5 days
21 154-0018 Pop rivet $2.29 4 usually ships 12-17 days
22 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
23 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
24 999-0229 Screw 1/4-20 x 1 button head socket plain finish $0.99 6 ships same day
25 154-1434 Foot peg $106.03 2 usually ships 1-5 days
26 154-0757 Screw 3/8 x 1 $2.29 2 usually ships 1-5 days
27 154-0633 Lock washer $2.29 2 usually ships 1-5 days
28 992-0001 Velcro loop (sold by the inch) $0.75 8 in (25 yards per roll) usually ships 12-17 days
29 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 10 usually ships 12-18 days
