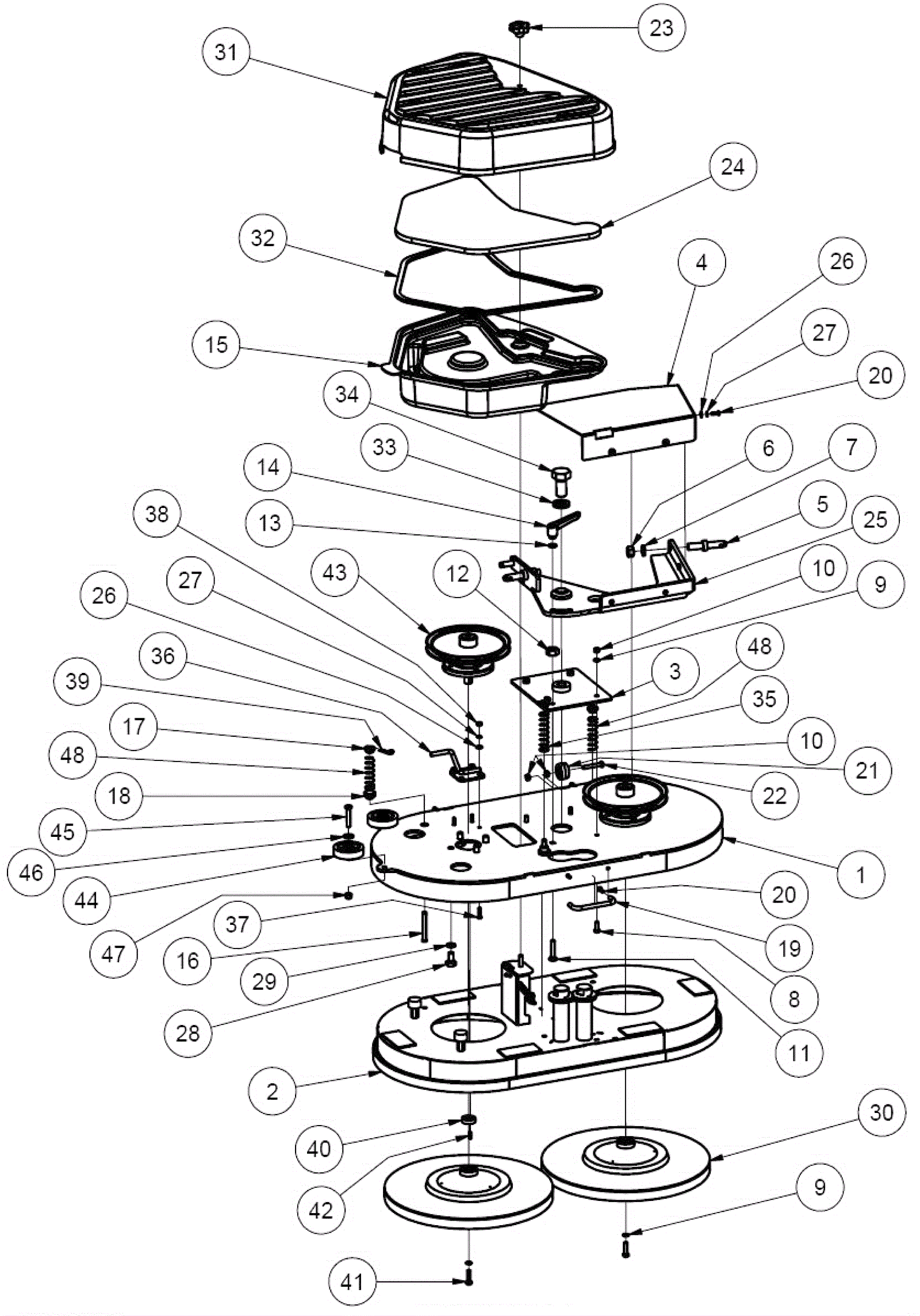

REVOLUTION RXL33 Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-2104 Deck weldment (OBSOLETE) $643.35 1 usually ships 1-5 days
2 154-2105 Dust shroud (OBSOLETE) Call for price 1 usually ships 1-5 days
3 154-2082 Plate $157.11 1 usually ships 1-5 days
4 154-2073 Pulley cover $127.30 1 usually ships 1-5 days
5 154-2068 Pin $18.83 2 usually ships 1-5 days
6 999-0624 Nut 5/8-11 heavy hex plain finish $0.99 2 usually ships 11-24 days
7 999-0816 Washer 5/8 medium split lock $0.99 2 ships same day
8 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 3 ships same day
9 999-0028 Washer 5/16 split lock plain finish $0.99 5 ships same day
10 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 7 ships same day
11 999-0708 Screw 3/8-16 x 2 carriage head grade 5 zinc $1.09 1 ships same day
12 154-2083 Pivot spacer $68.85 1 usually ships 1-5 days
13 999-1254 Washer 3/8 SAE flat zinc plated $0.99 1 ships same day
14 154-0071 Adjustable handle lever $42.91 1 ships same day
15 154-2106 Dust container (OBSOLETE) $141.83 1 usually ships 1-5 days
16 154-2080 Clevis pin $8.28 3 usually ships 1-5 days
17 154-2076 Spring guide $28.62 3 usually ships 1-5 days
18 154-2075 Skirt pin $38.06 3 usually ships 1-5 days
19 154-2079 Lifting handle (OBSOLETE) $48.02 1 usually ships 1-5 days
20 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish $0.99 5 ships same day
21 154-2074 Wheel $13.17 2 usually ships 1-5 days
22 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated $0.54 2 ships same day
23 154-0326 Knob $38.06 1 usually ships 4-15 days
24 154-2107 Dust container filter (OBSOLETE) $25.82 1 usually ships 1-5 days
25 154-2108 Yoke (OBSOLETE) $191.79 1 usually ships 1-5 days
26 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
27 154-0600 Lock washer $1.84 6 usually ships 4-15 days
28 999-0115 Bolt 1/2-13 x 1 hex head grade 5 $1.43 8 ships same day
29 999-0126 Washer 1/2 split lock $1.28 8 ships same day
30 154-2109 Pad driver assembly $434.39 2 usually ships 1-5 days
31 154-2110 Dust container cover (OBSOLETE) Call for price 1 usually ships 1-5 days
32 154-0401 Foam seal $14.03 2 usually ships 4-15 days
33 154-2069 Lock washer $3.41 1 usually ships 1-5 days
34 999-1439 Bolt 1-8 x 2 hex head zinc plated $9.05 1 usually ships 1-5 days
35 154-2078 Compression spring $18.78 3 usually ships 1-5 days
36 154-1028 Belt guide $102.88 1 usually ships 1-5 days
37 999-0229 Screw 1/4-20 x 1 button head socket plain finish $0.99 3 ships same day
38 999-0609 Nut 1/4-20 hex stainless steel $0.99 3 ships same day
39 154-0699 Presto pin $1.84 3 usually ships 1-5 days
40 154-2111 Spacer $17.52 2 usually ships 1-5 days
41 999-0639 Bolt 5/16-18 x 1 1/4 hex hd full thread grade 5 zinc plated $1.82 2 ships same day
42 154-2112 Square keyway $10.93 2 usually ships 1-5 days
43 154-2113 8 1/2 inch pulley assembly with spindle (OBSOLETE) Call for price 2 usually ships 1-5 days
44 154-0302 3 inch gray wheel $23.97 2 usually ships 4-15 days
45 154-0745 Screw 3/8 x 2 $2.76 2 usually ships 1-5 days
46 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
47 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
