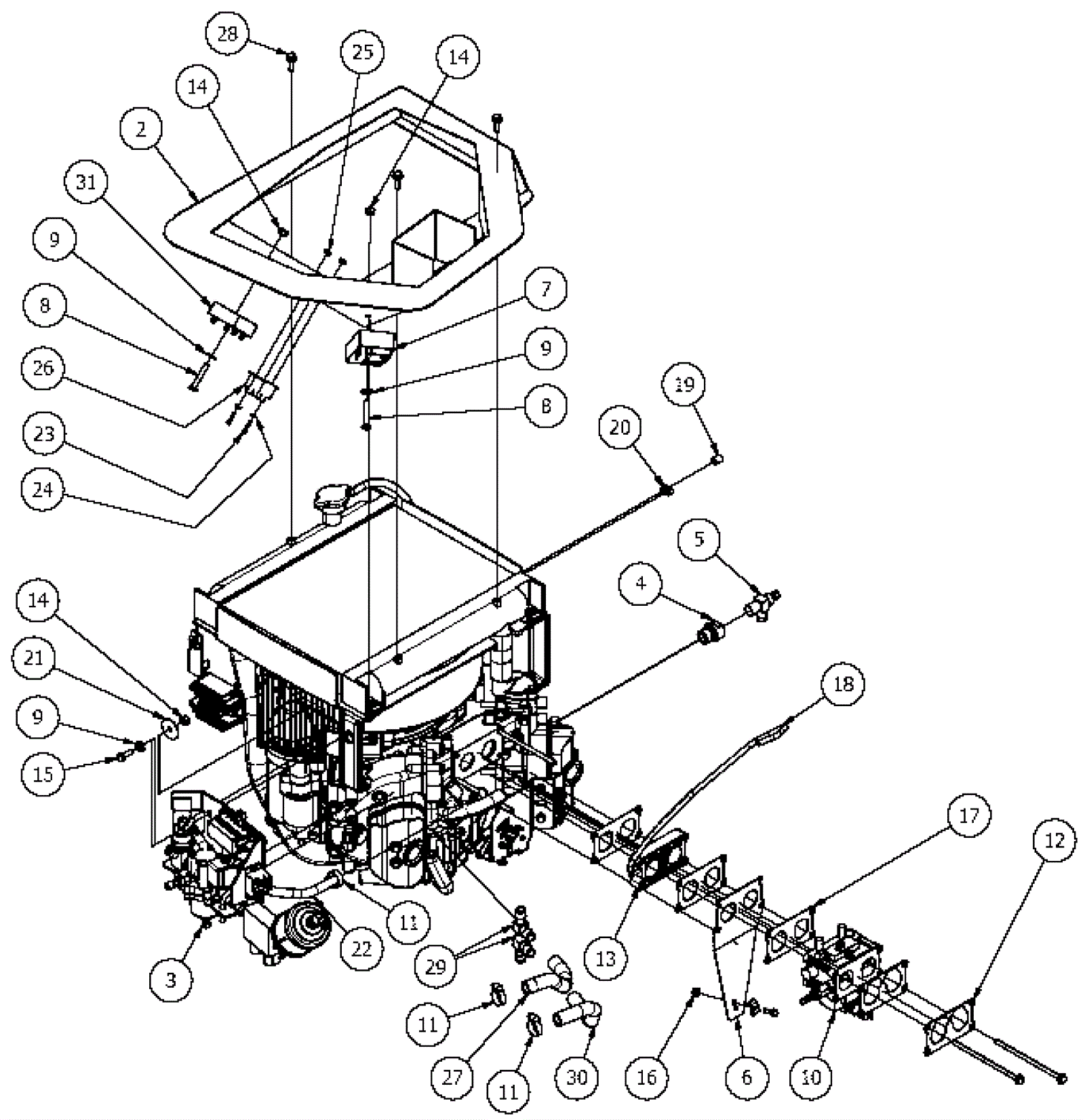

Kawasaki Engine Assembly

#PartDescription ReqNotesAvailability
2 154-2136 Radiator shroud 1
3 154-2137 Fuel injection assembly (OBSOLETE) 1
4 178-0010 Oil drain adapter 1
5 154-0362 Oil drain valve 1
6 154-2138 Bracket 1
7 154-2139 Timing module 1
8 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel 2
9 999-0016 Washer 1/4 flat plain finish 3
10 154-2140 Carburetor assembly 1
11 154-2141 Hose clamp 8
12 178-7089 Upper carburetor gasket 2
13 154-2142 Intake spacer block 1
14 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
15 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
16 154-1253 Flanged nut 1
17 178-7090 Lower carburetor gasket 3
18 154-0351 Vacuum hose (sold by the foot) 20 in
19 154-2143 Plug 1
20 154-2134 Cable tie 1
21 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 1
22 154-2144 Fuel hose 11 in
23 999-0249 Screw 6-32 x 5/8 round head slotted zinc plated 2
24 999-1158 Washer #6 flat stainless steel 2
25 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
26 154-0665 12V circuit relay board 1
27 154-2250 Fuel hose (sold by the foot) (OBSOLETE) 1 ft
28 999-9116 Screw M6-1 x 12mm hex head stainless steel 1
29 154-1224 Elbow fitting 2
30 154-2250 Fuel hose (sold by the foot) (OBSOLETE) 1 ft
31 154-2251 Fixed timing module 1
N/S 178-0366 Ignition coil
N/S 178-0365 Ignition coil
