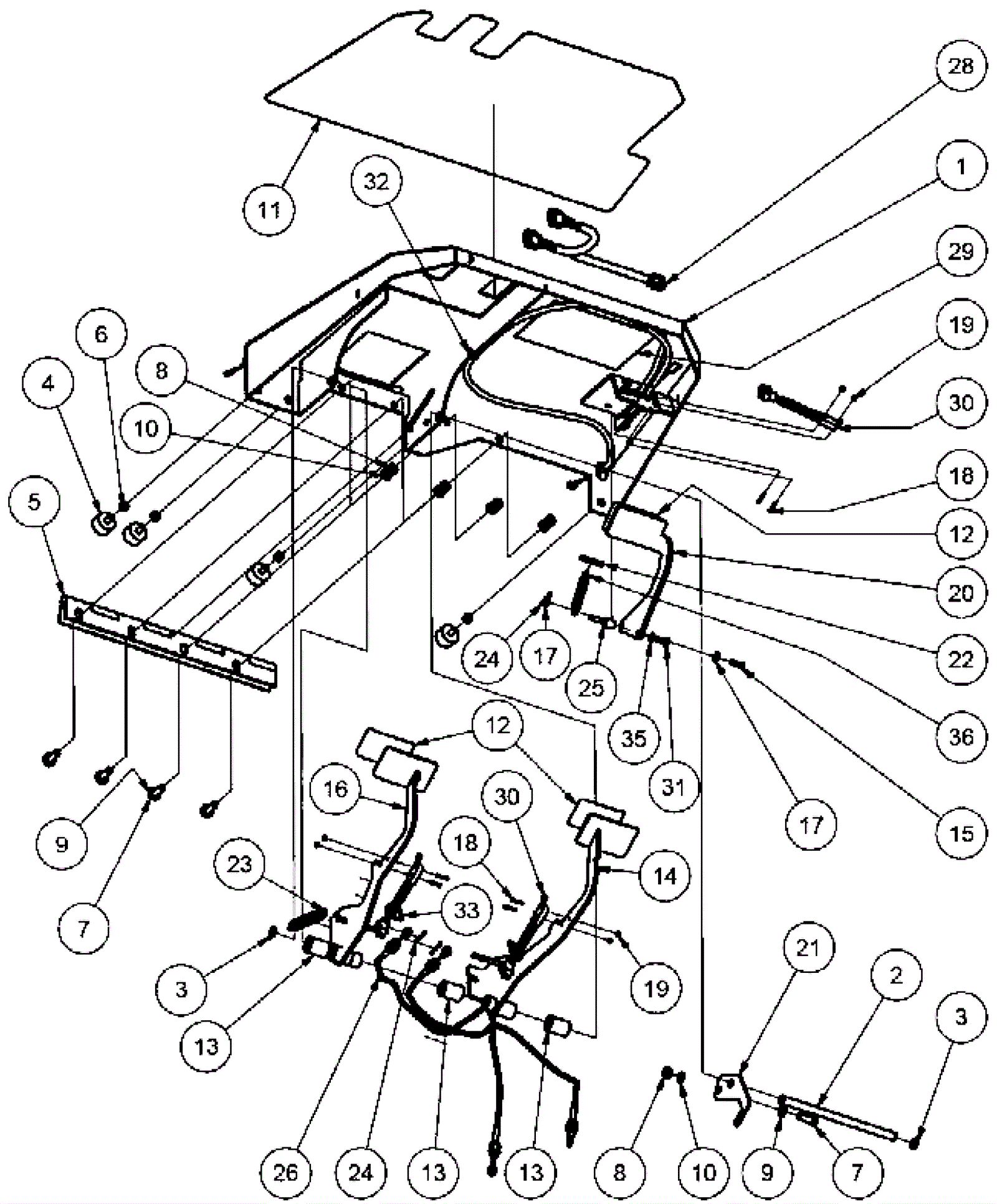

Platform Assembly

#PartDescription ReqNotesAvailability
1 154-2114 Platform weldment (OBSOLETE) 1
2 154-2115 Pedal pivot shaft (OBSOLETE) 1
3 154-0841 Retaining ring 2
4 154-2116 Vibration stud mount 4
5 154-2117 Hinge (OBSOLETE) 1
6 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
7 154-0757 Screw 3/8 x 1 5
8 999-0959 Nut 3/8-16 hex 5
9 999-1254 Washer 3/8 SAE flat zinc plated 5
10 154-0633 Lock washer 5
11 154-2118 Floor board tread 1
12 154-2119 Pedal tread 3
13 154-2120 Pedal spacer 3
14 154-2121 Reverse pedal 1
15 154-2122 Clevis pin 1
16 154-2123 Forward pedal 1
17 999-0016 Washer 1/4 flat plain finish 2
18 154-0544 Screw 4-40 x 3/4 UNF round head machine 4
19 999-0295 Nut 4-40 nylon insert lock stainless steel 4
20 154-2124 Brake pedal 1
21 154-2125 Hook (OBSOLETE) 1
22 154-9032 Spring pin 1
23 154-2126 Spring 2
24 154-0646 Cotter pin 3
25 154-2127 Spring pin 1
26 154-2128 Forward and reverse cable assembly 1
28 154-2130 Platform wiring harness (OBSOLETE) 1
29 154-2131 Diagram decal (OBSOLETE) 1
30 154-2132 Switch lever 2
31 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 1
32 154-2133 Cable tie 3
33 154-2134 Cable tie 2
35 154-0600 Lock washer 1
36 154-9031 Spring 1
N/S 154-2129 Brake cable assembly 1
