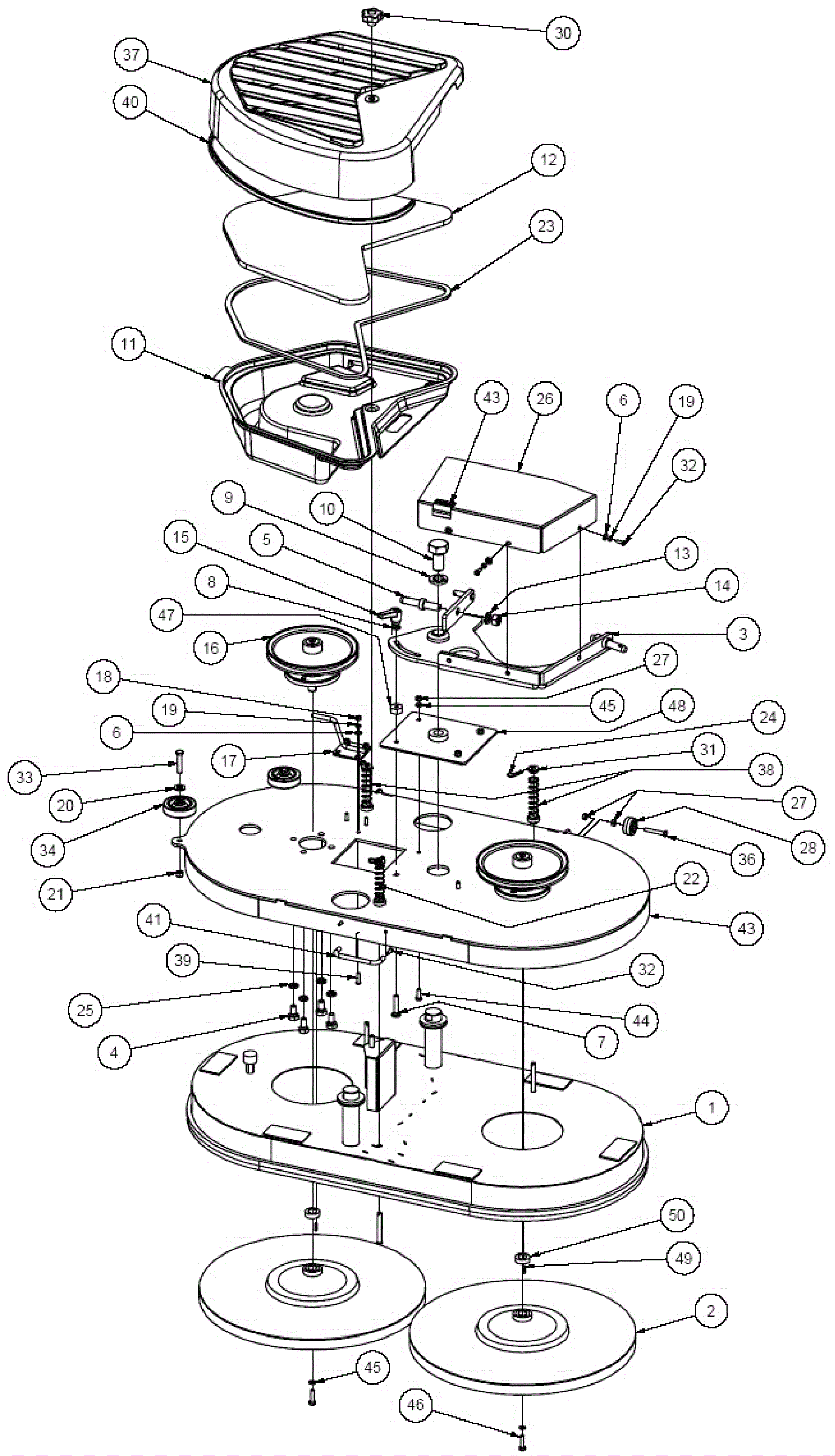

REVOLUTION RXL40 Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1a 154-2065 Dust shroud assembly $1,456.37 1 usually ships 1-5 days
1b 154-3509 Dust skirt edging (OBSOLETE) $83.35 1 usually ships 4-15 days
1c 154-3521 Offset skirt bottom edging (by the foot) $13.74 10 ft Cut to 9.58 ft usually ships 1-5 days
2 154-2066 Pad driver assembly $394.80 2 usually ships 1-5 days
3 154-2067 Yoke $287.89 1 usually ships 1-5 days
4 999-0115 Bolt 1/2-13 x 1 hex head grade 5 $1.43 8 ships same day
5 154-2068 Pin $18.83 2 usually ships 1-5 days
6 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
7 999-0708 Screw 3/8-16 x 2 carriage head grade 5 zinc $1.09 1 ships same day
8 999-1254 Washer 3/8 SAE flat zinc plated $0.99 1 ships same day
9 154-2069 Lock washer $3.41 1 usually ships 1-5 days
10 999-1439 Bolt 1-8 x 2 hex head zinc plated $9.05 1 usually ships 1-5 days
11 154-2070 Dust container (OBSOLETE) $167.08 1 usually ships 1-5 days
12 154-2071 Dust container filter (OBSOLETE) $78.18 1 usually ships 4-15 days
13 999-0816 Washer 5/8 medium split lock $0.99 2 ships same day
14 999-0624 Nut 5/8-11 heavy hex plain finish $0.99 2 usually ships 11-24 days
15 154-0071 Adjustable handle lever $42.91 1 ships same day
16 154-2072 8 1/2 inch pulley assembly with spindle $561.99 2 usually ships 1-5 days
17 154-1028 Belt guide $102.88 1 usually ships 1-5 days
18 999-0609 Nut 1/4-20 hex stainless steel $0.99 3 ships same day
19 154-0600 Lock washer $1.84 8 usually ships 4-15 days
20 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
21 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
22 999-0124 Screw 1/4-20 x 1 1/4 button head socket cap plain finish $0.99 2 ships same day
23 154-0401 Foam seal $14.03 2 usually ships 4-15 days
24 154-0699 Presto pin $1.84 3 usually ships 1-5 days
25 999-0126 Washer 1/2 split lock $1.28 8 ships same day
26 154-2073 Pulley cover $127.30 1 usually ships 1-5 days
27 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 7 ships same day
28 154-2074 Wheel $13.17 2 usually ships 1-5 days
30 154-0326 Knob $38.06 1 usually ships 4-15 days
31 154-2076 Spring guide $28.62 3 usually ships 1-5 days
32 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish $0.99 5 ships same day
33 154-0745 Screw 3/8 x 2 $2.76 2 usually ships 1-5 days
34 154-0302 3 inch gray wheel $23.97 2 usually ships 4-15 days
36 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated $0.54 2 ships same day
37 154-2077 Dust box cover $279.62 1 usually ships 1-5 days
38 154-2078 Compression spring $18.78 3 usually ships 1-5 days
39 999-0229 Screw 1/4-20 x 1 button head socket plain finish $0.99 3 ships same day
40 154-0117 Trim (sold by the foot) $9.94 55 in usually ships 1-5 days
41 154-2079 Lifting handle (OBSOLETE) $48.02 1 usually ships 1-5 days
43 154-2081 Bracket (OBSOLETE) $709.48 1 usually ships 1-5 days
44 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 3 ships same day
45 999-0028 Washer 5/16 split lock plain finish $0.99 3 ships same day
46 154-2082 Plate $157.11 1 usually ships 1-5 days
47 154-2083 Pivot spacer $68.85 1 usually ships 1-5 days
48 154-2082 Plate $157.11 1 usually ships 1-5 days
49 154-2112 Square keyway $10.93 2 usually ships 1-5 days
50 154-2111 Spacer $17.52 2 usually ships 1-5 days
N/S 154-2075 Skirt pin $38.06 3 usually ships 1-5 days
N/S 154-0482 Square keyway $18.23 2 usually ships 1-5 days
N/S 154-2080 Clevis pin $8.28 3 usually ships 1-5 days
