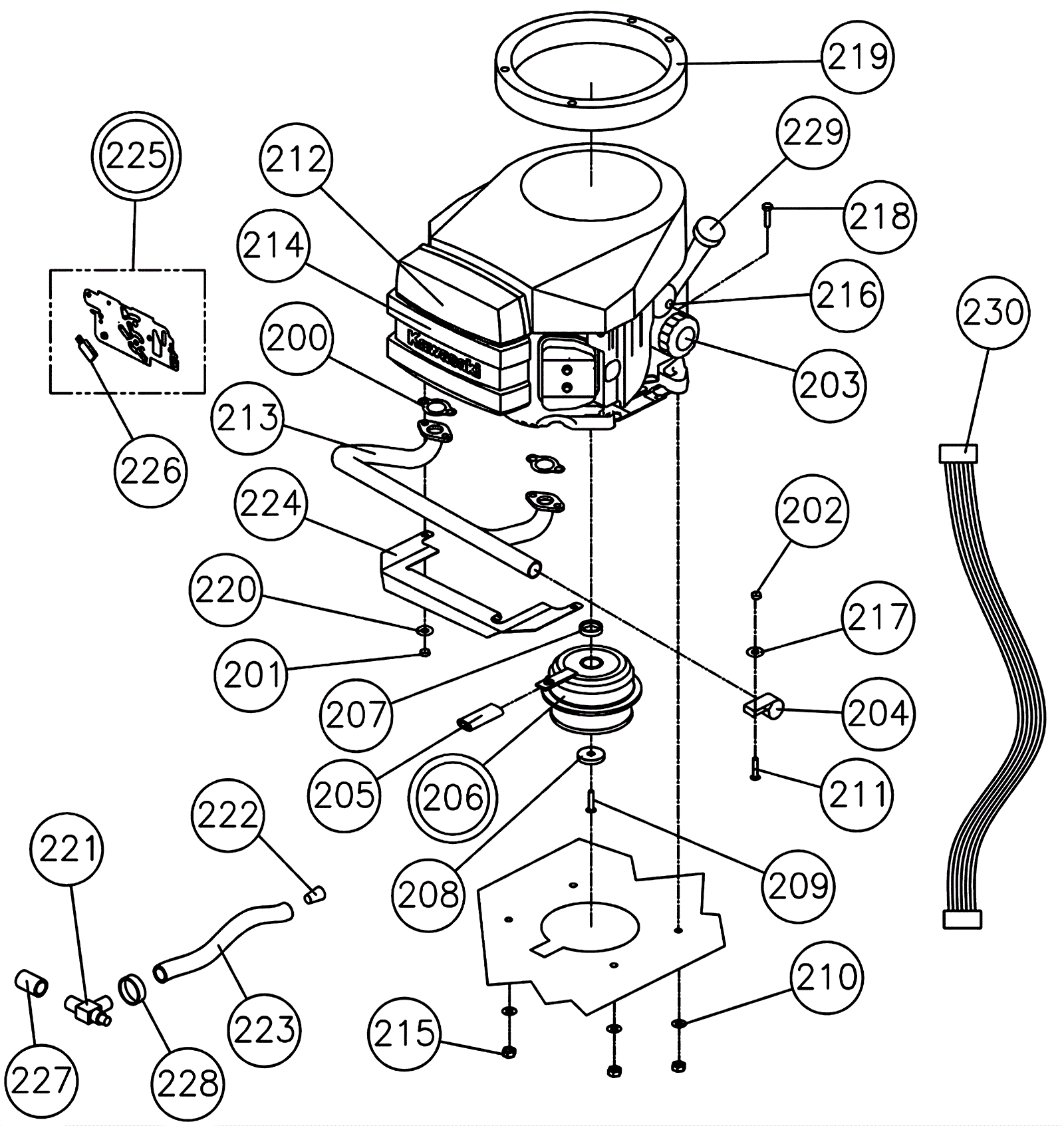

BARRACUDA 34 Kawasaki Engine Assembly

#PartDescriptionPriceReqNotesAvailability
200 154-1057 Exhaust manifold gasket $4.24 2 usually ships 1-5 days
201 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 4 ships same day
202 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
203 154-1058 Oil filter $17.55 1 usually ships 1-5 days
204 154-0175 Muffler clamp (OBSOLETE) $26.66 1 usually ships 4-15 days
205 154-0015 Neoprene tubing (sold by the inch) $41.97 1 usually ships 4-15 days
206 154-0008 Electric clutch assembly $361.20 1 usually ships 4-15 days
207 154-0140 Top clutch spacer $15.31 1 usually ships 4-15 days
208 154-0016 Bottom clutch spacer $19.64 1 ships same day
209 999-0208 Bolt 7/16-20 x 1 1/2 hex head grade 5 zinc plated $0.99 1 ships same day
210 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
211 999-0476 Screw 5/16-18 x 2 carriage head grade 5 zinc $0.99 1 ships same day
212a 178-0005 Air pre-cleaner Kawasaki $5.00 1 (OEM) ships same day
212b 991-7118 Pre-filter (green) $5.75 1 (NON-OEM) ships same day
213a 154-2036 Exhaust pipe (13HP) $170.13 2 usually ships 1-5 days
213b 154-0506 Exhaust pipe (17HP) $37.85 1 usually ships 1-5 days
214a 178-0007 Air filter Kawasaki $13.68 1 (OEM) ships same day
215 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
216a 154-2037 Oil pressure switch $59.59 1 (models without clutch) (KWA/E) usually ships 1-5 days
216b 154-0143 Oil pressure switch with 2 prongs $58.28 1 (models with clutch) (KWC/E) usually ships 4-15 days
217 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
218 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
219 154-0360 Engine air intake seal $48.19 1 usually ships 4-15 days
220 999-0674 Washer M8 split lock plain finish $0.99 4 ships same day
221 154-0362 Oil drain valve $33.73 1 usually ships 4-15 days
222 154-0038 Oil drain cap $2.29 1 usually ships 4-15 days
223 154-0037 Tubing 1/2 x 5/8 (clear) (sold by the foot) $2.33 26 in usually ships 3-15 days
224a 154-0256 Manifold shield (17HP) $57.83 1 usually ships 1-5 days
224b 154-2038 Manifold shield (13HP) $69.50 1 usually ships 1-5 days
225 154-0363 Throttle plate with switch $82.83 1 (includes 226) usually ships 4-15 days
226 154-0382 Microswitch (OBSOLETE) $25.15 1 usually ships 4-15 days
227 178-0010 Oil drain adapter $8.32 1 ships same day
228 154-0036 Plastic hose clamp $6.27 1 usually ships 4-15 days
229 154-0367 Kawasaki dipstick $17.33 1 usually ships 4-15 days
230a 154-0467 Wiring harness $166.55 1 (models without clutch and with SafeSense) (KWA/E) usually ships 4-15 days
230b 154-2039 Wiring harness (OBSOLETE) $131.07 1 (models with clutch and without SafeSense) (KWC/E) usually ships 1-5 days
