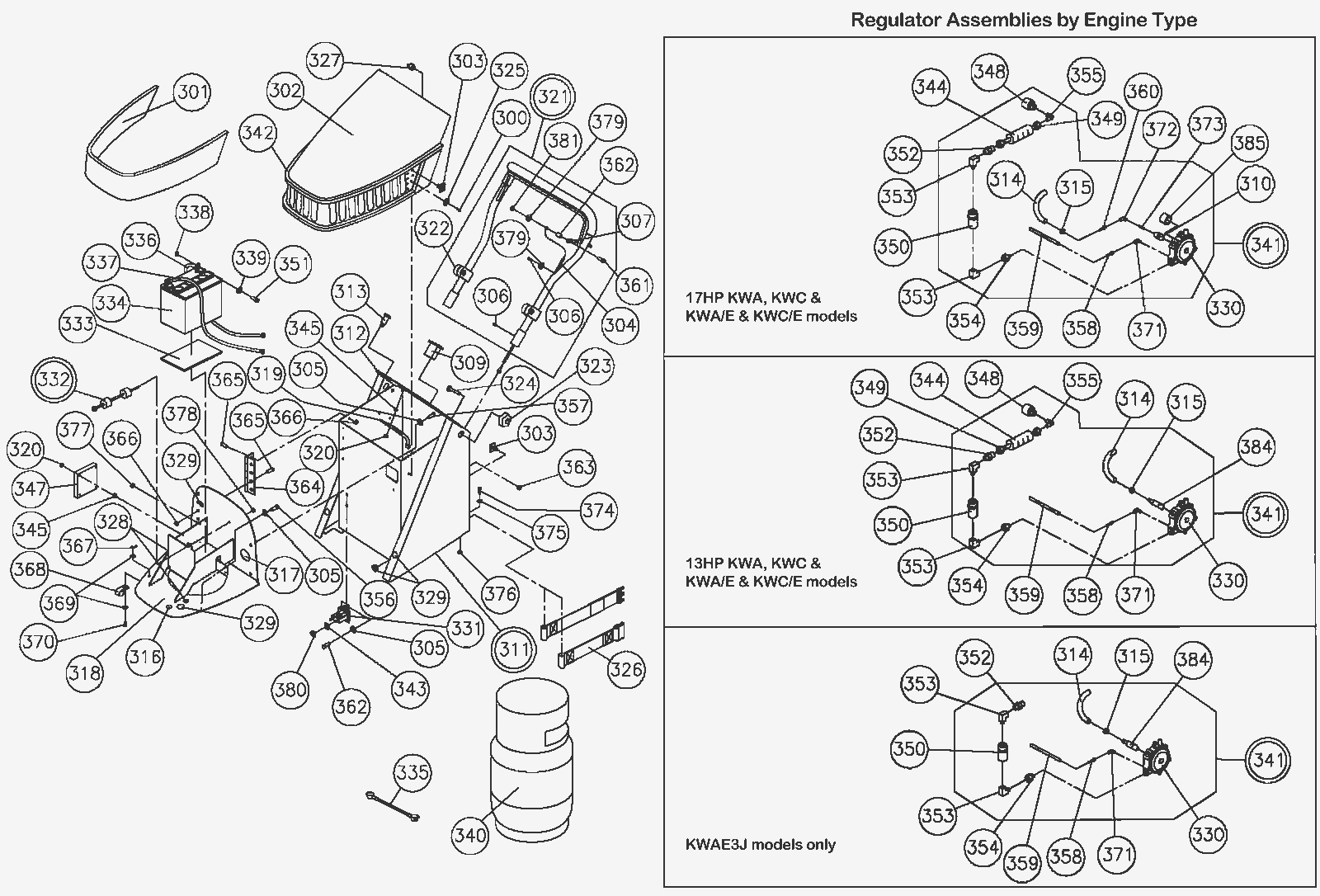

| # | Part | Description |
Req | Notes | Availability |
|---|
300 |
999-0383
|
Screw 1/4-20 x 1/2 button head socket cap plain finish |
4 |
|
|
301 |
154-0313
|
Foam air intake filter |
1 |
|
|
302 |
154-2046
|
Battery hood (OBSOLETE) |
1 |
|
|
303 |
154-0127
|
Velcro stud |
14 |
|
|
304 |
154-0541
|
Throttle control cable |
1 |
|
|
305 |
999-0238
|
Washer 1/4 internal star lock zinc plated |
8 |
|
|
306 |
999-0576
|
Screw 8-18 x 1/2 pan head phillips self-drilling ss |
5 |
|
|
307 |
154-0316
|
Bail |
1 |
|
|
309 |
154-0214
|
Hour meter |
1 |
|
|
310 |
154-0168
|
Fuel adjustment |
1 |
|
|
311a |
154-0502
|
Bulkhead assembly (KWC) (OBSOLETE) |
1 |
(models with clutch) |
|
311b |
154-2047
|
Bulkhead assembly (KWA) (OBSOLETE) |
1 |
(models without clutch) |
|
312 |
154-0117
|
Trim (sold by the foot) |
1 |
|
|
313 |
154-0319
|
Starter switch with ground prong (2 keys) |
1 |
|
|
314 |
154-0320
|
Fuel line (sold by the foot) |
3 ft |
|
|
315 |
154-0036
|
Plastic hose clamp |
2 |
|
|
316 |
154-0321
|
Nylon plug (black) (OBSOLETE) |
1 |
|
|
317 |
154-0584
|
Grommet |
1 |
|
|
318 |
154-0694
|
Battery tray weldment (OBSOLETE) |
1 |
|
|
319 |
154-0379
|
Display board |
1 |
|
|
320 |
154-0380
|
Nut 6-32 nylon |
7 |
|
|
321 |
154-0324
|
Handle assembly |
1 |
(includes 304, 306, 307, 322, 379, 361, 362 and 381) |
|
322 |
154-0325
|
Pivot handle slide block |
2 |
|
|
323 |
154-0326
|
Knob |
2 |
|
|
324 |
999-0708
|
Screw 3/8-16 x 2 carriage head grade 5 zinc |
2 |
|
|
325 |
154-0328
|
Footman loop |
2 |
|
|
326 |
154-1039
|
Tank strap |
1 |
|
|
327 |
999-0709
|
Screw 10-24 x 3/4 oval head phillips |
4 |
|
|
328 |
154-0331
|
Grooved grommet |
3 |
|
|
329 |
154-0332
|
Grooved grommet |
5 |
|
|
330 |
991-6001
|
Fuel regulator (T60) |
1 |
|
|
331 |
154-0279
|
Starter solenoid (remote mounted) |
1 |
|
|
332 |
154-0334
|
Battery retainer assembly (OBSOLETE) |
1 |
|
|
333 |
154-0093
|
Battery pad (OBSOLETE) |
1 |
|
|
334a |
162-0001
|
12V 35Ah AGM battery |
1 |
6 1/4" x 5" x 7 5/8" |
|
334b |
162-0007
|
12V 12Ah sealed battery |
1 |
|
|
335 |
154-0336
|
5 inch starter cable |
1 |
|
|
336 |
154-0337
|
Positive battery cable |
1 |
|
|
337 |
154-0338
|
Negative battery cable |
1 |
|
|
338 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
339 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
340 |
161-0003
|
Aluminum propane tank |
1 |
|
|
341a |
154-0695
|
Regulator assembly (17HP E) |
1 |
(includes 310, 314, 315, 330, 344, 348-350, 352-355, 358-360, 371-373 and 385) |
|
341b |
154-0696
|
Regulator assembly (17HP) |
1 |
(includes 310, 314, 315, 330, 344, 348-350, 352-355, 358-360, 371-373 and 385) |
|
341c |
154-2048
|
Regulator assembly (13HP E) |
1 |
(includes 314, 315, 330, 344, 348-350, 352-355, 358, 359, 371 and 384) |
|
341d |
154-2049
|
Regulator assembly (13HP) |
1 |
(includes 314, 315, 330, 344, 348-350, 352-355, 358, 359, 371 and 384) |
|
341e |
154-2050
|
Swing out regulator assembly (KWAE3J) (OBSOLETE) |
1 |
(includes 314, 315, 330, 350, 352-354, 358, 359, 371 and 384) |
|
342 |
154-0342
|
Battery cover molding |
1 |
|
|
343 |
154-0600
|
Lock washer |
2 |
|
|
344 |
154-0343
|
Insulation pipe (OBSOLETE) |
1 |
|
|
345 |
154-0354
|
Spacer |
8 |
|
|
347 |
N/A
|
Not available |
1 |
(SafeSense module kit) (KWA models without clutch) |
|
348 |
154-1076
|
Female quick coupler |
1 |
|
|
349a |
154-0698
|
18 inch regulator hose |
1 |
(E models) |
|
349b |
154-0098
|
12 inch regulator hose |
1 |
(standard models) |
|
349c |
154-0206
|
12 inch regulator hose with fittings kit |
1 |
|
|
350 |
154-1052
|
12V fuel lock off |
1 |
|
|
351 |
999-0130
|
Screw 5/16-18 x 3/4 socket head alloy plain finish |
2 |
|
|
352 |
154-0347
|
Fitting (regulator to fuel lock) |
1 |
|
|
353 |
154-0348
|
90 degree elbow fitting |
2 |
|
|
354 |
154-2051
|
Extension fitting |
1 |
|
|
355 |
154-0066
|
Fitting 49 x 6 (regulator to fuel lock) |
1 |
|
|
356 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
357 |
999-0235
|
Screw 1/4-20 x 3/4 button head socket plain finish |
2 |
|
|
358 |
154-0228
|
Hosebarb 1/8 x 1/4 inch |
1 |
|
|
359 |
154-0351
|
Vacuum hose (sold by the foot) |
3 ft |
|
|
360 |
154-0352
|
Hosebarb 1/8 x 3/8 inch |
1 |
|
|
361 |
154-0705
|
Screw 10-24 x 7/8 button head |
1 |
|
|
362 |
154-0640
|
Bushing |
1 |
|
|
363 |
154-0802
|
Nut 1/4-20 keps |
1 |
|
|
364 |
154-0585
|
Hinge (OBSOLETE) |
1 |
|
|
365 |
154-0586
|
Stud |
8 |
|
|
366 |
999-0151
|
Nut 8-32 nylon insert lock zinc plated |
8 |
|
|
367 |
154-0699
|
Presto pin |
1 |
|
|
368 |
154-0700
|
P clamp |
1 |
|
|
369 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
370 |
154-0701
|
Clevis pin 1/4 x 5/8 |
1 |
|
|
371 |
154-0702
|
Fitting 1/8 x 1/8 inch |
1 |
|
|
372 |
154-0703
|
Fitting 1/8 x 1/8 inch |
1 |
|
|
373 |
154-0704
|
Nipple fitting 1/8 x 1/8 inch |
1 |
|
|
374 |
999-0225
|
Screw 5/16-18 x 1 button head socket plain finish |
4 |
|
|
375 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
376 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
377 |
154-0722
|
Plug (OBSOLETE) |
1 |
|
|
378 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
|
379 |
999-0006
|
Washer 3/16 flat zinc plated |
3 |
|
|
380 |
999-0609
|
Nut 1/4-20 hex stainless steel |
2 |
|
|
381 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
1 |
|
|
384 |
154-0096
|
Brass elbow (regulator to fuel lock) |
1 |
|
|
385 |
154-3420
|
Tube isolator |
1 |
|
|
N/S |
154-0706
|
Large hole plug |
1 |
|
|
N/S |
154-0707
|
Small hole plug (OBSOLETE) |
2 |
|
|
