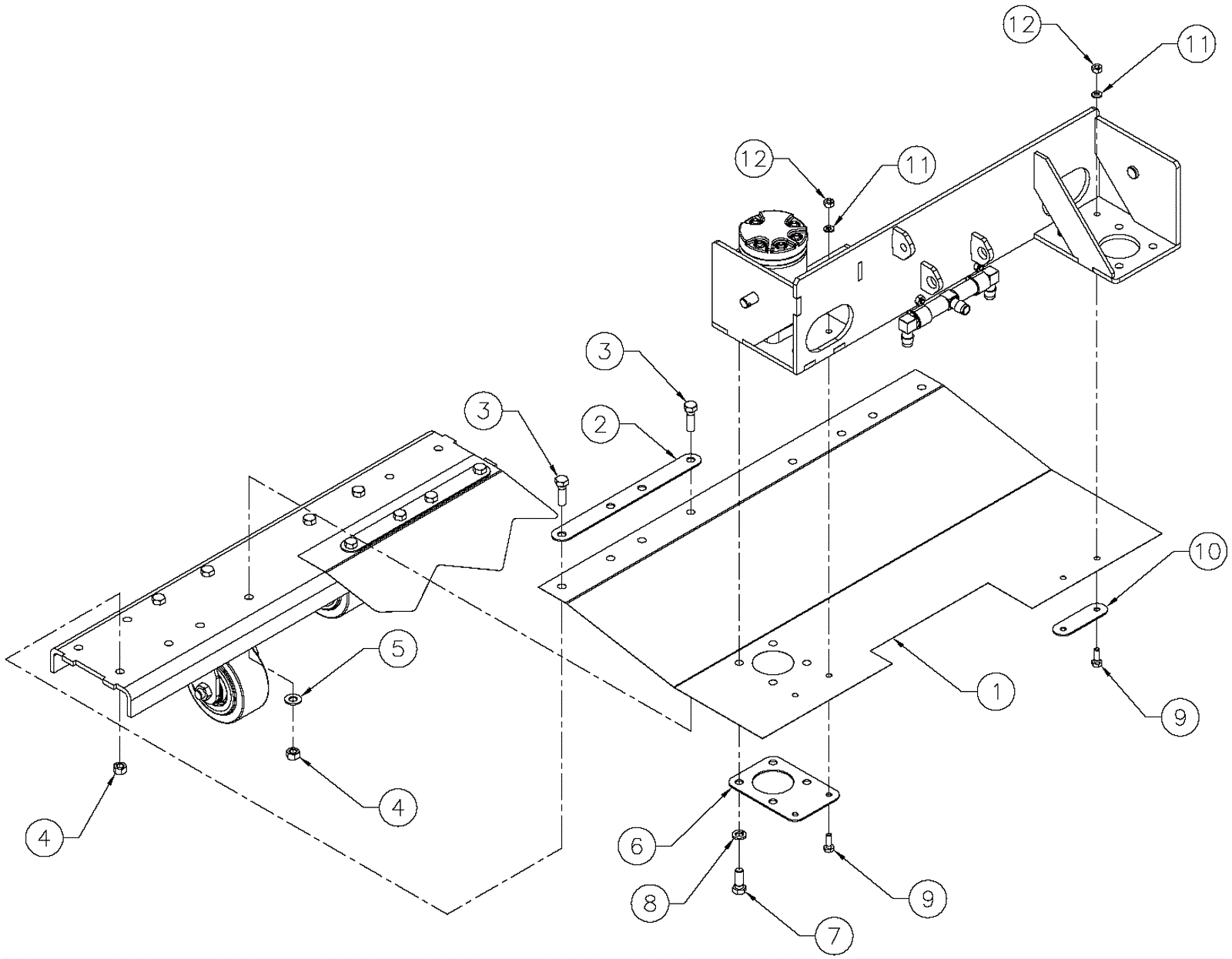

Rear Skirt Assembly

#PartDescription ReqNotesAvailability
1 154-1382 Rear splash skirt (OBSOLETE) 1
2 154-1383 Rear splash skirt strap 2
3 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4
4 999-0188 Nut 3/8-16 nylon insert lock zinc plated 8
5 999-0024 Washer 5/16 flat stainless steel 4
6 154-1384 Right side splash skirt plate (OBSOLETE) 1
7 154-0757 Screw 3/8 x 1 4
8 154-0633 Lock washer 4
9 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
10 154-1385 Left side splash skirt strap (OBSOLETE) 1
11 154-0600 Lock washer 4
12 999-0609 Nut 1/4-20 hex stainless steel 4
