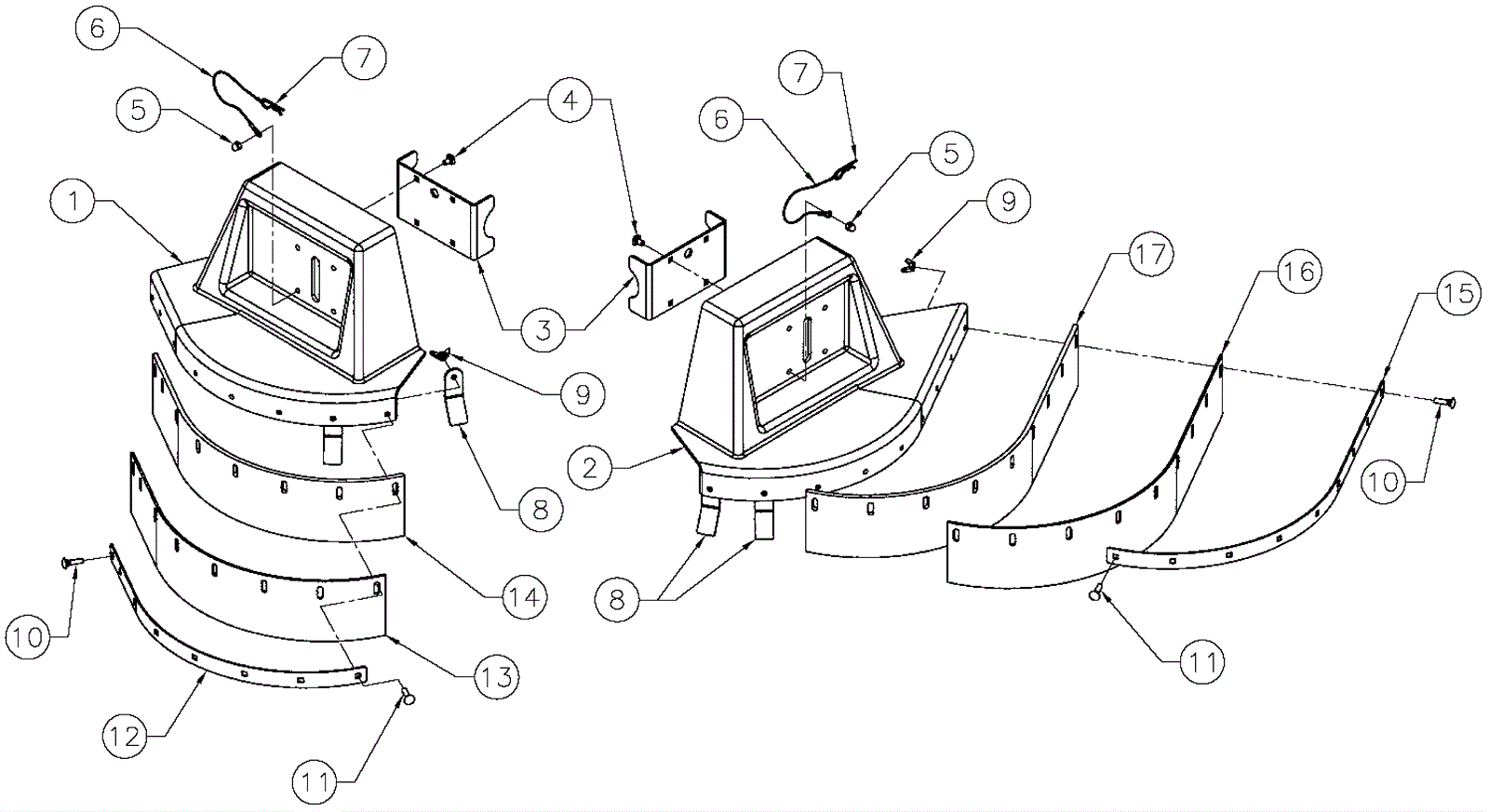

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
154-1369
|
Right side splash skirt (OBSOLETE) |
1 |
|
|
2 |
154-1371
|
Left side splash skirt (OBSOLETE) |
1 |
|
|
3 |
154-1374
|
Mounting bracket (OBSOLETE) |
2 |
|
|
4 |
999-1442
|
Bolt 1/4-20 x 1/2 carriage stainless steel |
8 |
|
|
5 |
999-1344
|
Nut 1/4-20 acorn stainless steel |
8 |
|
|
6 |
154-2034
|
6 inch lanyard cable |
2 |
|
|
7 |
154-1207
|
Cotter pin |
2 |
|
|
8 |
154-1375
|
Flare bracket (OBSOLETE) |
4 |
|
|
9 |
999-0603
|
Nut 1/4-20 wing stainless steel |
17 |
|
|
10 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
13 |
|
|
11 |
999-1443
|
Bolt 1/4-20 x 1 1/4 carriage stainless steel |
4 |
|
|
12 |
154-1376
|
Right side retainer strap (OBSOLETE) |
1 |
|
|
13 |
154-1377
|
Right side skirt blade (OBSOLETE) |
1 |
|
|
14 |
154-1378
|
Right side skirt (OBSOLETE) |
1 |
|
|
15 |
154-1379
|
Left side retainer strap (OBSOLETE) |
1 |
|
|
16 |
154-1380
|
Left side skirt blade (OBSOLETE) |
1 |
|
|
17 |
154-1381
|
Left side skirt (OBSOLETE) |
1 |
|
|
