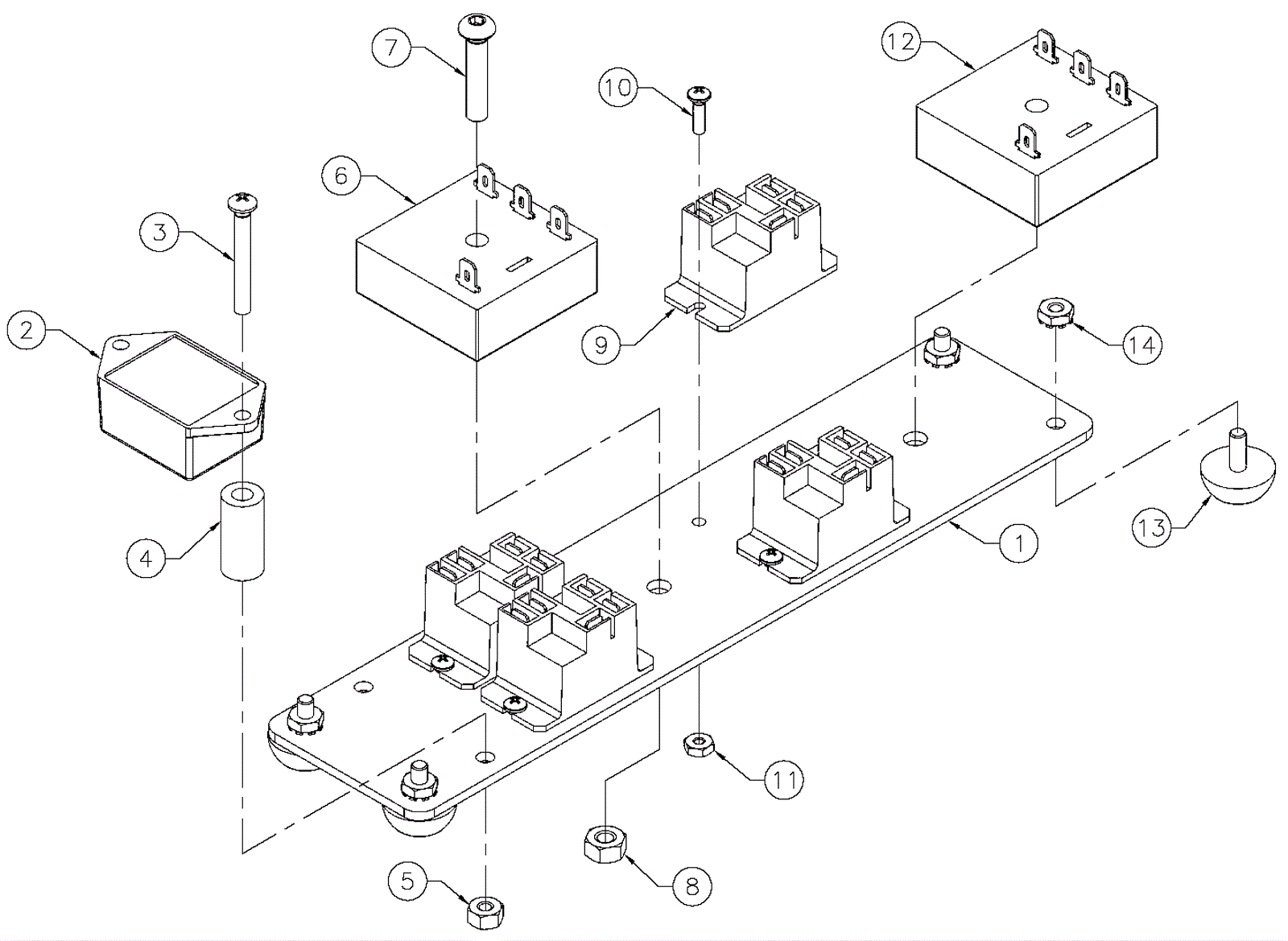

Relay and Timer Assembly

#PartDescription ReqNotesAvailability
1 154-1364 Relay and timer plate (OBSOLETE) 1
2 154-1365 Module assembly 1
3 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 2
4 154-1366 Spacer 2
5 154-0649 Nut 10-24 spin lock 2
6 154-1367 2 second timing module (OBSOLETE) 1
7 999-0124 Screw 1/4-20 x 1 1/4 button head socket cap plain finish 2
8 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
9 154-0665 12V circuit relay board 4
10 999-0249 Screw 6-32 x 5/8 round head slotted zinc plated 8
11 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 8
12 154-1368 10 second timing module 1
13 154-3423 Vibration foot with stud (OBSOLETE) 4
14 999-0239 Nut 10-32 k-lock zinc plated 4
