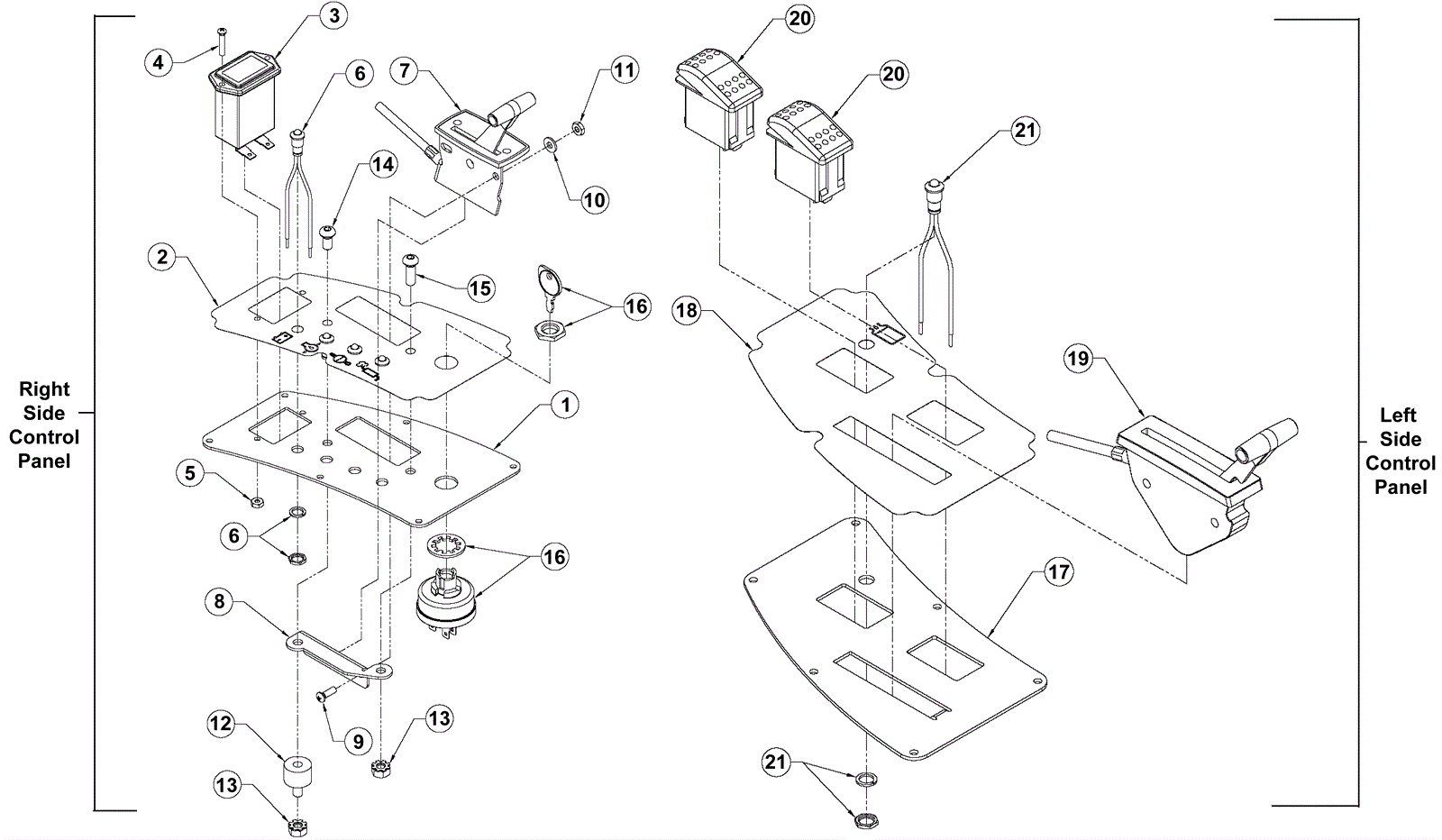

Left and Right Side Control Panel Assembly

#PartDescription ReqNotesAvailability
1 154-1358 Right side control panel plate (OBSOLETE) 1
2 154-1359 Right side Powerstar decal (OBSOLETE) 1
3 154-1360 Digital hour meter 1
4 999-0249 Screw 6-32 x 5/8 round head slotted zinc plated 2
5 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
6 154-3770 LED light (red) 4
7 154-1361 Throttle cable 1
8 154-1362 Throttle mounting bracket (OBSOLETE) 1
9 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 2
10 999-0266 Washer #8 SAE flat stainless steel 2
11 999-0357 Nut 8-32 nylon insert lock stainless steel 2
12 154-1363 Type S mount 1
13 154-0802 Nut 1/4-20 keps 2
14 999-1434 Screw 1/4-20 x 3/8 button head zinc plated 1
15 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish 1
16 154-0579 Key switch assembly with key 1
17 154-1353 Left side control panel plate (OBSOLETE) 1
18 154-1354 Left side Powerstar decal (OBSOLETE) 1
19 154-1355 Solution feed cable 1
20 154-1356 Rocker switch 2 (squeegee vacuum and scrub)
21 154-3770 LED light (red) 1
