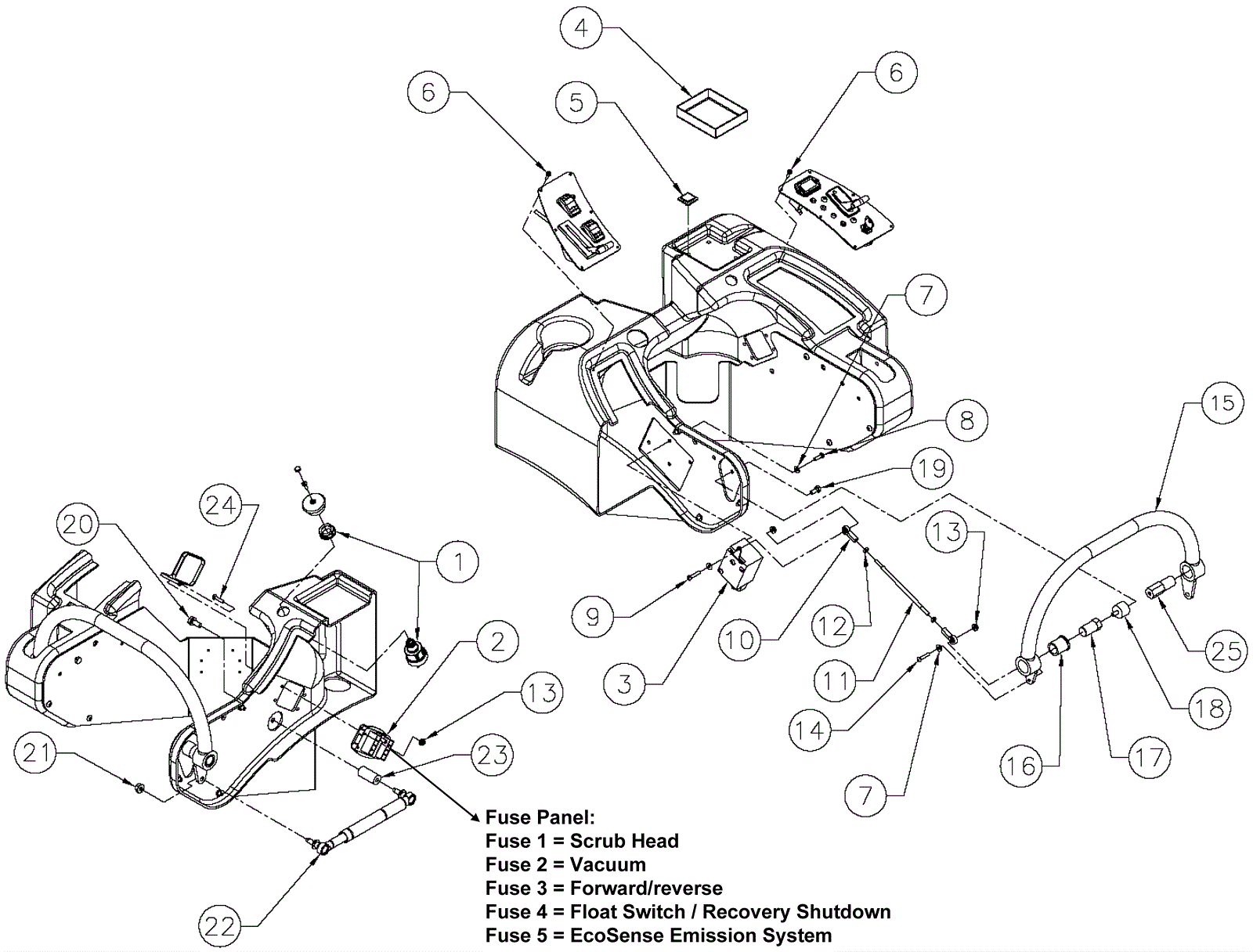

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
154-0771
|
Emergency stop switch |
1 |
|
|
2 |
154-0804
|
Terminal fuse block |
1 |
|
|
3 |
154-1341
|
Remote command module |
1 |
|
|
4 |
154-1342
|
Debris tray |
1 |
|
|
5 |
154-0127
|
Velcro stud |
4 |
|
|
6 |
154-1272
|
Screw 8 x 3/8 |
12 |
|
|
7 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
8 |
154-0800
|
Screw 10-24 x 5/8 button head stainless steel |
2 |
|
|
9 |
999-1547
|
Screw 10-24 x 7/8 button head socket stainless steel |
1 |
|
|
10 |
154-1343
|
Female rod end |
2 |
|
|
11a |
154-1344
|
Linkage rod |
1 |
(before SN 62234) |
|
11b |
154-1345
|
Linkage rod (OBSOLETE) |
1 |
(after SN 62419) |
|
12 |
999-0239
|
Nut 10-32 k-lock zinc plated |
2 |
|
|
13 |
154-0649
|
Nut 10-24 spin lock |
6 |
|
|
14 |
999-1547
|
Screw 10-24 x 7/8 button head socket stainless steel |
1 |
|
|
15 |
154-1346
|
Handle (OBSOLETE) |
1 |
|
|
16 |
154-1347
|
Flanged bearing |
2 |
|
|
17 |
154-1348
|
Pivot pin |
1 |
|
|
18 |
154-1349
|
Vibration mount |
1 |
|
|
19 |
999-0798
|
Bolt 1/4-20 x 1/2 flange grade 8.2 zinc plated |
2 |
|
|
20 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
1 |
|
|
21 |
999-0665
|
Nut M8-1.25 flange lock |
1 |
|
|
22 |
154-1350
|
Self-centering damper |
1 |
|
|
23 |
154-1351
|
Spacer |
1 |
|
|
24 |
999-1031
|
Screw 10-24 x 1 truss head phillips stainless steel |
4 |
|
|
25 |
154-1352
|
Pivot pin |
1 |
|
|
