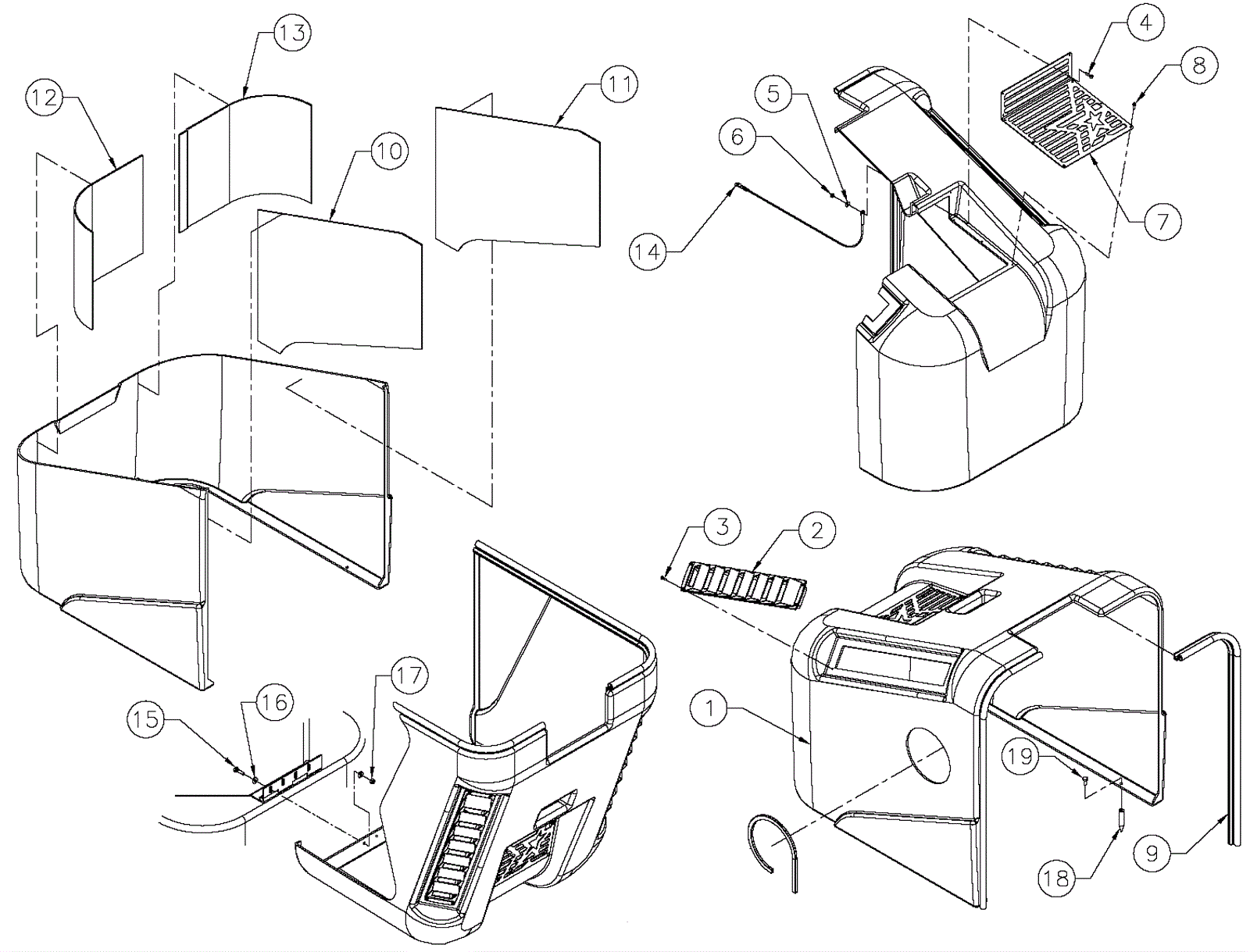

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
154-1297
|
Engine cover (OBSOLETE) |
1 |
|
|
2 |
154-1298
|
Louver (OBSOLETE) |
2 |
|
|
3 |
154-1299
|
Screw 8 x 3/4 countersunk (black) |
8 |
|
|
4 |
999-0697
|
Screw 8-32 x 3/4 pan head phillips stainless steel |
2 |
|
|
5 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
|
|
6 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
2 |
|
|
7 |
154-1300
|
Grill (OBSOLETE) |
1 |
|
|
8 |
154-1272
|
Screw 8 x 3/8 |
8 |
|
|
9 |
154-1301
|
Seal (OBSOLETE) |
2 |
|
|
10 |
154-1302
|
Left side insulation mat (OBSOLETE) |
1 |
|
|
11 |
154-1303
|
Right side insulation mat |
1 |
|
|
12 |
154-1304
|
Left side front insulation mat (OBSOLETE) |
1 |
|
|
13 |
154-1305
|
Right side front insulation mat (OBSOLETE) |
1 |
|
|
14 |
154-0816
|
Lanyard |
2 |
|
|
15 |
999-0197
|
Screw 1/4-20 x 1 socket head alloy plain finish |
4 |
|
|
16 |
999-0016
|
Washer 1/4 flat plain finish |
8 |
|
|
17 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
|
18 |
154-1306
|
Retainer pin |
2 |
|
|
19 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
