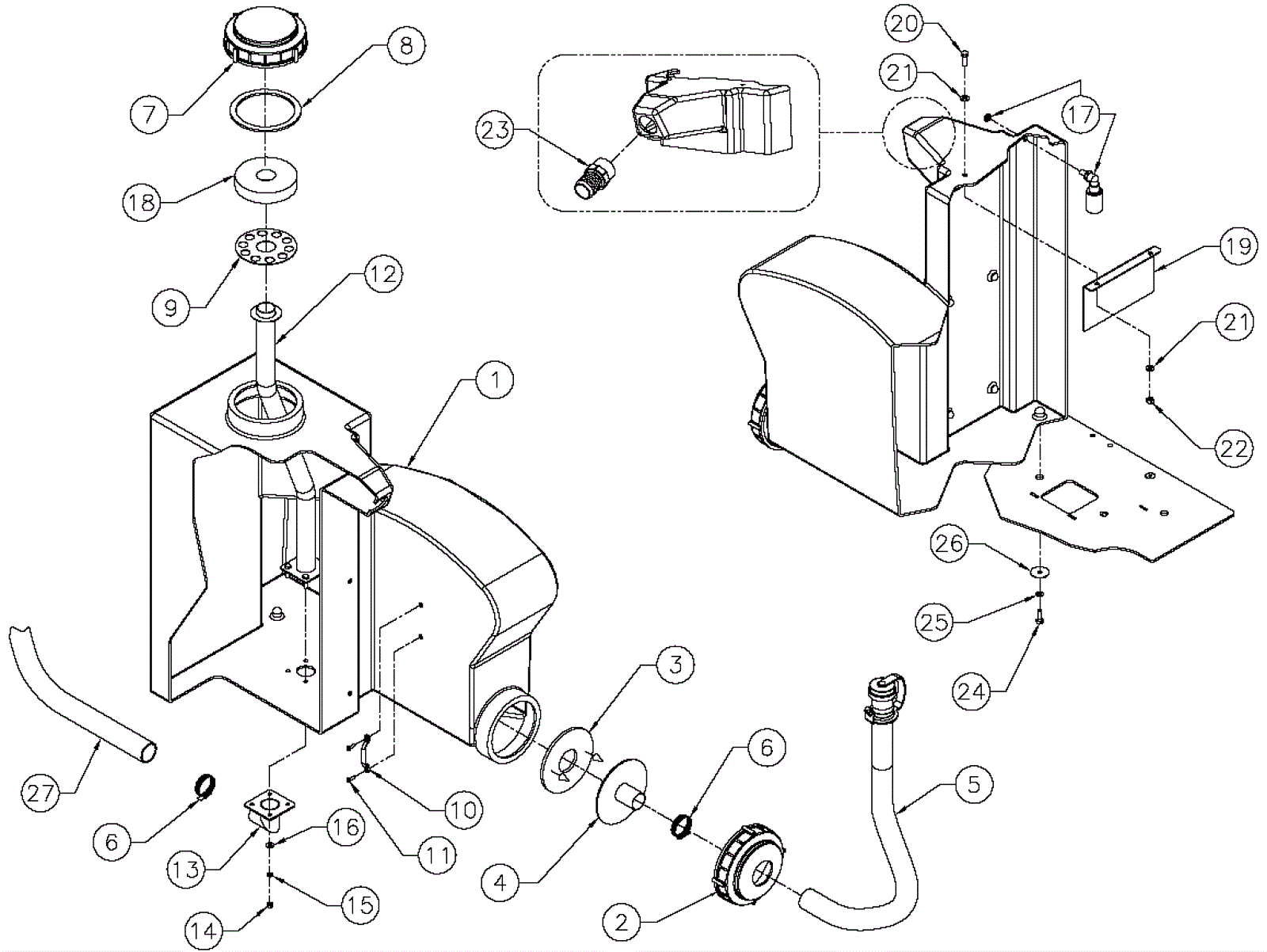

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
154-1285
|
Recovery tank (OBSOLETE) |
1 |
|
|
2 |
154-1286
|
Bottom recovery tank cap |
1 |
|
|
3 |
154-1287
|
Recovery tank lid gasket |
1 |
|
|
4 |
154-1288
|
Tube weldment |
1 |
|
|
5a |
154-2102
|
Drain hose (clear) |
1 |
(includes 5b) |
|
5b |
154-1278
|
Drain hose plug with strap |
1 |
|
|
6 |
154-1279
|
Clamp |
2 |
|
|
7 |
154-1289
|
Upper recovery tank cap (OBSOLETE) |
1 |
|
|
8 |
154-1275
|
Gasket |
1 |
|
|
9 |
154-3421
|
Diffusion filter plate (OBSOLETE) |
1 |
|
|
10 |
154-0328
|
Footman loop |
1 |
|
|
11 |
999-0709
|
Screw 10-24 x 3/4 oval head phillips |
2 |
|
|
12 |
154-1290
|
Vacuum tube weldment |
1 |
|
|
13 |
154-1291
|
Vacuum elbow weldment |
1 |
|
|
14 |
999-0609
|
Nut 1/4-20 hex stainless steel |
4 |
|
|
15 |
154-0600
|
Lock washer |
4 |
|
|
16 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
17 |
154-1292
|
Float switch assembly |
1 |
|
|
18 |
154-1293
|
Recovery tank filter (white) (OBSOLETE) |
1 |
|
|
19 |
154-1294
|
Bracket (OBSOLETE) |
1 |
|
|
20 |
999-0552
|
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
2 |
|
|
21 |
154-1295
|
Washer 5/16 bonded neoprene |
4 |
|
|
22 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
23 |
154-1277
|
Fitting (OBSOLETE) |
1 |
|
|
24 |
999-0130
|
Screw 5/16-18 x 3/4 socket head alloy plain finish |
4 |
|
|
25 |
999-0028
|
Washer 5/16 split lock plain finish |
4 |
|
|
26 |
154-1283
|
Washer 5/6 flat |
4 |
|
|
27 |
154-1296
|
Vacuum intake hose (OBSOLETE) |
1 |
|
|
