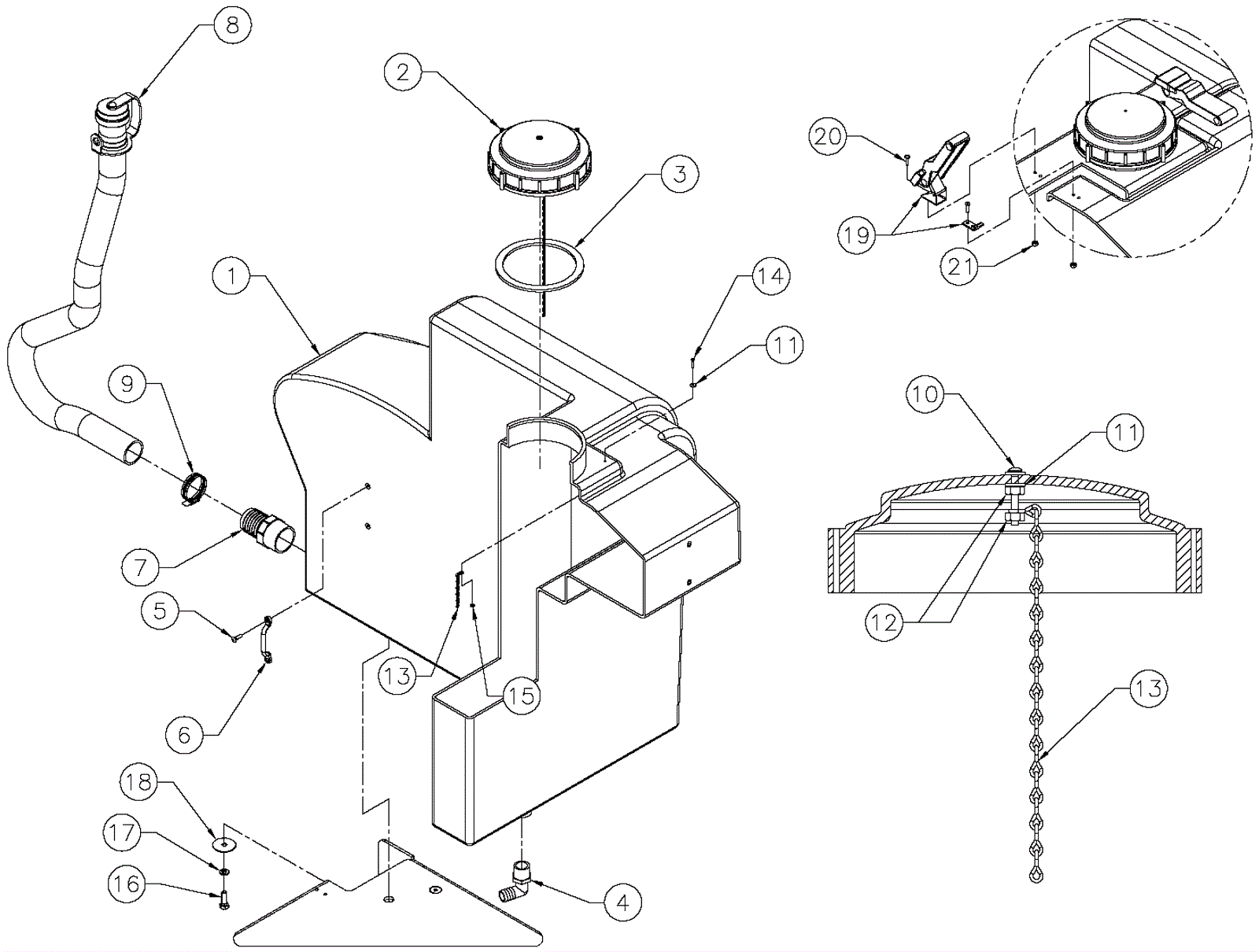

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(Solution tank) |
|
2 |
154-1274
|
Solution cap (OBSOLETE) |
1 |
|
|
3 |
154-1275
|
Gasket |
1 |
|
|
4 |
154-1276
|
Fitting (OBSOLETE) |
1 |
|
|
5 |
999-0709
|
Screw 10-24 x 3/4 oval head phillips |
2 |
|
|
6 |
154-0328
|
Footman loop |
1 |
|
|
7 |
154-1277
|
Fitting (OBSOLETE) |
1 |
|
|
8a |
154-2102
|
Drain hose (clear) |
1 |
(includes 8b) |
|
8b |
154-1278
|
Drain hose plug with strap |
1 |
|
|
9 |
154-1279
|
Clamp |
1 |
|
|
10 |
154-1280
|
Screw 6-32 x 1 stainless steel |
1 |
|
|
11 |
999-1158
|
Washer #6 flat stainless steel |
3 |
|
|
12 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
2 |
|
|
13 |
154-1281
|
#16 single jack chain stainless steel (sold by the inch) |
18 in |
|
|
14 |
154-1282
|
Screw 4-40 x 5/8 inch slotted |
1 |
|
|
15 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
1 |
|
|
16 |
999-0130
|
Screw 5/16-18 x 3/4 socket head alloy plain finish |
3 |
|
|
17 |
999-0028
|
Washer 5/16 split lock plain finish |
3 |
|
|
18 |
154-1283
|
Washer 5/6 flat |
3 |
|
|
19 |
154-1284
|
Draw latch |
2 |
|
|
20 |
999-0697
|
Screw 8-32 x 3/4 pan head phillips stainless steel |
8 |
|
|
21 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
8 |
|
|
