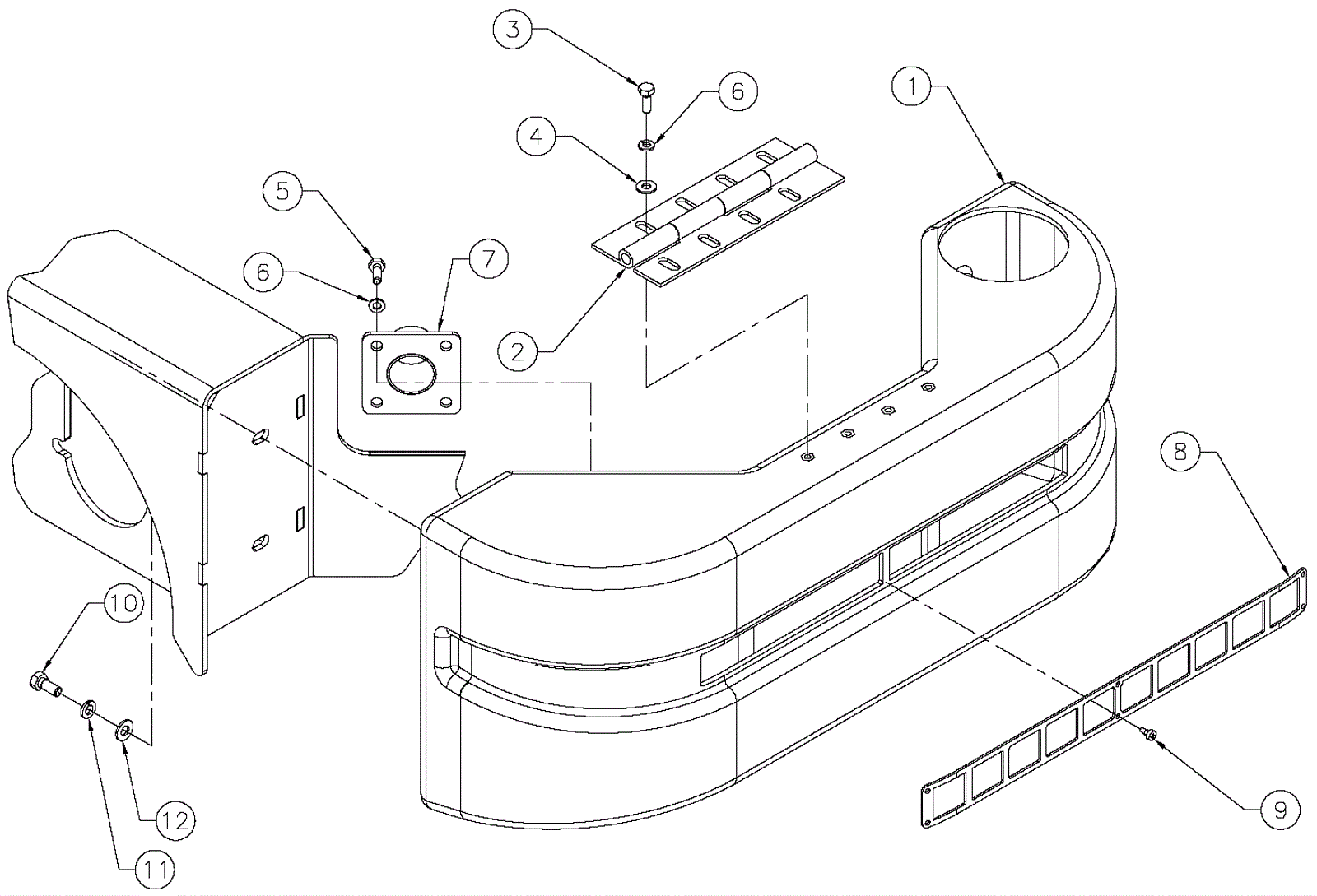

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
154-1268
|
Front bumper |
1 |
|
|
2 |
154-1269
|
Hinge (OBSOLETE) |
1 |
|
|
3 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
4 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
5 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
4 |
|
|
6 |
154-0600
|
Lock washer |
8 |
|
|
7 |
154-1270
|
Exhaust plate weldment |
1 |
|
|
8 |
154-1271
|
Bumper grill |
1 |
|
|
9 |
154-1272
|
Screw 8 x 3/8 |
6 |
|
|
10 |
999-0130
|
Screw 5/16-18 x 3/4 socket head alloy plain finish |
4 |
|
|
11 |
999-0028
|
Washer 5/16 split lock plain finish |
4 |
|
|
12 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
