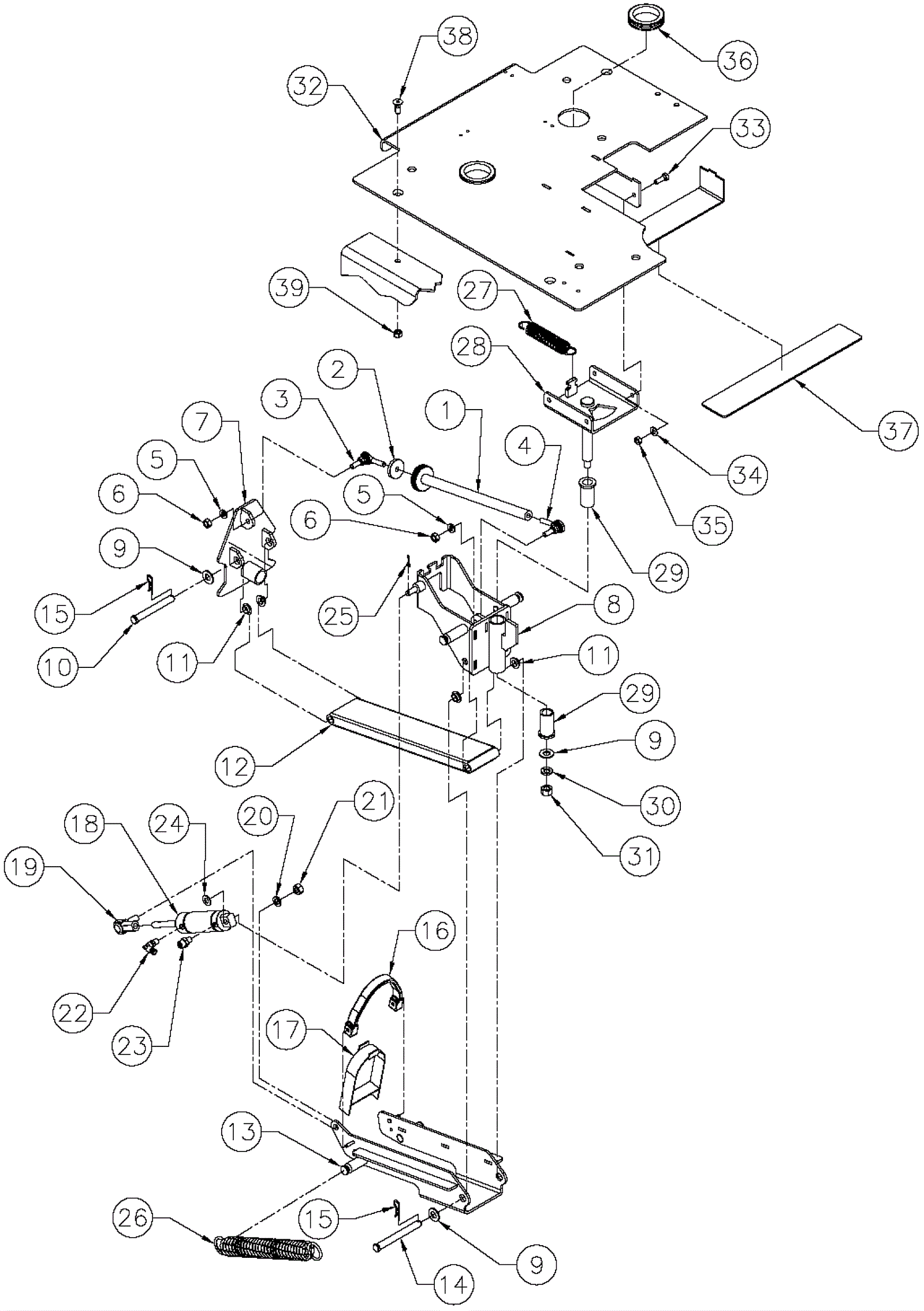

Squeegee Lift Assembly

#PartDescription ReqNotesAvailability
1 154-1231 Squeegee adjustment arm (OBSOLETE) 1
2 154-1232 Jam nut (OBSOLETE) 1
3 154-1230 Left side end rod 1
4 154-1208 Left side end rod with stud 1
5 154-0633 Lock washer 2
6 999-0143 Nut 3/8-24 hex plain finish 2
7 154-1233 Leveling plate 1
8 154-1234 Swivel weldment (OBSOLETE) 1
9 154-0972 Washer 1/2 flat narrow 3
10 154-1205 Clevis pin 1
11 154-1206 Flanged bushing 4
12 154-1235 Lifting arm (OBSOLETE) 1
13 154-1236 Lifting bracket (OBSOLETE) 1
14 154-1237 Clevis pin 1
15 154-1207 Cotter pin 2
16 154-1238 Tarp strap 1
17 154-1239 Down pressure bracket 1
18 154-1199 Actuator 1
19 154-1200 Right side female end rod with stud 1
20 999-0044 Washer 7/16 medium split lock 1
21 999-1435 Nut 7/16-20 hex stainless steel 1
22 154-1201 90 degree fitting 1
23a 154-1202 90 degree fitting 1 (before SN 62420)
23b 154-1240 Fitting 1 (after SN 62419)
24 999-1254 Washer 3/8 SAE flat zinc plated 1
25 170-3541 Cotter pin 1
26 154-1228 Extension spring (OBSOLETE) 2
27 154-1241 Extension spring 1
28 154-1242 Squeegee pivot weldment 1
29 154-1243 Flanged bushing 2
30 999-0126 Washer 1/2 split lock 1
31 999-0202 Nut 1/2-13 hex plain finish 1
32 154-1244 Rear frame weldment (OBSOLETE) 1
33 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 4
34 999-0024 Washer 5/16 flat stainless steel 4
35 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
36 154-1245 Grommet 2
37 154-1246 Stop pad 1
38 999-1548 Screw 3/8-16 x 1 flat head socket zinc plated 4
39 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
