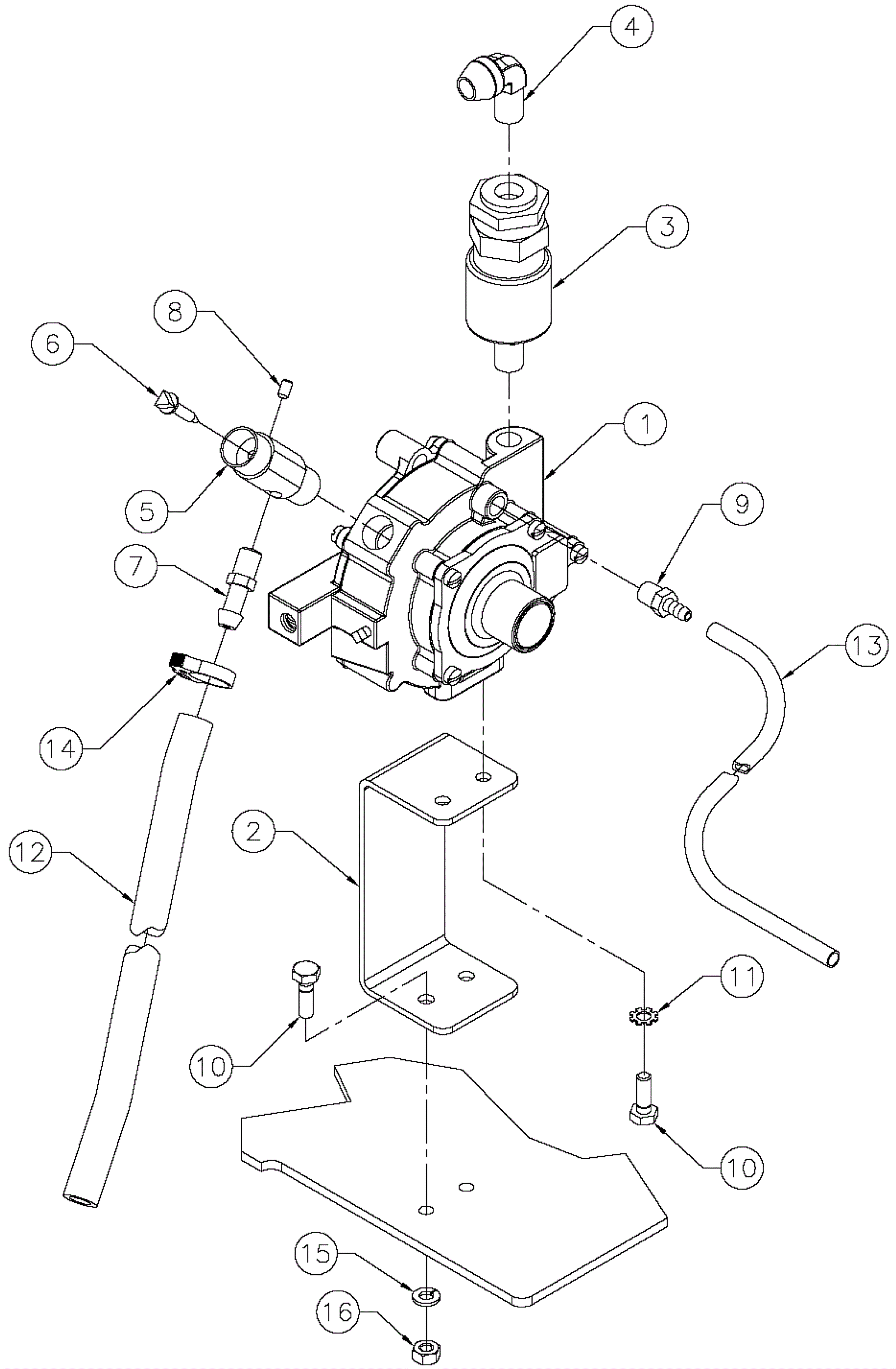

Regulator Assembly

#PartDescription ReqNotesAvailability
1 991-6001 Fuel regulator (T60) 1
2 154-1194 Bracket 1
3 991-6002 12V fuel lock off (Model 152) 1
4 154-0066 Fitting 49 x 6 (regulator to fuel lock) 1
5 154-0891 Fuel adjustment fitting 1
6 154-1195 Fuel adjustment screw 1
7 154-0352 Hosebarb 1/8 x 3/8 inch 1
8 154-1196 Screw 10-24 x 5/16 inch set nylon tip 1
9 154-0228 Hosebarb 1/8 x 1/4 inch 1
10 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
11 999-0238 Washer 1/4 internal star lock zinc plated 2
12 154-0320 Fuel line (sold by the foot) 3 ft
13 154-0351 Vacuum hose (sold by the foot) 3 ft
14 154-0036 Plastic hose clamp 1
15 154-0600 Lock washer 2
16 999-0609 Nut 1/4-20 hex stainless steel 2
