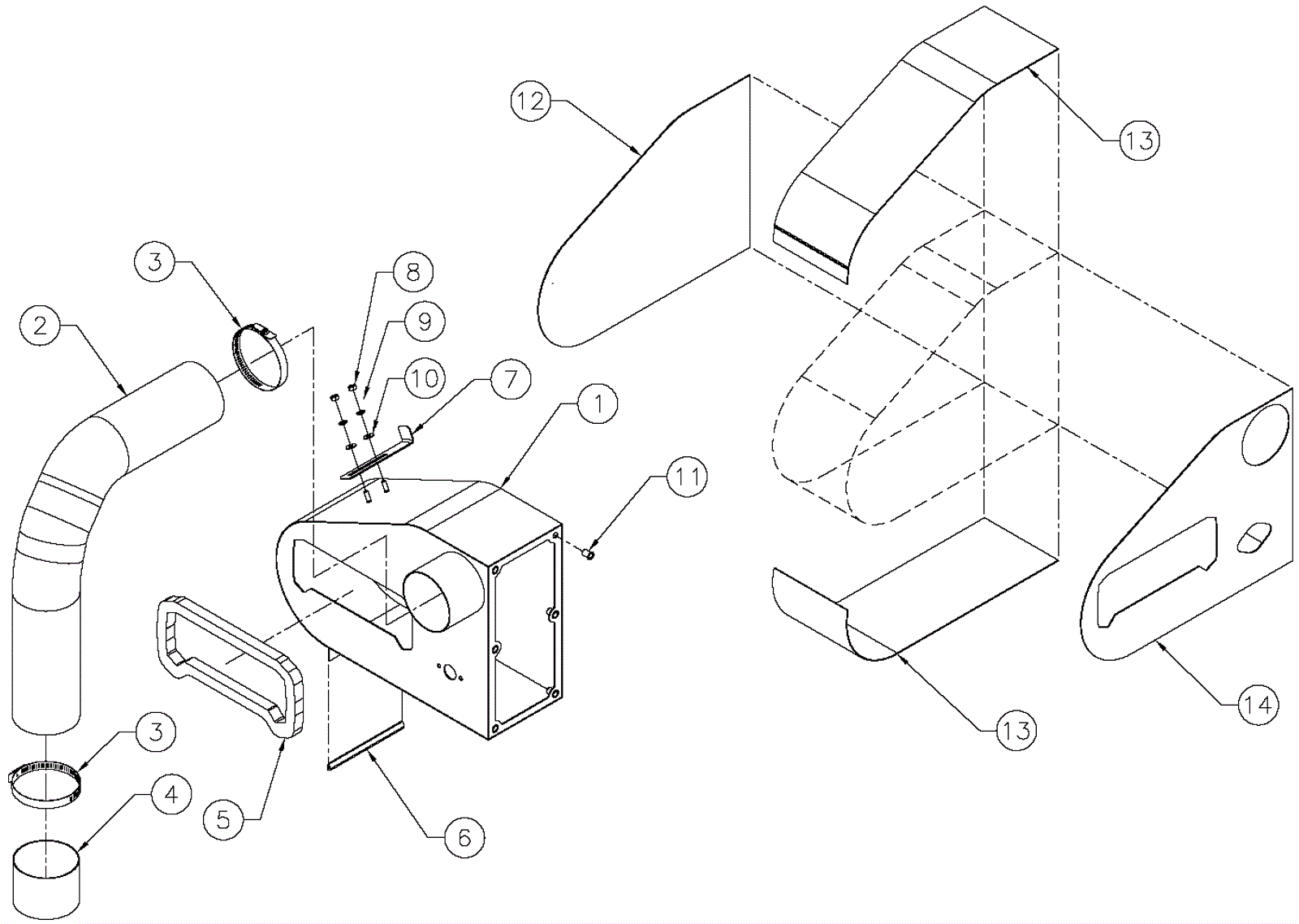

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
154-1185
|
Airbox weldment (OBSOLETE) |
1 |
|
|
2 |
154-1186
|
4 inch exhaust hose (OBSOLETE) |
1 |
|
|
3 |
154-1187
|
Hose clamp |
2 |
|
|
4 |
154-1188
|
Exhaust port tube (OBSOLETE) |
1 |
|
|
5 |
154-1189
|
Airbox gasket |
1 |
|
|
6 |
154-0466
|
Skirt edging (bottom) (sold by the foot) |
1 ft |
|
|
7 |
154-1190
|
Adjustment bracket (OBSOLETE) |
1 |
|
|
8 |
999-0609
|
Nut 1/4-20 hex stainless steel |
2 |
|
|
9 |
154-0600
|
Lock washer |
2 |
|
|
10 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
11 |
154-0783
|
Compression insert |
6 |
|
|
12 |
154-1191
|
Rear insulation mat (OBSOLETE) |
1 |
|
|
13 |
154-1192
|
Inner insulation mat (OBSOLETE) |
2 |
|
|
14 |
154-1193
|
Front insulation mat (OBSOLETE) |
1 |
|
|
