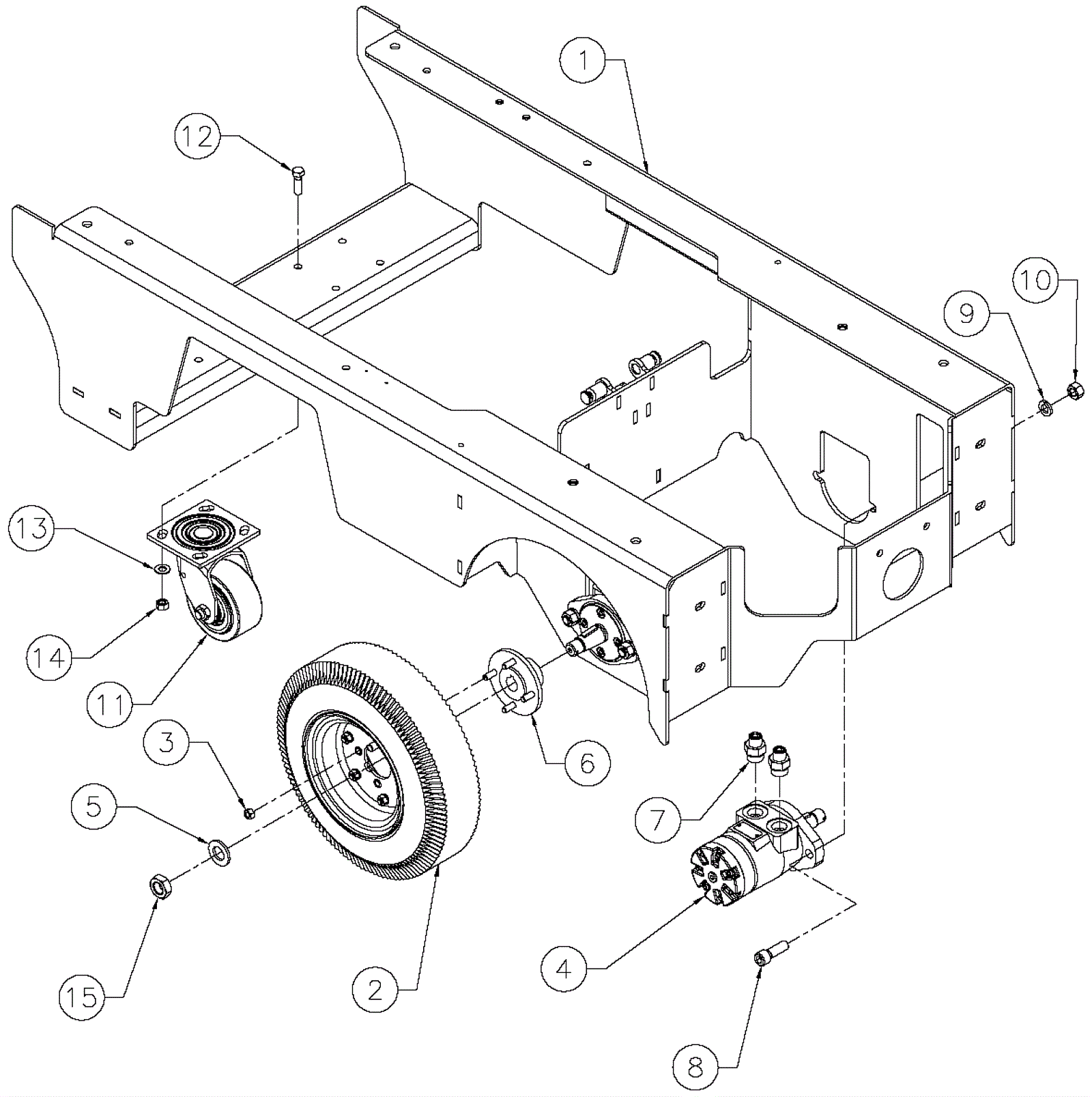

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
154-1129
|
Chassis weldment (OBSOLETE) |
1 |
|
|
2 |
154-1130
|
13 inch foam filled wheel (gray) (OBSOLETE) |
2 |
|
|
3 |
154-1131
|
Nut 5/16-24 un-locking cone |
8 |
|
|
4 |
154-1132
|
Hydraulic drive motor |
2 |
|
|
5 |
999-9114
|
Washer 3/4 flat stainless steel |
1 |
|
|
6 |
154-1133
|
Wheel hub weldment (OBSOLETE) |
2 |
|
|
7 |
154-1134
|
Fitting |
4 |
|
|
8 |
154-1135
|
Bolt 1/2-13 x 1 1/2 inch socket head |
4 |
|
|
9 |
999-0126
|
Washer 1/2 split lock |
4 |
|
|
10 |
154-1136
|
Plug (OBSOLETE) |
4 |
|
|
11 |
154-1137
|
4 inch caster wheel with seal (OBSOLETE) |
2 |
|
|
12 |
999-0649
|
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
8 |
|
|
13 |
999-0024
|
Washer 5/16 flat stainless steel |
8 |
|
|
14 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
8 |
|
|
15 |
999-0962
|
Nut 3/4-16 nylon insert lock zinc plated |
2 |
|
|
